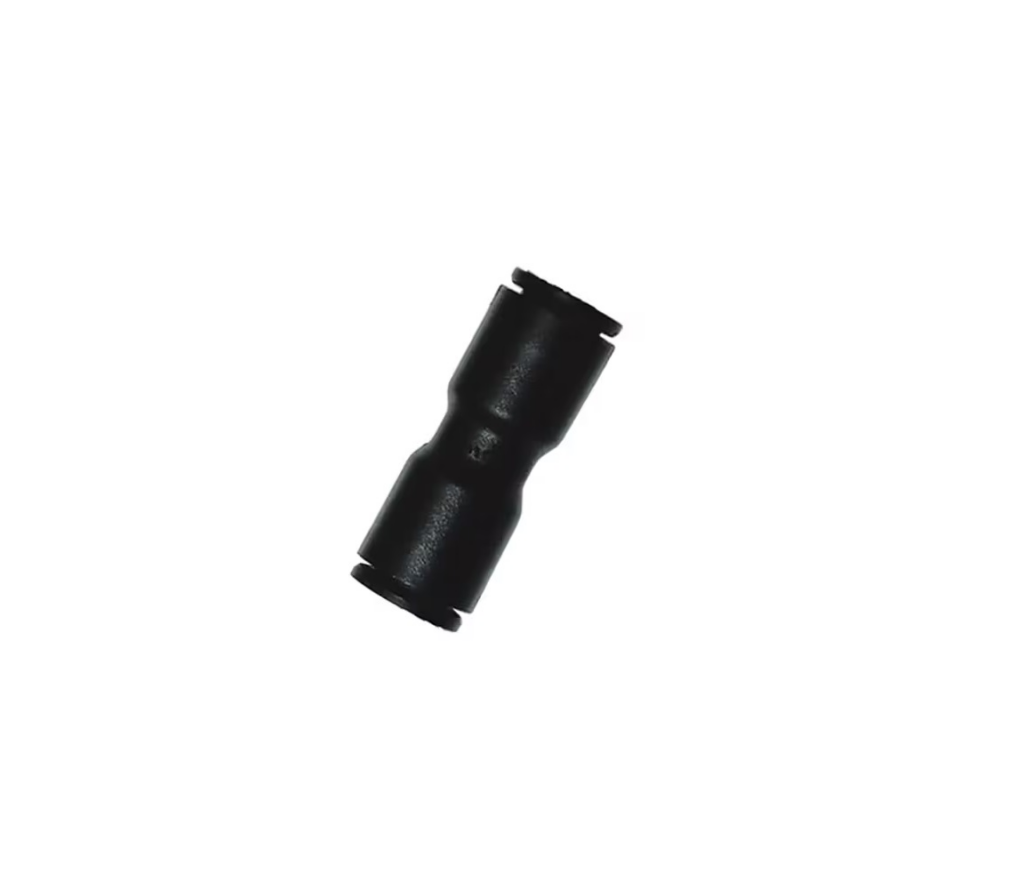

Parker Legris LF3000 8mm - 12mm Tube-to-Tube Connector
Overview
The Parker Legris LF3000 8mm–12mm tube-to-tube connector is a push-in fitting designed for reliable compressed air distribution in packaging and off-road machinery applications.
This straight connector simplifies pneumatic system assembly by eliminating the need for tools or threads. The technical polymer body houses a stainless steel gripping ring and NBR seal, delivering dependable performance across a wide operating temperature range of –20 °C to +80 °C. With a vacuum pressure rating of 755 mm-Hg, it handles low-pressure air systems efficiently whilst maintaining consistent seal integrity. The 8 mm inlet accommodates smaller supply tubing, whilst the 12 mm outlet allows connection to larger distribution lines, making it ideal for stepped-diameter configurations common in modular pneumatic layouts.
Supplied in convenient packs of ten, this connector is well-suited to industries including industrial automation, food and beverage processing, and instrument air systems where quick assembly and reliable tube connection are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.026 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | 12 mm Tube O.D. |
| Shape | Straight |
| Hex Type | n/a |
| Gripping Ring Material | Stainless Steel |
| Application | Pneumatics, Vacuum, Robotics, Automotive, Textile, Packaging |
| Connection 2 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
