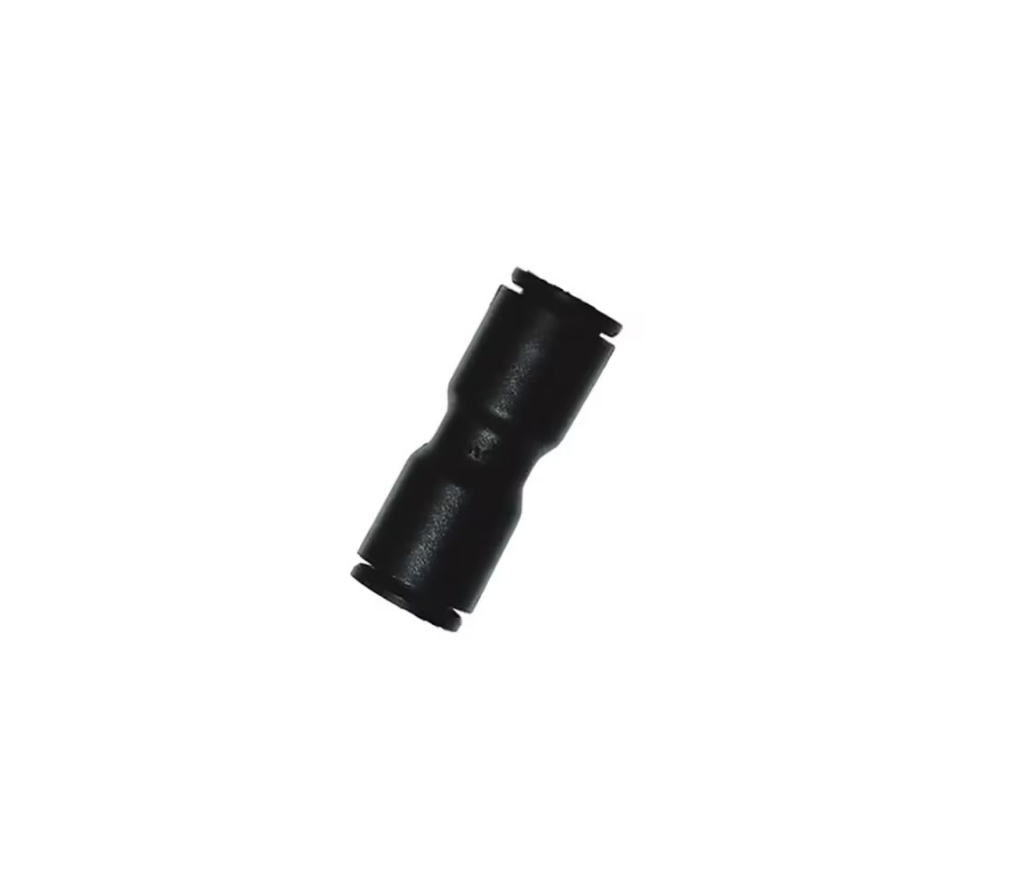

Parker Legris LF3000 6mm - 10mm Tube-to-Tube Connector
Overview
The Parker Legris LF3000 6mm–10mm Tube-to-Tube Connector is a straight push-in fitting designed for compressed air and vacuum applications in off-road machinery and low-pressure pneumatic systems.
This connector simplifies installation by eliminating the need for tools or adjustable wrenches, making it ideal for systems requiring frequent assembly and disassembly. The stainless steel gripping ring and technical polymer body provide reliable performance across a broad temperature range from −20 °C to 80 °C, whilst the NBR seal ensures consistent, leak-free operation in both compressed air and vacuum environments down to 755 mm-Hg. The stepped design accommodates tubes with outer diameters of 6mm and 10mm, offering flexibility in mixed-diameter pneumatic networks.
Supplied in boxes of ten, these lightweight fittings are widely used across industrial automation, food and beverage processing, and instrument air systems where simplicity and dependability are paramount.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.007 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | 10 mm Tube O.D. |
| Shape | Straight |
| Gripping Ring Material | Stainless Steel |
| Application | Textile, Robotics, Automotive, Pneumatics, Packaging, Vacuum |
| Connection 2 Type | Tube |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | n/a |
