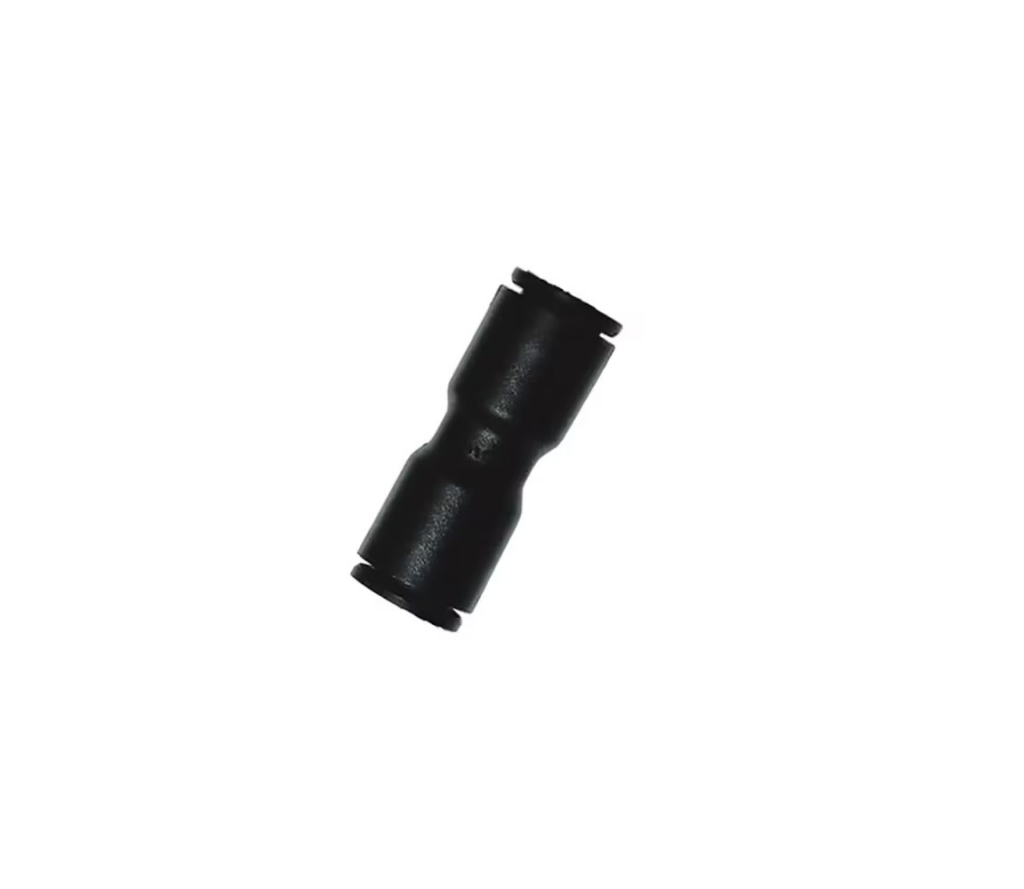

Parker Legris LF3000 6mm - 8mm Tube-to-Tube Connector
Parker Legris LF3000 straight, 6 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm–8mm Tube-to-Tube Connector is a push-in fitting designed for straightforward connections in compressed air and low-pressure pneumatic systems.
This straight connector simplifies assembly and maintenance in applications where reliable tubing joins are essential. The push-to-connect design eliminates the need for tools, reducing installation time and minimising the risk of leaks at connection points. Its technical polymer body with stainless steel gripping ring provides durability whilst remaining lightweight, making it ideal for both fixed installations and portable equipment.
Rated for operating temperatures between -20°C and 80°C with a vacuum rating of 755 mm-Hg, the fitting accommodates 6 mm and 8 mm outer diameter tubing and features an NBR seal for consistent performance across varying conditions. Supplied in boxes of ten, it offers convenient stock replenishment for maintenance departments.
This connector serves off-road machinery, industrial automation, and process control applications across Europe.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 8 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Packaging, Textile, Robotics, Automotive, Vacuum, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.005 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.18 |
