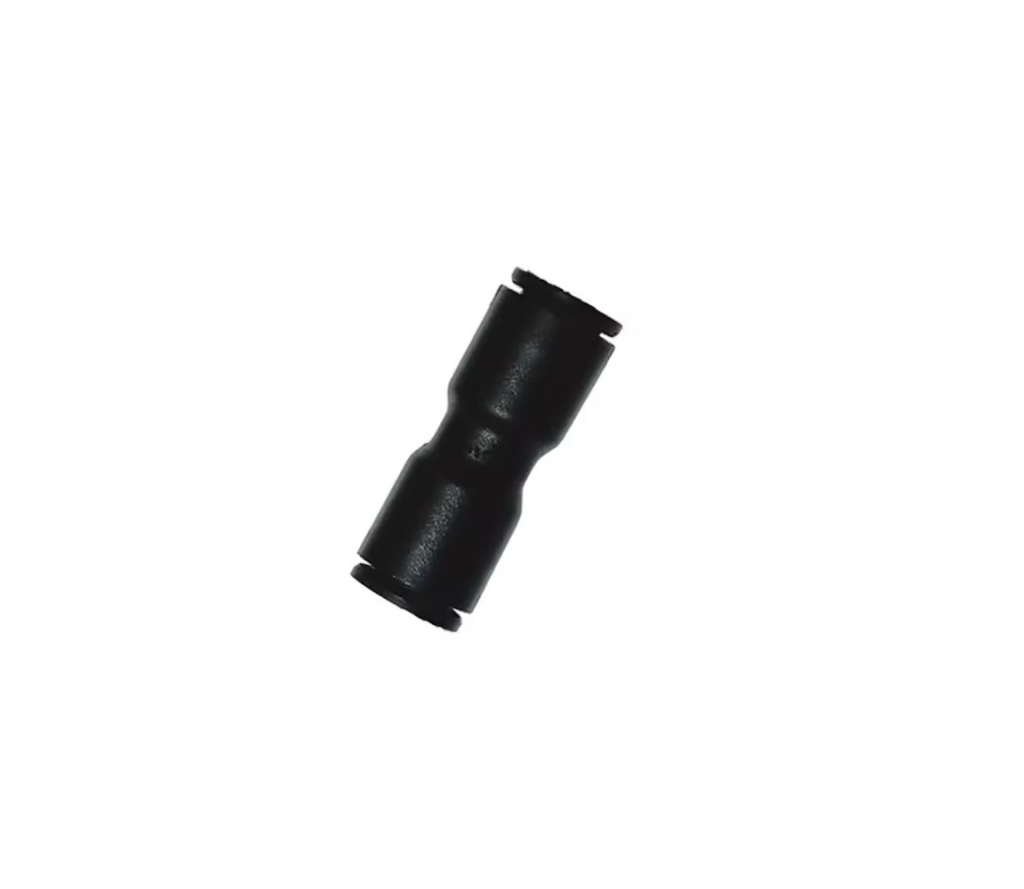

Parker Legris LF3000 12mm - 14mm Tube-to-Tube Connector
Parker Legris LF3000 straight, 12 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 is a straight tube-to-tube connector designed to join 12mm and 14mm outer diameter tubing in pneumatic and low-pressure fluid applications.
This push-in fitting offers reliable, leak-free connections without tools or threads, making it ideal for rapid assembly and reconfiguration in modular pneumatic systems. The stainless steel gripping ring secures tubing firmly whilst the technical polymer body with NBR seal ensures durability across a wide operating range from –20°C to 80°C. Rated for 755mm-Hg vacuum pressure, the connector handles standard compressed air applications with confidence and minimal maintenance requirements.
Supplied in boxes of 10 units, this fitting serves transportation, industrial automation, food and beverage processing, and instrument air systems where straightforward, dependable connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 14 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Packaging, Textile, Automotive, Robotics, Vacuum, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.026 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.18 |
