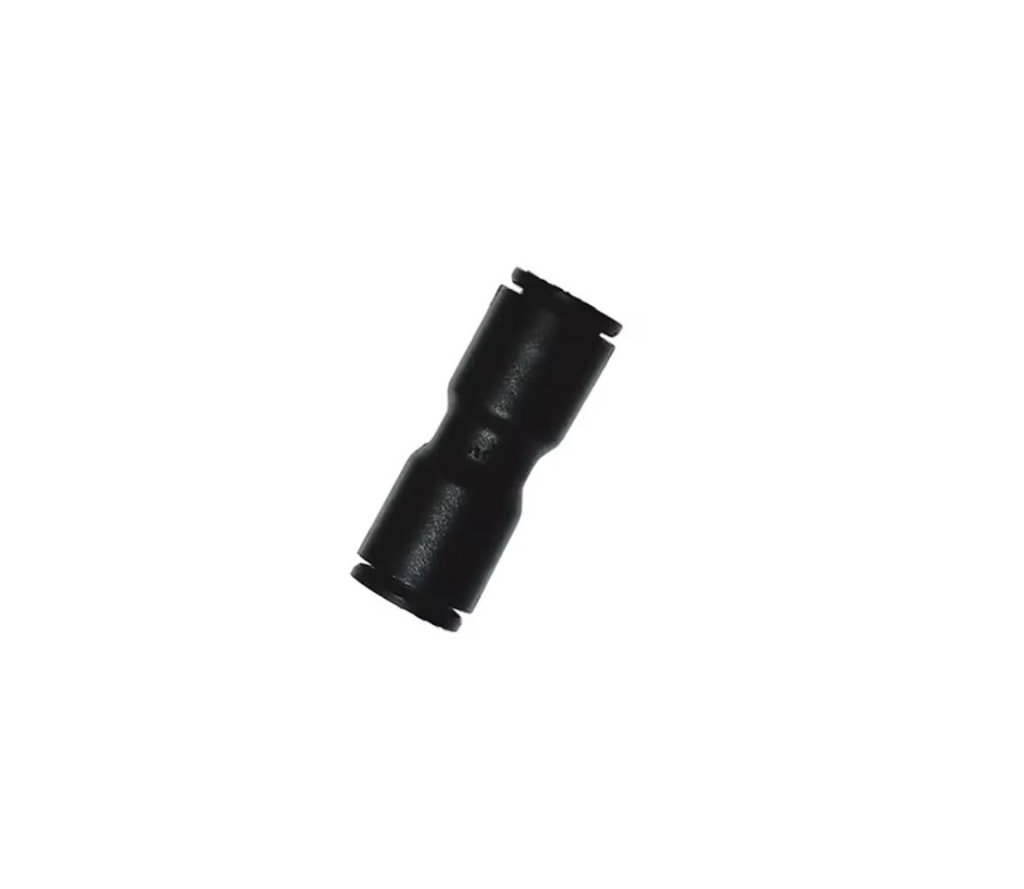

Parker Legris LF3000 8mm - 8mm Tube-to-Tube Connector
Parker Legris LF3000 straight, 8 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm Tube-to-Tube Connector is a straight push-in fitting designed for compressed air applications in pneumatic systems.
This connector excels in rapid assembly and disassembly of low-pressure fluid and gas lines without tools or special equipment. The stainless steel gripping ring and technical polymer body provide reliable performance across demanding environments, whilst the NBR seal ensures effective gas containment. With an operating temperature range of −20 °C to 80 °C and a vacuum rating of 755 mm-Hg, it delivers consistent performance in both standard and harsh conditions. The 8 mm outer diameter tube connections on both ports offer straightforward integration into existing pneumatic networks.
Widely used across off-road machinery, industrial automation, and process control applications where dependable, tool-free connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 8 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Vacuum, Packaging, Automotive, Textile, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.004 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.18 |
