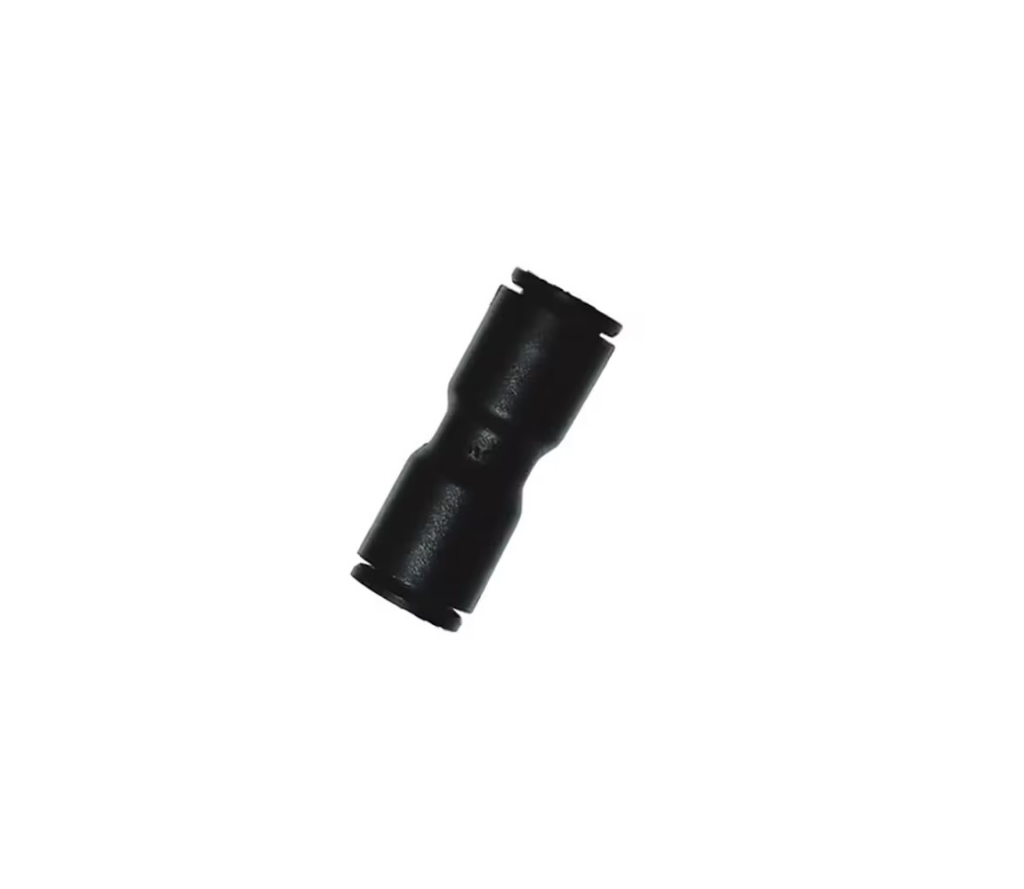

Parker Legris LF3000 16mm - 16mm Tube-to-Tube Connector
Overview
The Parker Legris LF3000 is a 16mm straight tube-to-tube connector designed for pneumatic and low-pressure fluid applications in automotive systems and transportation equipment.
This push-in fitting offers reliable, tool-free assembly and disassembly, making it ideal for applications requiring frequent maintenance or reconfiguration. The connector suits compressed air, inert gases, and compatible fluids across a working temperature range of −20 °C to +80 °C, with a vacuum rating of 755 mm-Hg. Constructed from technical polymer with a stainless steel gripping ring and NBR seals, the fitting delivers durable performance in demanding mobile and stationary pneumatic systems whilst remaining lightweight at just 41 grammes.
Supplied in boxes of five units, this connector serves automotive, industrial automation, and process control applications where space efficiency and installation speed are valued.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.041 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 5 |
| Configuration | Tube to Tube |
| Connection 1 Size | 16 mm Tube O.D. |
| Connection 2 Size | 16 mm Tube O.D. |
| Shape | Straight |
| Application | Vacuum, Robotics, Textile, Packaging, Pneumatics, Automotive |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | n/a |
| Connection 1 Type | Tube |
| Connection 2 Type | Tube |
| Gripping Ring Material | Stainless Steel |
