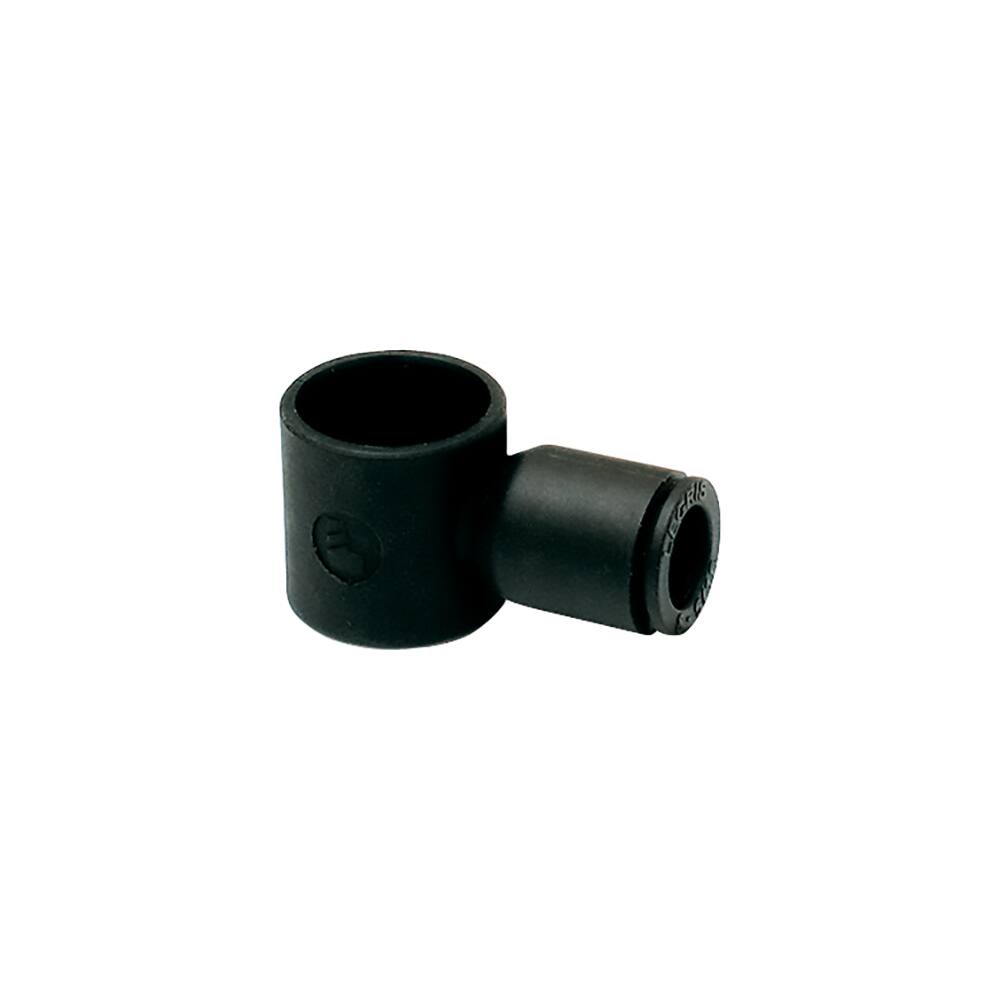

Parker Legris LF3000 12mm - 3/8''Bspp Single Banjo
Parker Legris LF3000 elbow 90°, 12 mm tube to G 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm to 3/8" BSPP single banjo fitting is a push-to-connect pneumatic connector designed for compressed air applications in automotive and electronics manufacturing.
This banjo-style elbow delivers reliable performance in low-pressure pneumatic systems where space constraints and quick assembly are priorities. The 90-degree configuration makes it ideal for routing air lines around tight spaces, whilst the push-in connection technology eliminates the need for tools or adapters. Built from technical polymer body material with a stainless steel gripping ring and NBR seal, the fitting handles operating temperatures from -20°C to +80°C and maintains a vacuum rating of 755 mm-Hg, making it suitable for both positive pressure and partial vacuum applications.
The 12mm outer diameter tube connection pairs with a G 3/8 BSPP thread port, offering versatile integration into existing pneumatic infrastructure. Each box contains ten units, supporting efficient stock management and bulk installation projects.
This connector serves industrial automation, process control, and instrument air systems across manufacturing and automotive sectors.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | G 3/8 inch Thread |
| Body Material | Brass, Nickel-plated, Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Textile, Packaging, Pneumatics, Vacuum, Robotics, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.011 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
