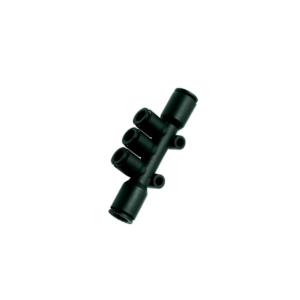

Parker Legris LF3000 10mm - 6mm Multiple Tee
Parker Legris LF3000 union tee, 10 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 10mm–6mm multiple tee is a push-to-connect pneumatic fitting designed for packaging machinery and low-pressure fluid distribution systems.
This union tee configuration enables straightforward connection of compressed air lines with minimal installation time. The fitting accommodates a 10 mm main inlet tube and two 6 mm outlet tubes, making it ideal for applications requiring air distribution across multiple circuits without additional manifold hardware. Constructed from durable technical polymer with NBR seals and a stainless steel gripping ring, the fitting operates reliably across a temperature range of –20 °C to +80 °C and achieves a vacuum rating of 755 mm-Hg, ensuring secure performance in both positive and negative pressure environments.
The LF3000 series' tube-to-tube connection system eliminates threaded assembly, reducing leak points and installation labour on production lines. Supplied in boxes of ten units, this fitting serves transportation, packaging automation, and general pneumatic control systems across European manufacturing and process industries.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Union Tee |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 6 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Pneumatics, Automotive, Robotics, Textile, Vacuum, Packaging |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.019 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.19 |
