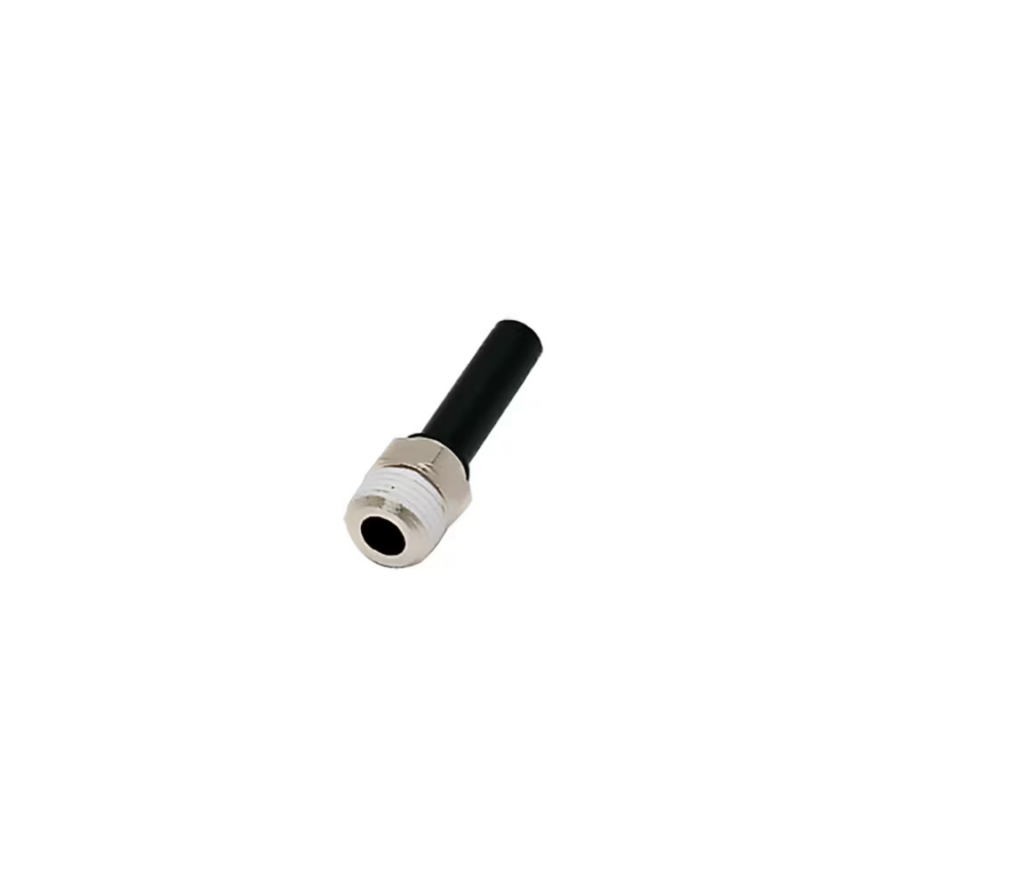

Parker Legris LF3000 12mm - 1/2"Bspt Male Stud Standpipe
Parker Legris LF3000 straight, 12 mm tube to R 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm to 1/2" BSPT Male Stud Standpipe is a push-to-connect fitting designed for vacuum and low-pressure pneumatic applications.
This plug-in fitting excels in systems requiring reliable, leak-free connections without tools or fittings expertise. The technical polymer body combined with a stainless steel gripping ring delivers robust performance across demanding environments, whilst the NBR seal ensures compatibility with various gases and fluids. Rated for vacuum pressures down to 755 mm-Hg and operating temperatures from –20 °C to 80 °C, it suits both continuous and intermittent service in process control and instrumentation lines.
The 12mm tube stem mates directly with the R 1/2 male BSPT port, providing a compact, secure connection ideal for space-constrained installations. Its straight configuration and 21mm hexagon metric design facilitate straightforward installation and maintenance on existing manifold systems.
Supplied in boxes of ten, this fitting serves the semiconductor, pharmaceutical, and general industrial automation sectors where precision fluid and gas handling is paramount.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/2 inch Thread |
| Hex Size | 21 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Pneumatics, Automotive, Packaging, Textile, Robotics, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.030 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Distribution Catalogue (Europe), p.20 |
