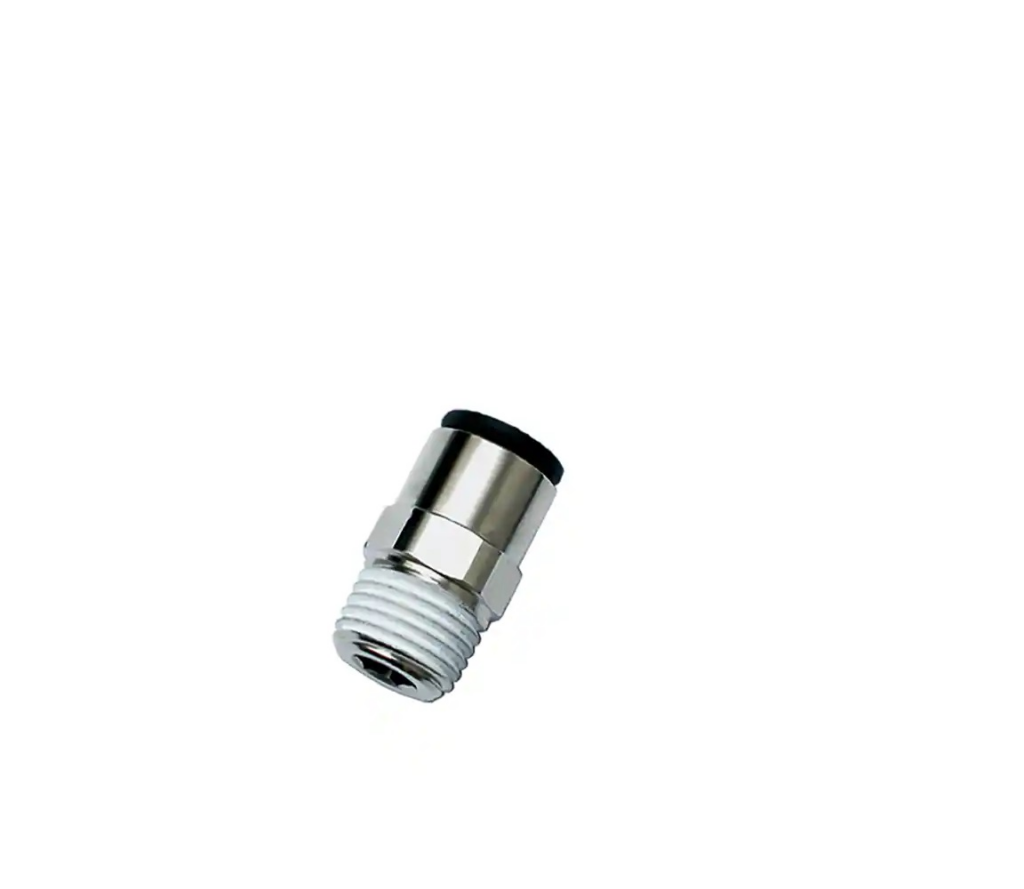

Parker Legris LF3000 14mm - 1/2"Bspt Male Stud Fitting
Parker Legris LF3000 straight, 14 mm tube to R 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 14mm to 1/2" BSPT male stud fitting is a push-to-connect pneumatic connector designed for direct tube-to-port applications in low-pressure fluid and gas systems.
This straight fitting excels in applications requiring quick, tool-free connections without sacrificing reliability. The stainless steel gripping ring securely holds 14mm outer diameter tubing whilst the nickel-plated brass body with NBR seal ensures dependable performance across a wide operating range from −20 °C to +80 °C. The R 1/2 BSPT male thread accommodates standard industrial manifold ports, whilst the 24mm hexagon metric design simplifies installation and removal on equipment. With a vacuum rating of 755 mm-Hg, this fitting handles both pressurised and evacuated applications typical of instrument air and pneumatic control circuits.
Supplied in boxes of ten, this robust connector serves chemical processing, industrial automation, and process control sectors where fast assembly and leak-free operation are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 14 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/2 inch Thread |
| Hex Size | 24 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Textile, Packaging, Automotive, Robotics, Vacuum, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.047 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.14 |
