R65,86Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · 10 available · ships from Johannesburg
Maximum Operating Pressure
20 bar (usable from vacuum to 20 bar)
Connection 2 Type
Female, BSPP
Connection 1 Type
Tube

Overview

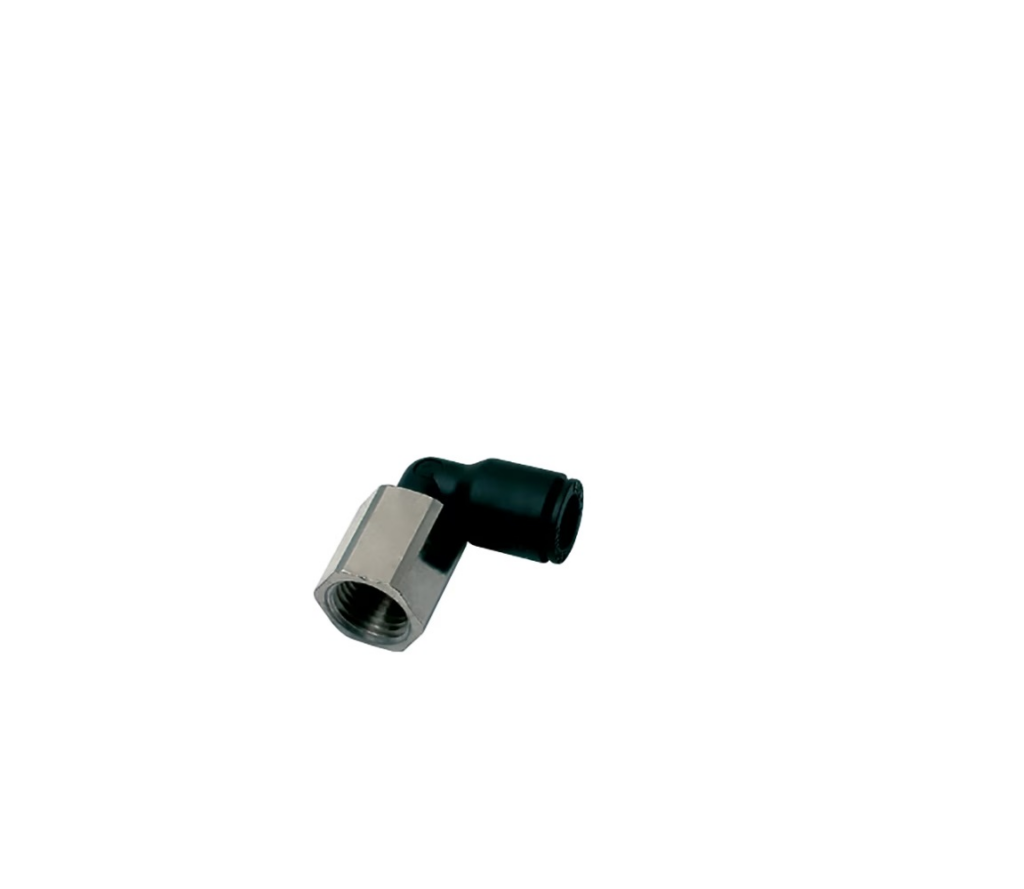

Parker Legris LF3000 4mm - 1/8"Bspp Female Stud Elbow (part number 31920410) is a Parker Legris LF3000 push-in fitting for low-pressure pneumatics: a technical polymer body with a stainless steel gripping ring and NBR seal, rated from vacuum (755 mm Hg) to 20 bar and -20 °C to +80 °C on compressed air. Tube is pushed straight into the collet and released by pressing the button — no tools, and the connection can be remade repeatedly.

The 90° elbow turns the tube run through a right angle at the port, so tubing can leave a valve, cylinder or manifold sideways where there is no room for a straight run. Connections: 4 mm tube, G 1/8 BSPP parallel thread with an NBR sealing washer, 13 mm hex.

Typical applications: pneumatic circuits on packaging, textile and automotive machinery, robotics and vacuum handling. Use with calibrated polyamide, polyurethane or PTFE tubing; for fluids other than compressed air, consult us. Conforms to ISO 14743, PED, RoHS and REACH; silicone-free. Supplied in boxes of 10.

Genuine Parker Legris product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions and full technical data are in the attached LF3000 catalogue extract.

Source: www.parker.com ↗

Specifications

Product Series LF 3000®
Product Type Pneumatic Push-In Fittings - LF 3000®
Shape Elbow 90°
Configuration Tube to Port
Connection 1 Type Tube
Connection 1 Size 4 mm Tube O.D.
Connection 2 Type Female, BSPP
Connection 2 Size G 1/8 inch Thread
Hex Size 13
Hex Type Hexagon Metric
Body Material Technical Polymer
Seal Material NBR
Gripping Ring Material Stainless Steel
Maximum Operating Pressure 20 bar (usable from vacuum to 20 bar)
Vacuum Pressure Rating 755 mm-Hg
Temperature Range -20°C to +80°C
For Fluid Type Other Fluids: Please Consult Us, Air (Compressed Air)
Application Robotics, Textile, Automotive, Pneumatics, Vacuum, Packaging
Specifications Met ISO 14743, PED, RoHS, REACH
Weight 0.010 kg
Quantity per Box 10
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.16
