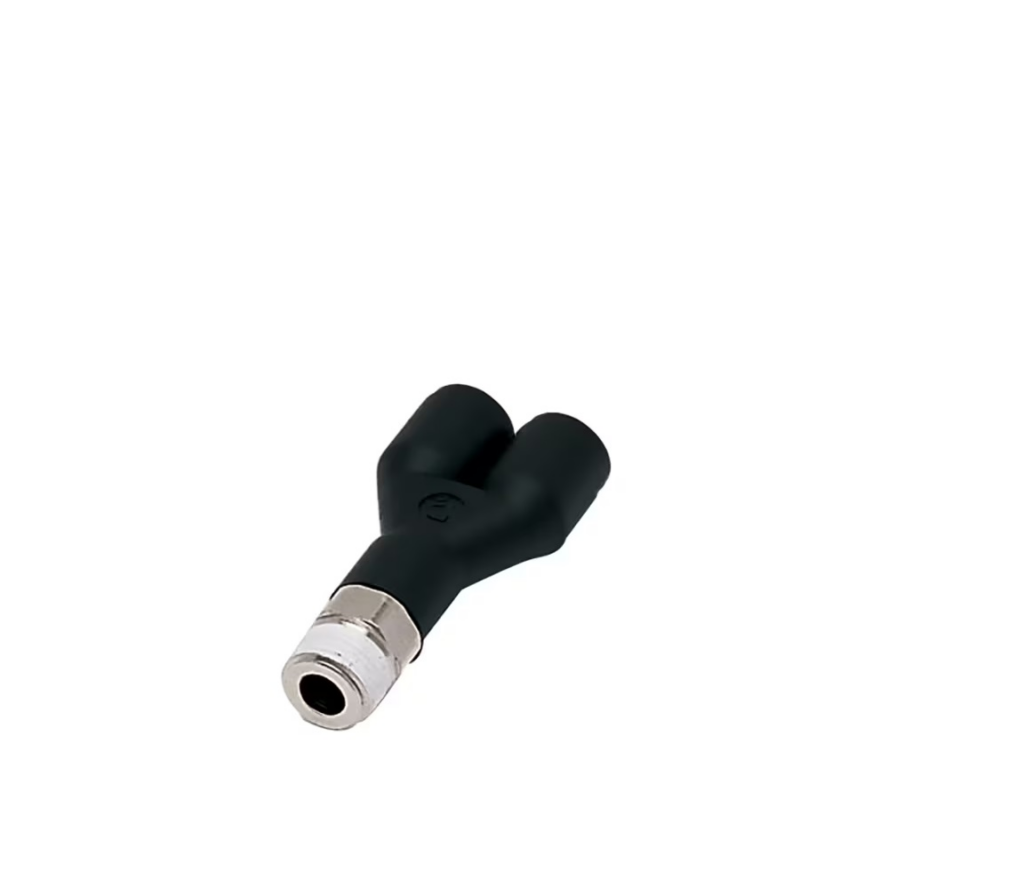

Parker Legris LF3000 4mm - 1/8"Bspt Male Y Piece
Parker Legris LF3000 wye, 4 mm tube to R 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 4mm – 1/8" BSPT Male Y Piece is a push-to-connect pneumatic fitting designed for branching applications in low-pressure fluid and gas systems.
This wye-configuration connector excels in off-road machinery and mobile equipment where space is limited and quick assembly is essential. The technical polymer body with stainless steel gripping ring combines durability with corrosion resistance, whilst the NBR seal ensures reliable performance across a -20°C to +80°C operating window. Connection to tubing (4 mm O.D.) is instantaneous via the push-in mechanism, and the 1/8" BSPT male port threads directly onto manifold blocks or valve stations without tools. The fitting accommodates vacuum ratings down to 755 mm-Hg and suits general pneumatic circuits handling instrument air and compatible low-pressure fluids.
Supplied in boxes of ten, these compact fittings (10 mm hex size) are widely specified across agricultural machinery, construction equipment, and industrial automation where reliable, field-serviceable air distribution is required.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Wye |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/8 inch Thread |
| Hex Size | 10 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Robotics, Vacuum, Textile, Packaging, Automotive, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.009 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.17 |
