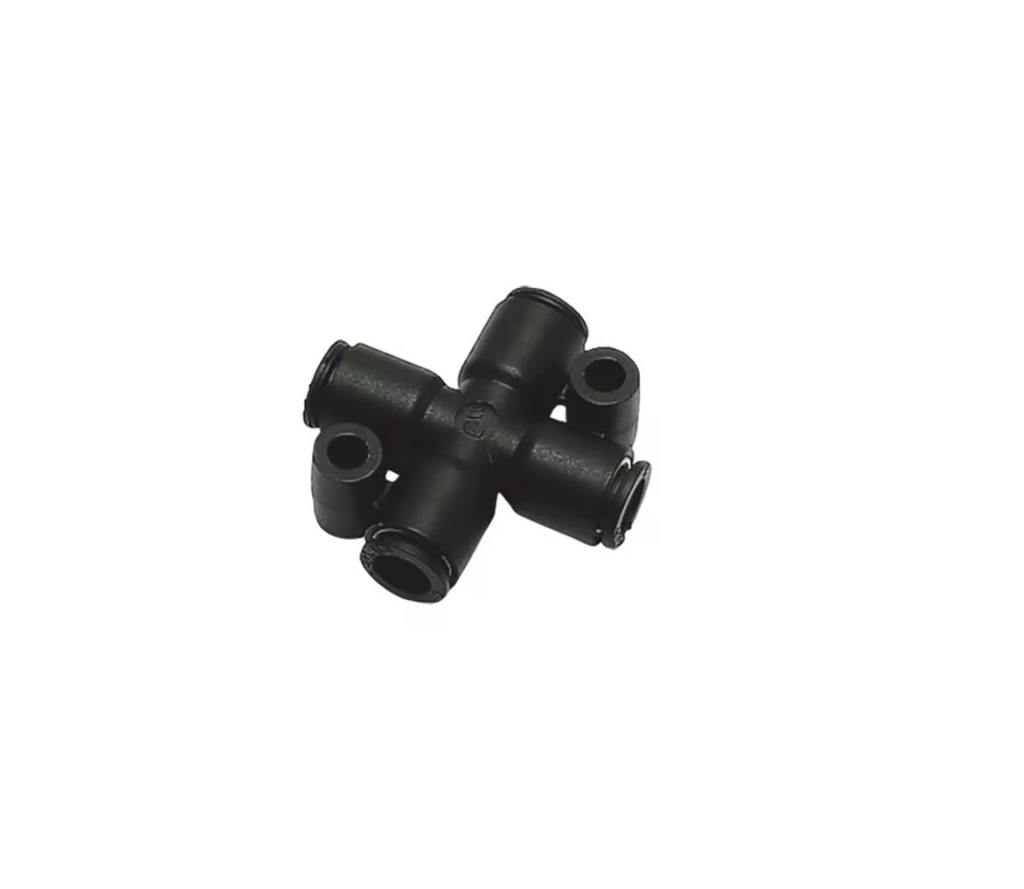

Parker Legris LF3000 4mm-6mm Tube to Tube Unequal Cross
Overview
The Parker Legris LF3000 4mm-6mm Tube to Tube Unequal Cross is a push-in pneumatic fitting designed for textile machinery and low-pressure fluid distribution systems.
This unequal cross connector enables simple, tool-free assembly in compressed air and inert gas applications where space or tubing sizes vary. The fitting accommodates 4 mm and 6 mm outer diameter tubing simultaneously, making it ideal for branching circuits or reconfiguring system layouts without costly rework. Constructed from durable technical polymer with a stainless steel gripping ring and NBR seals, the LF3000 series delivers reliable performance across a -20 °C to +80 °C operating range, achieving a vacuum rating of 755 mm-Hg and eliminating the need for threaded connections in low-pressure environments.
The compact design and push-to-connect mechanism reduce installation time whilst maintaining system integrity through secure tube engagement. Supplied in boxes of 10, this fitting serves off-road machinery, process automation, and industrial pneumatic systems where straightforward, leak-free connections are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.010 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | 6 mm Tube O.D. |
| Shape | Cross |
| Application | Vacuum, Pneumatics, Packaging, Robotics, Automotive, Textile |
| Connection 2 Type | Tube |
| Connection 1 Type | Tube |
| Hex Type | n/a |
| Gripping Ring Material | Stainless Steel |
| Vacuum Pressure Rating | 755 mm-Hg |
Documents
