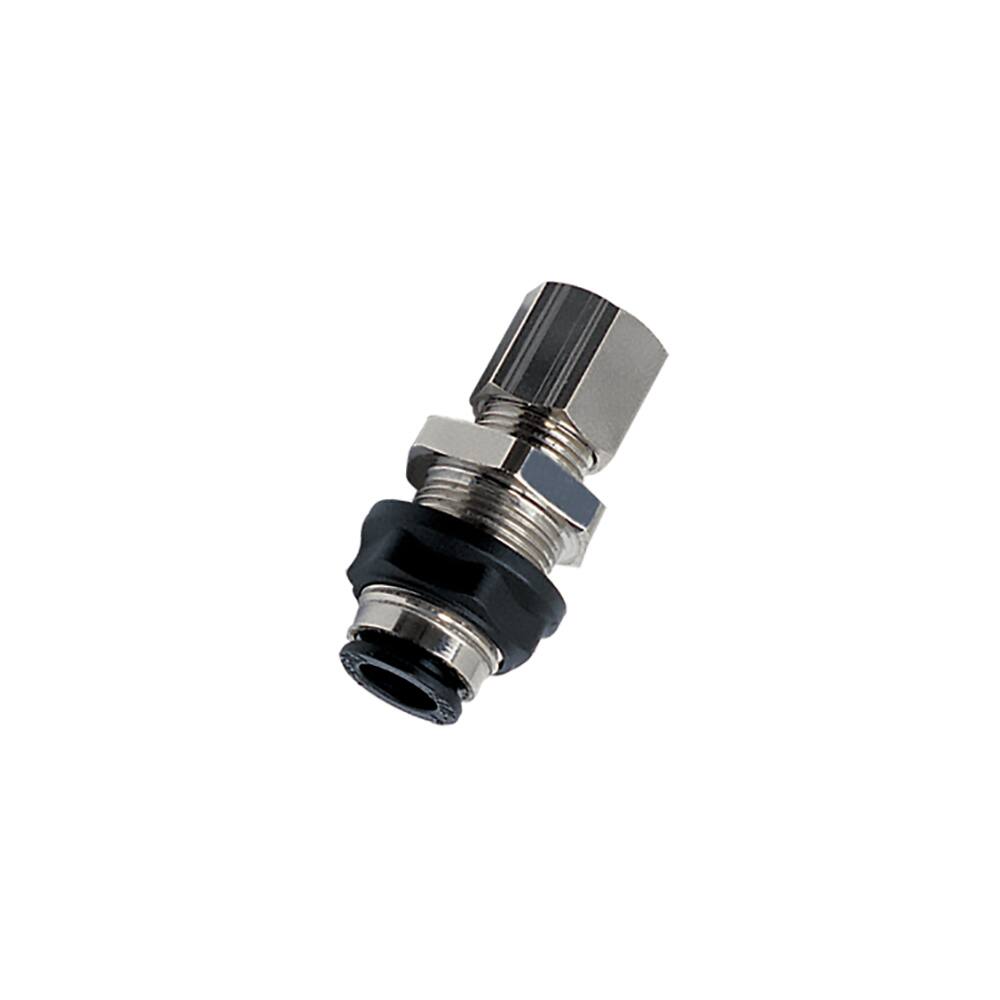

Parker Legris LF3000 4mm Equal Mixed Bulkhead Connector
Overview
The Parker Legris LF3000 4mm Equal Mixed Bulkhead Connector is a straight tube-to-tube fitting designed for compressed air applications in pneumatic systems and low-pressure fluid distribution networks.
This push-to-connect union bulkhead connector simplifies installation and maintenance by allowing quick disconnection without tools or spillage. The equal 4mm connections make it ideal for balanced flow requirements in instrument air lines, control circuits, and process automation equipment where space constraints or panel mounting is necessary.
Constructed from nickel-plated brass with a stainless steel gripping ring and NBR seals, the connector operates reliably across a temperature range of −20 °C to 80 °C and maintains a vacuum rating of 755 mm-Hg. The 13mm hexagon metric body provides secure panel mounting and straightforward installation. Supplied in boxes of 10, this connector serves chemical processing, industrial automation, food and beverage production, and general manufacturing environments requiring dependable pneumatic connectivity.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 13 |
| Weight | 0.018 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | 4 mm Tube O.D. |
| Shape | Straight |
| Connection 1 Type | Tube |
| Application | Robotics, Automotive, Packaging, Textile, Vacuum, Pneumatics |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 2 Type | n/a |
| Gripping Ring Material | Stainless Steel |
| Hex Type | Hexagon Metric |
