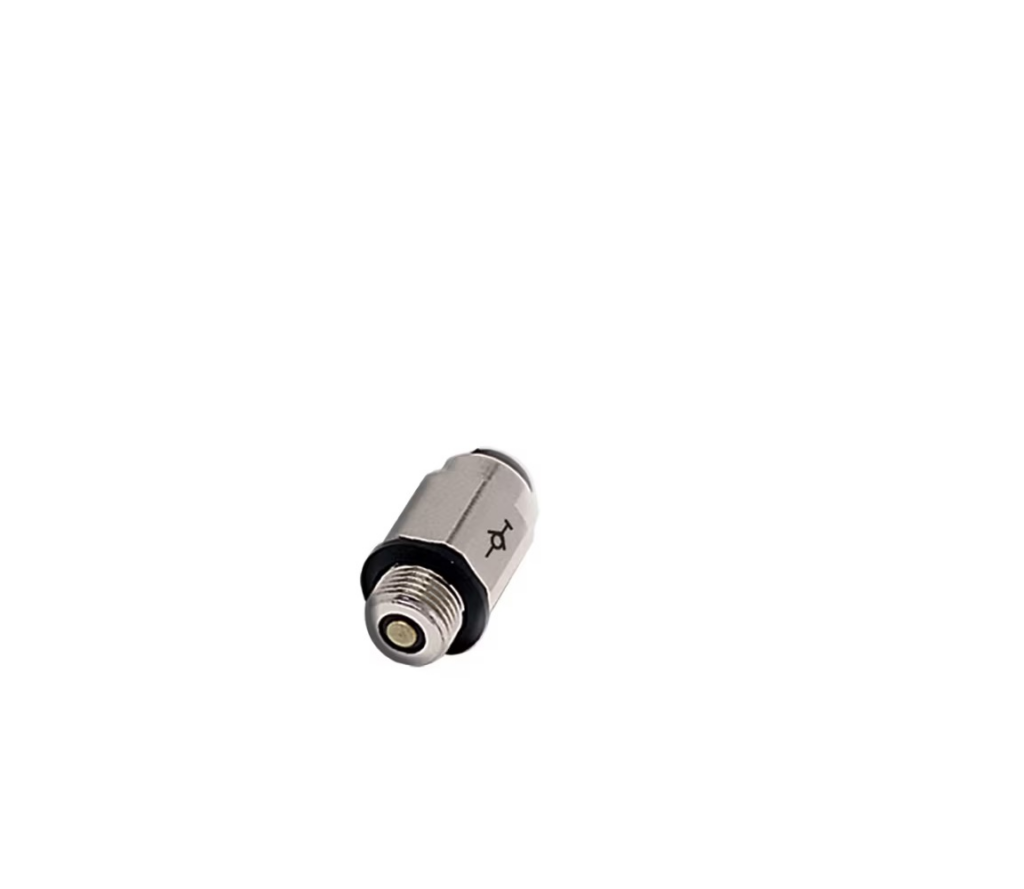

Parker Legris LF3000 6mm - 1/8"Bspp Self-Sealing Stud Fitting
Parker Legris LF3000 straight, 6 mm tube to G 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm to 1/8" BSPP self-sealing stud fitting is a push-to-connect coupling designed for low-pressure pneumatic and fluid applications in textile manufacturing and renewable energy sectors.
This straight fitting enables quick, tool-free connections in systems where reliability and ease of maintenance are priorities. The self-sealing design minimises fluid spillage during disconnect, whilst the stainless steel gripping ring and nickel-plated brass body provide corrosion resistance and durability across repeated connect-disconnect cycles. Operating reliably between –20 °C and 80 °C, the fitting accommodates 6mm outer diameter tubing on one end and features a male G 1/8 BSPP port on the other, with a vacuum rating of 755 mm-Hg suitable for low-pressure fluid and gas handling applications.
Supplied in boxes of 10 units, each weighing 0.018 kg, this connector features a 14mm hexagon metric body for secure installation. The NBR seal material ensures compatibility with a range of fluid types commonly used in industrial automation, process air systems, and specialist manufacturing environments.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/8 inch Thread |
| Hex Size | 14 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Vacuum, Packaging, Automotive, Pneumatics, Robotics, Textile |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.018 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.23 |
