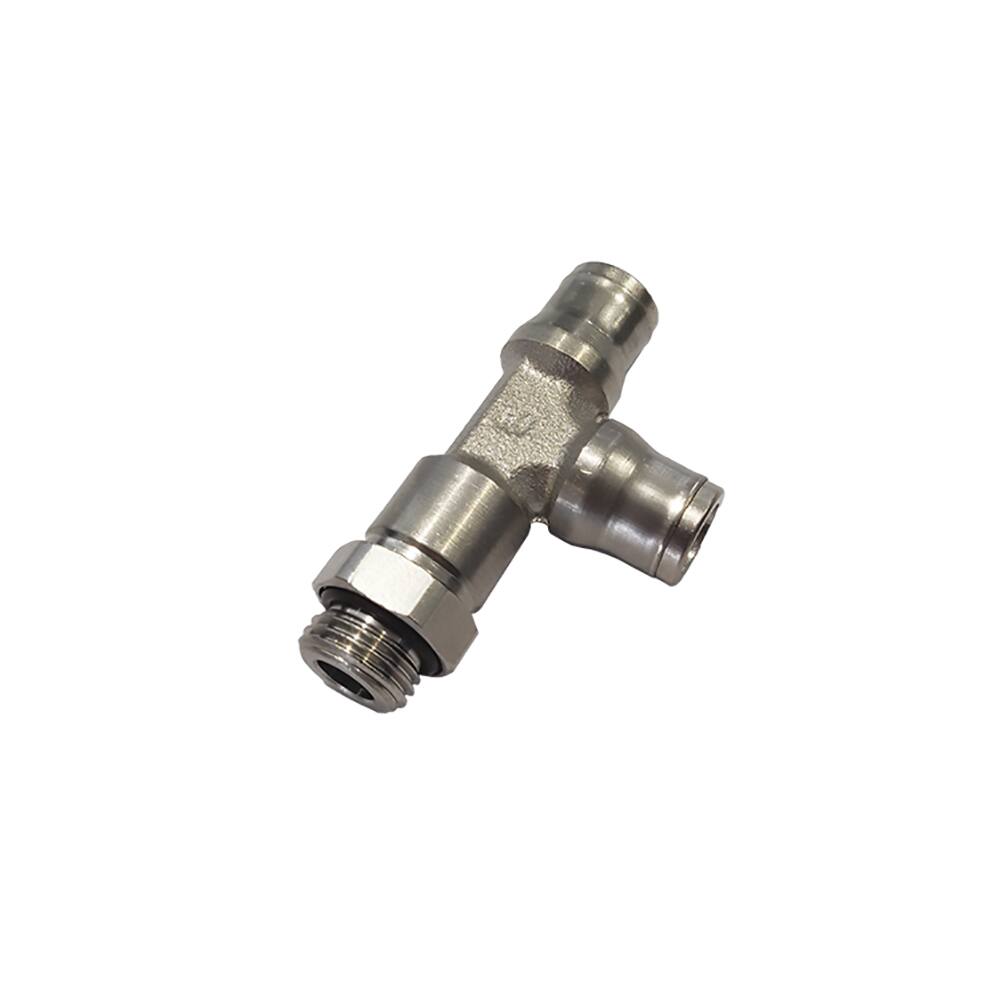

Parker Legris LF3600 10mm - 1/4'' Bspp Male Stud Run Tee
Overview
The Parker Legris LF3600 10mm to 1/4'' BSPP male stud run tee is a push-to-connect fitting designed for low-pressure fluid and gas distribution in printing equipment and industrial manufacturing applications.
This run tee configuration allows convenient branch connections in pneumatic and lubricant delivery systems, offering reliable performance across demanding production environments. The adjustable stud design enables precise positioning within compact installations, whilst the push-to-connect technology eliminates the need for tools during assembly, reducing downtime and simplifying maintenance.
Manufactured from FDA chemical nickel-plated brass with FKM seals, the fitting withstands pressures up to 30 bar and operates reliably between -25°C and 150°C. The 10mm tube connection and G 1/4 male BSPP port accommodate standard industrial tubing and threaded manifold interfaces, whilst the 755 mm-Hg vacuum rating ensures dependable performance in both positive and negative pressure circuits. Supplied in convenient boxes of ten units, this fitting serves process control, fluid handling, and instrument air systems across manufacturing, automation, and industrial equipment sectors.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.066 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 10 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | G 1/4 |
| Connection 3 Type | Male BSPP |
| Shape | Run Tee |
| Application | In-Plant Automotive, Welding Robots, Medical Equipment, Food Processing, Misting, Printing |
| Specifications Met | EC RG: 1935/2004, PED, RoHS, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), FDA 21 CFR (Food), REACH |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
