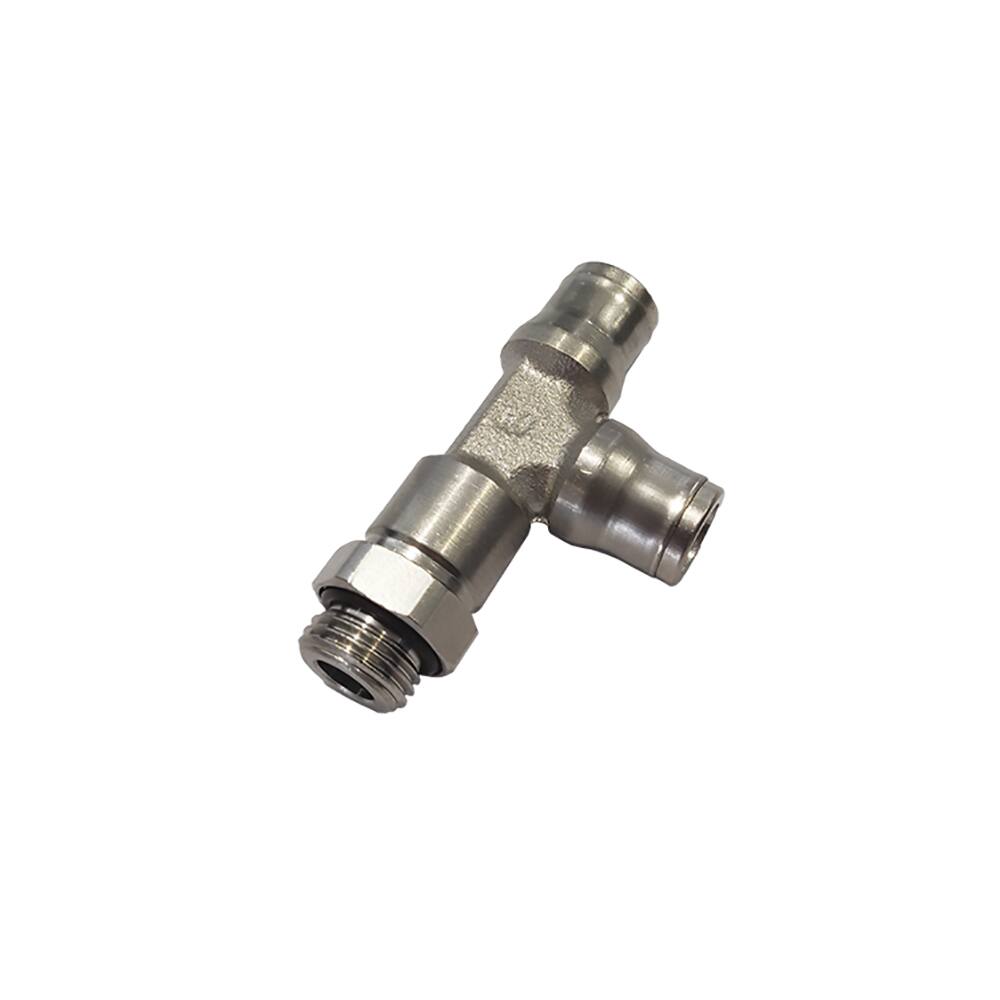

Parker Legris LF3600 6mm - 1/8'' Bspp Male Stud Run Tee
Overview
The Parker Legris LF3600 6mm to 1/8" BSPP male stud run tee is a push-to-connect fitting designed for compressed air distribution in industrial pneumatic systems.
This run tee configuration allows you to branch compressed air lines efficiently whilst maintaining system integrity. The dual 6mm tube connections and 1/8" BSPP male port enable flexible routing in confined spaces, making it ideal for instrument air, process control, and printing equipment where compact manifold layouts are essential. The FDA chemical nickel-plated brass body resists corrosion whilst the FKM seals ensure reliable performance across the operating range.
Rated for 30 bar maximum pressure with a working temperature span from -25°C to 150°C, this fitting handles standard industrial compressed air conditions without compromise. The push-to-connect design eliminates the need for tools or sealant tape, reducing assembly time and the risk of cross-threading. This versatile fitting serves automotive manufacturing, food processing, electronics assembly, and general industrial automation applications where dependable low-pressure connectors are critical to system performance.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.031 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | 6 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | G 1/8 |
| Connection 3 Type | Male BSPP |
| Shape | Run Tee |
| Specifications Met | FDA 21 CFR, ATEX DI: 94/9/EC, PED, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, REACH, RoHS |
| Application | Medical Equipment, Food Processing, In-Plant Automotive, Misting, Welding Robots, Printing |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
