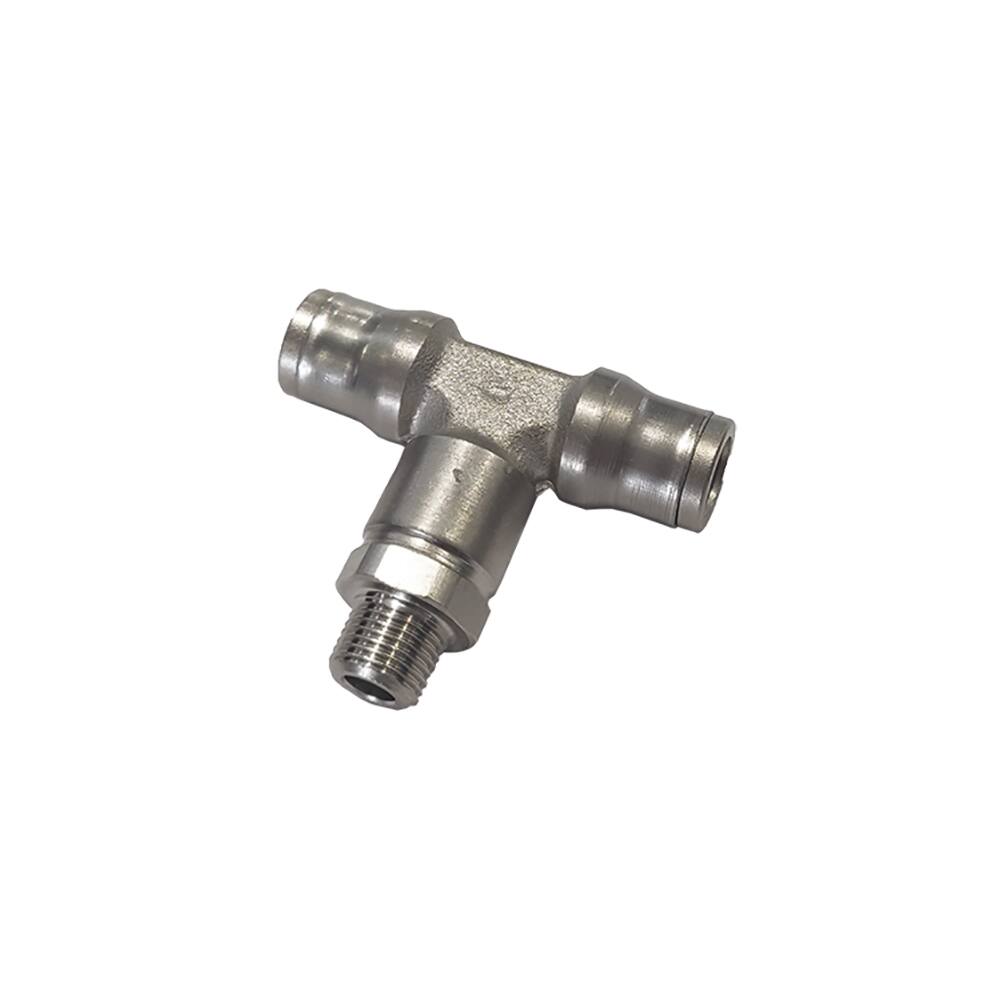

Parker Legris LF3600 10mm - 3/8'' Bspt Male Stud Branch Tee
Overview
The Parker Legris LF3600 branch tee fitting is a push-to-connect component designed for low-pressure pneumatic and fluid distribution systems. This nickel-plated brass stud fitting connects two 10 mm tubes to a R 3/8 male BSPT port, making it ideal for instrument air networks, lubrication systems, and process gas applications where space-efficient manifold connections are required. The fitting's FDA chemical nickel coating and FKM seals provide excellent corrosion resistance and compatibility with greases and lubricants across a working temperature range of −25 °C to +150 °C, with a maximum operating pressure of 30 bar and vacuum rating to 755 mm-Hg. Its push-to-connect design eliminates the need for tools, reducing assembly time and labour costs whilst maintaining reliable, leak-free connections. Supplied in boxes of ten units, this fitting meets RoHS requirements and serves healthcare, food and beverage, industrial automation, and pharmaceutical manufacturing sectors where hygienic and repeatable pneumatic distribution is essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.07 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 10 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | R 3/8 |
| Connection 3 Type | Male BSPT |
| Shape | Branch Tee |
| Application | Fluid Control, Process Control, Medical, Industrial, General Industrial, In Plant Pneumatic, Transportation, Pneumatic |
| Specifications Met | UL 94 V-0 (Please Consult Us), REACH, ATEX DI: 94/9/EC, FDA 21 CFR (Food), PED, EC RG: 1935/2004, RoHS |
| Coating | FDA Chemical Nickel-plated |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
