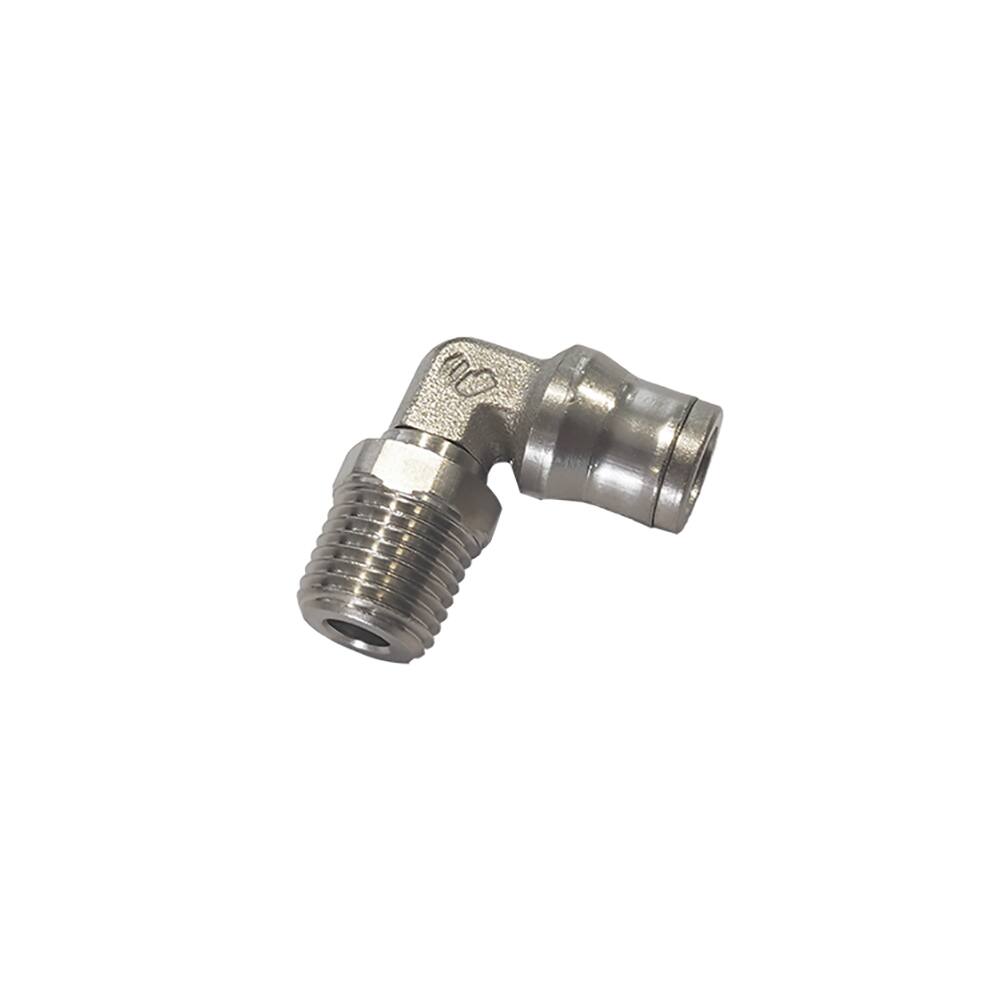

Parker Legris LF3600 10mm - 3/8'' Bspt Male Stud Elbow
Overview
The Parker Legris LF3600 10mm to 3/8" BSPT male stud elbow is a push-to-connect fitting designed for fluid control applications in low-pressure systems handling lubricants and greases.
This 90° elbow fitting enables straightforward connections between 10mm tube and R 3/8" threaded ports without the need for tools or additional assembly steps. The FDA-approved nickel-plated brass body resists corrosion whilst maintaining reliable performance across industrial environments, withstanding operating pressures up to 20 bar and temperatures between −25 °C and 150 °C. The adjustable stud design accommodates minor misalignments, whilst the FKM sealing material ensures consistent leak-free operation in fluid transfer applications.
Supplied in boxes of ten, this fitting suits industrial processing, manufacturing automation, and process control systems where efficient fluid distribution and maintenance accessibility are priorities.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.043 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | R 3/8 |
| Connection 2 Type | Male BSPT |
| Shape | Elbow 90° |
| Application | Industrial, General Industrial, Pneumatic, In Plant Pneumatic, Process Control, Transportation, Medical, Fluid Control |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Specifications Met | RoHS, FDA 21 CFR, PED, REACH, EC RG: 1935/2004, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us) |
| Connection 3 Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Coating | FDA Chemical Nickel-plated |
