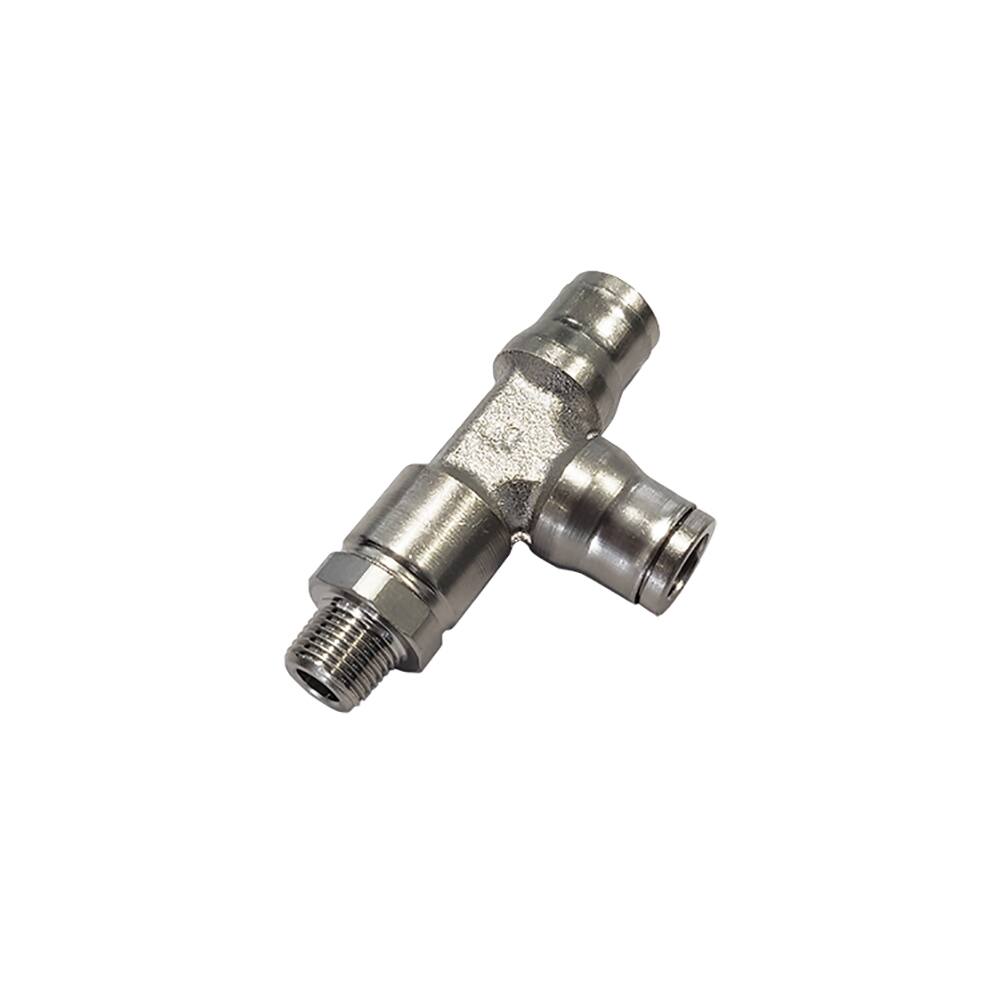

Parker Legris LF3600 10mm - 3/8'' Bspt Male Stud Run Tee
Overview
The Parker Legris LF3600 Run Tee is a push-to-connect fitting designed for in-plant pneumatic and low-pressure fluid distribution systems. This stud fitting connects two 10 mm tubes to a 3/8" BSPT male port, making it ideal for branching compressed air or water lines in confined spaces where adjustable positioning is beneficial. Constructed from brass with FDA chemical nickel plating, the fitting withstands operating pressures up to 30 bar and temperatures from -25 °C to 150 °C, whilst the FKM seals provide reliable performance across repeated connection cycles. The nickel-plated body offers excellent corrosion resistance in demanding environments, and the push-to-connect design eliminates the need for tools or fittings tape during installation. Supplied in boxes of ten, this fitting serves healthcare facilities, pharmaceutical manufacturing, food processing, and other industries requiring hygienic, durable pneumatic infrastructure.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.069 kg |
| For Fluid Type | Air (Compressed Air), Lubricants (Grease), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 10 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | R 3/8 |
| Connection 3 Type | Male BSPT |
| Shape | Run Tee |
| Connection 1 Type | Tube |
| Application | Pneumatic, General Industrial, Medical, Process Control, Fluid Control, Transportation, Industrial, In Plant Pneumatic |
| Specifications Met | PED, ATEX DI: 94/9/EC, REACH, FDA 21 CFR (Food), RoHS, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us) |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
