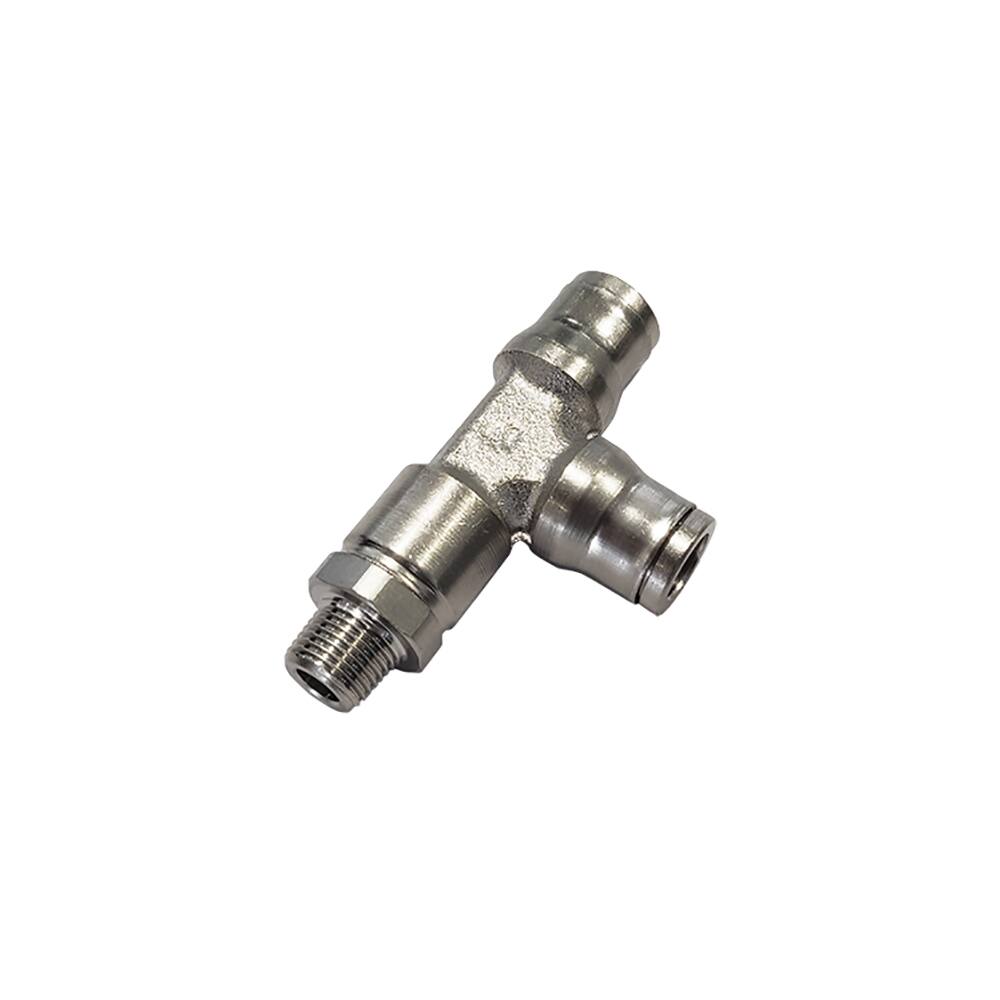

Parker Legris LF3600 4mm - 1/8'' Bspt Male Stud Run Tee
Overview
The Parker Legris LF3600 4mm – 1/8" BSPT Male Stud Run Tee is a push-to-connect fitting designed for pneumatic and low-pressure fluid distribution applications. This run tee configuration enables efficient branching in compressed air and lubricant delivery systems, allowing you to split flow from a single inlet across two outlets while maintaining a secondary port connection.
Manufactured from FDA chemical nickel-plated brass with FKM seals, this fitting delivers reliable performance across a wide temperature range from –25 °C to 150 °C and operates safely up to 30 bar. The adjustable stud design accommodates 4mm outer diameter tubing on the primary connections, whilst the R 1/8 BSPT male thread provides a secure port interface for instrumentation or secondary equipment. Its compact design and low-profile sealing system minimise pressure drop whilst supporting vacuum applications rated to 755 mm-Hg.
Supplied in boxes of 10 units and fully RoHS compliant, this fitting serves healthcare, food processing, and general industrial automation environments where clean, pressurised gas handling is essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.018 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | 4 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | R 1/8 |
| Connection 3 Type | Male BSPT |
| Shape | Run Tee |
| Coating | FDA Chemical Nickel-plated |
| Specifications Met | FDA 21 CFR (Food), ATEX DI: 94/9/EC, PED, EC RG: 1935/2004, REACH, UL 94 V-0 (Please Consult Us), RoHS |
| Application | General Industrial, Transportation, In Plant Pneumatic, Medical, Fluid Control, Process Control, Industrial, Pneumatic |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
