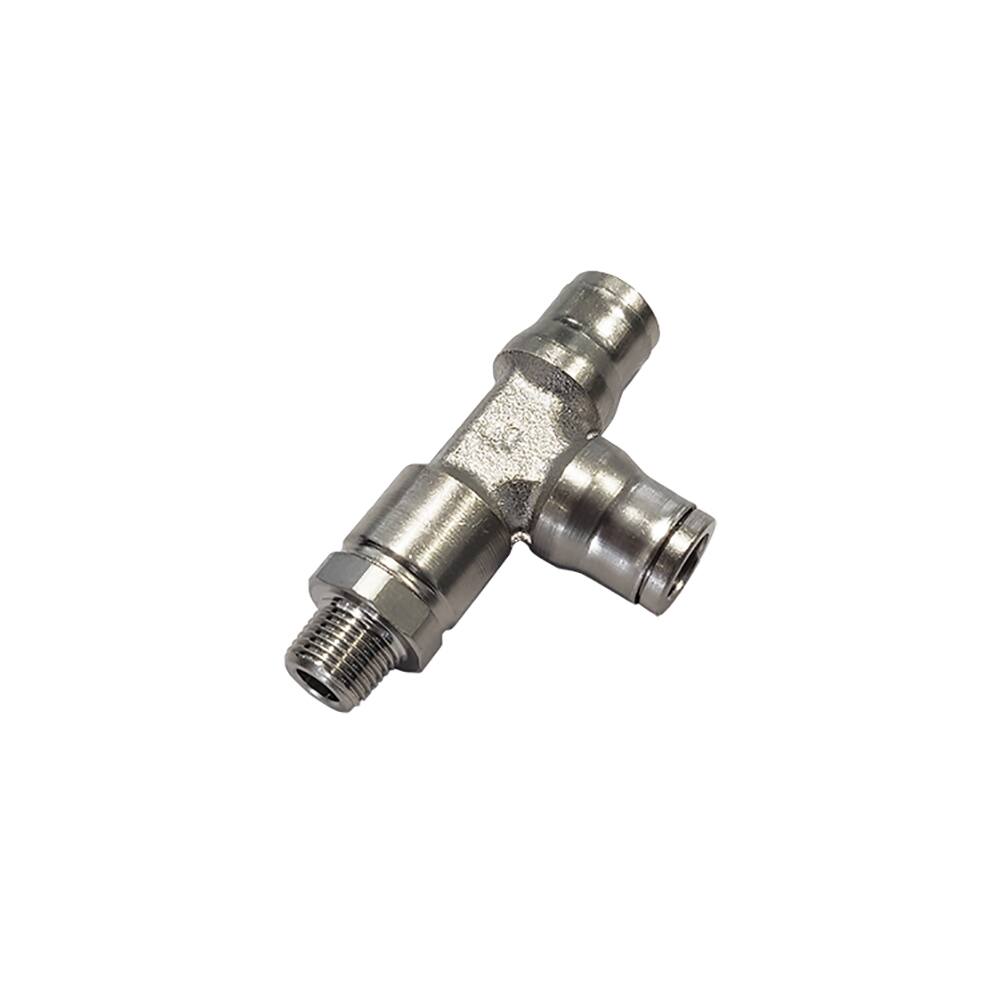

Parker Legris LF3600 10mm - 1/4'' Bspt Male Stud Run Tee
Overview
The Parker Legris LF3600 is a push-to-connect run tee fitting designed for low-pressure fluid and gas handling applications in process control systems. This compact tee connector features a tube-to-port configuration with dual 10 mm push-fit connections and a 1/4" BSPT male stud outlet, making it ideal for applications requiring secure, leak-free joins without tools. The nickel-plated brass body delivers robust performance across a working pressure range of up to 30 bar, whilst the FKM seal material ensures reliable operation in demanding environments. Built to withstand temperatures from –25 °C to 150 °C, this fitting accommodates both air and lubricant applications with excellent chemical resistance. The adjustable stud design provides installation flexibility for confined spaces and complex plumbing arrangements. Supplied in boxes of 10 and meeting RoHS compliance, this fitting serves food and beverage processing, industrial automation, and instrument air systems.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.067 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 10 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | R 1/4 |
| Connection 3 Type | Male BSPT |
| Shape | Run Tee |
| Specifications Met | FDA 21 CFR (Food), REACH, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, ATEX DI: 94/9/EC, PED, RoHS |
| Application | Pneumatic, Industrial, In Plant Pneumatic, General Industrial, Fluid Control, Transportation, Medical, Process Control |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
