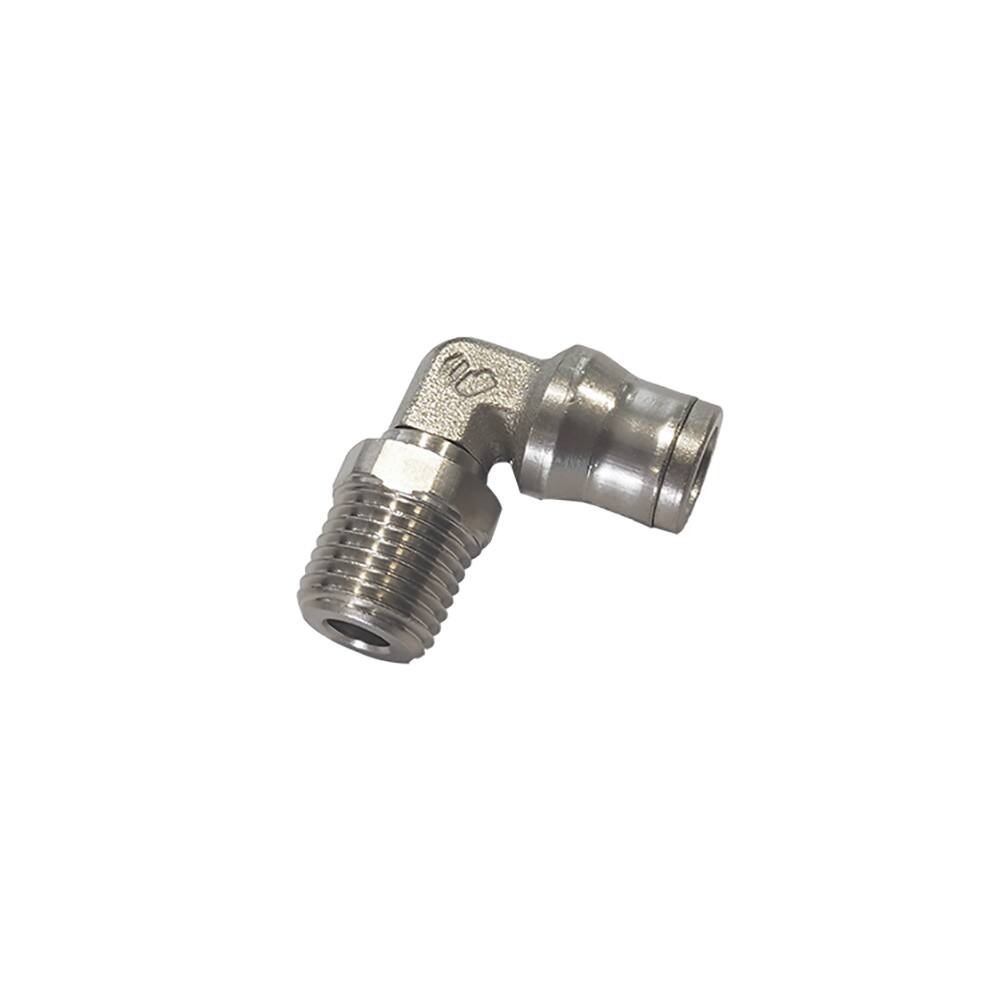

Parker Legris LF3600 14mm - 3/8'' Bspt Male Stud Elbow
Overview
The Parker Legris LF3600 14mm to 3/8" BSPT male stud elbow is a 90-degree push-to-connect fitting designed for low-pressure fluid and gas distribution systems in transportation and industrial processing applications.
This nickel-plated brass elbow simplifies installation by eliminating the need for tools or adjustable spanners on the tube end, whilst the male BSPT port connects securely to manifolds and valve blocks. The FKM seal material and robust construction support operating pressures up to 20 bar across a wide temperature range of -25°C to +150°C, making it suitable for both heated and refrigerated environments. The compact 90-degree geometry optimises space constraints in tight installations whilst maintaining reliable fluid transfer for water-based systems.
Supplied in packs of five, this fitting serves pneumatic automation, food and beverage processing, and general industrial instrumentation applications where space efficiency and tool-free assembly are valued.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.063 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Port |
| Connection 1 Size | 14 mm (O.D.) |
| Connection 2 Size | R 3/8 |
| Connection 2 Type | Male BSPT |
| Shape | Elbow 90° |
| Application | Industrial, General Industrial, In Plant Pneumatic, Process Control, Medical, Fluid Control, Pneumatic, Transportation |
| Specifications Met | FDA 21 CFR (Food), REACH, PED, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, ATEX DI: 94/9/EC, RoHS |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
