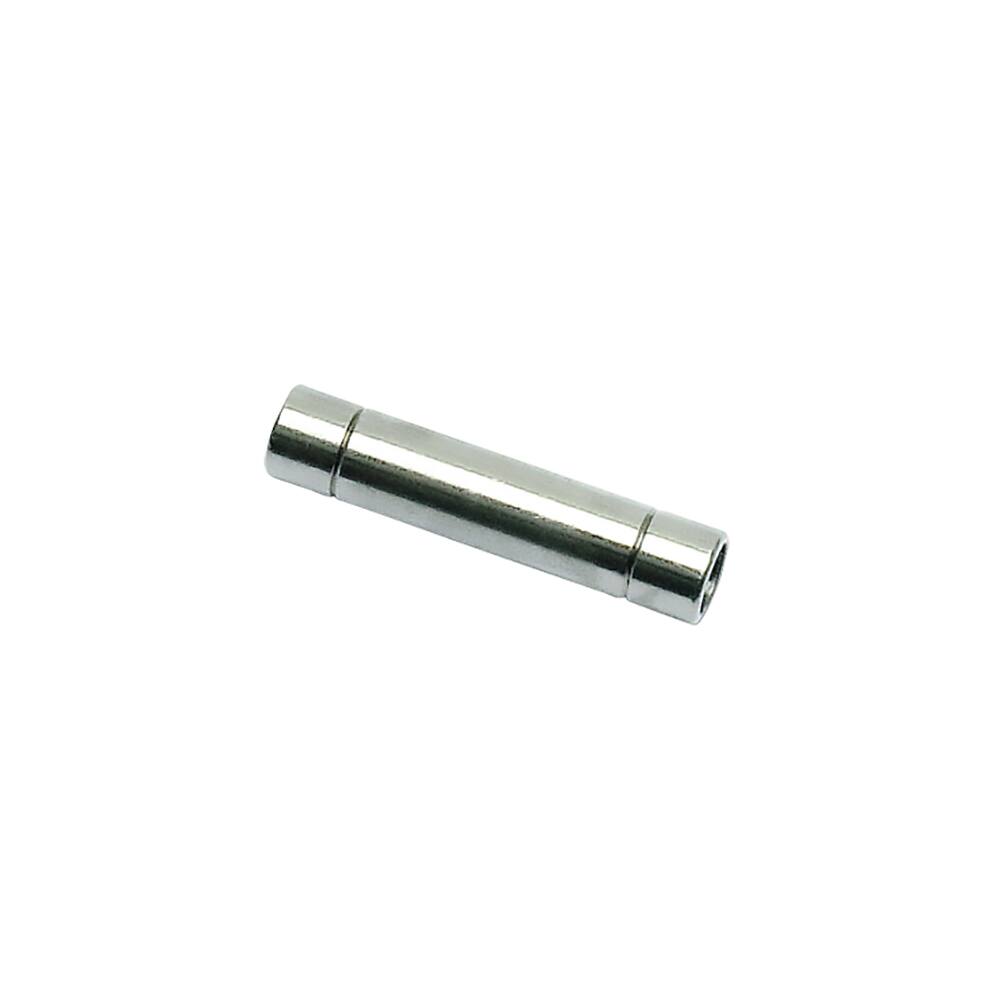

Parker Legris LF3600 14mm Male Stem Connector
Overview
The Parker Legris LF3600 14mm Male Stem Connector is a push-to-connect fitting designed for straightforward tube-to-tube pneumatic applications requiring reliable, maintenance-free assembly.
This double male stem connector excels in low-pressure compressed air systems where quick disconnect capability and leak-free performance are essential. Its FDA chemical nickel-plated brass body ensures durability and corrosion resistance across demanding environments, whilst the 14mm tube connection provides a compact, standardised interface. Rated for pressures up to 30 bar and temperatures ranging from −25 °C to 150 °C, the fitting accommodates both typical industrial conditions and temperature-sensitive applications. The connector meets UL 94 V-0 specifications and maintains integrity at vacuum levels down to 755 mm-Hg, making it suitable for sealed system work.
Supplied in convenient boxes of ten units, this fitting serves healthcare facilities, life sciences operations, process control systems, and industrial automation where sterile, contamination-free pneumatic distribution is paramount.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.016 kg |
| For Fluid Type | Water, Lubricants (Grease), Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Connection 1 Size | 14 mm (O.D.) |
| Shape | Straight |
| Specifications Met | PED, FDA 21 CFR (Food), REACH, ATEX DI: 94/9/EC, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us) |
| Connection 3 Type | n/a |
| Connection 2 Size | 14 mm |
| Coating | FDA Chemical Nickel-plated |
| Application | In Plant Pneumatic, General Industrial, Medical, Transportation, Industrial, Process Control, Fluid Control, Pneumatic |
| Connection 3 Size | n/a |
| Connection 2 Type | Tube |
| Configuration | Tube Stem to Tube Stem |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
