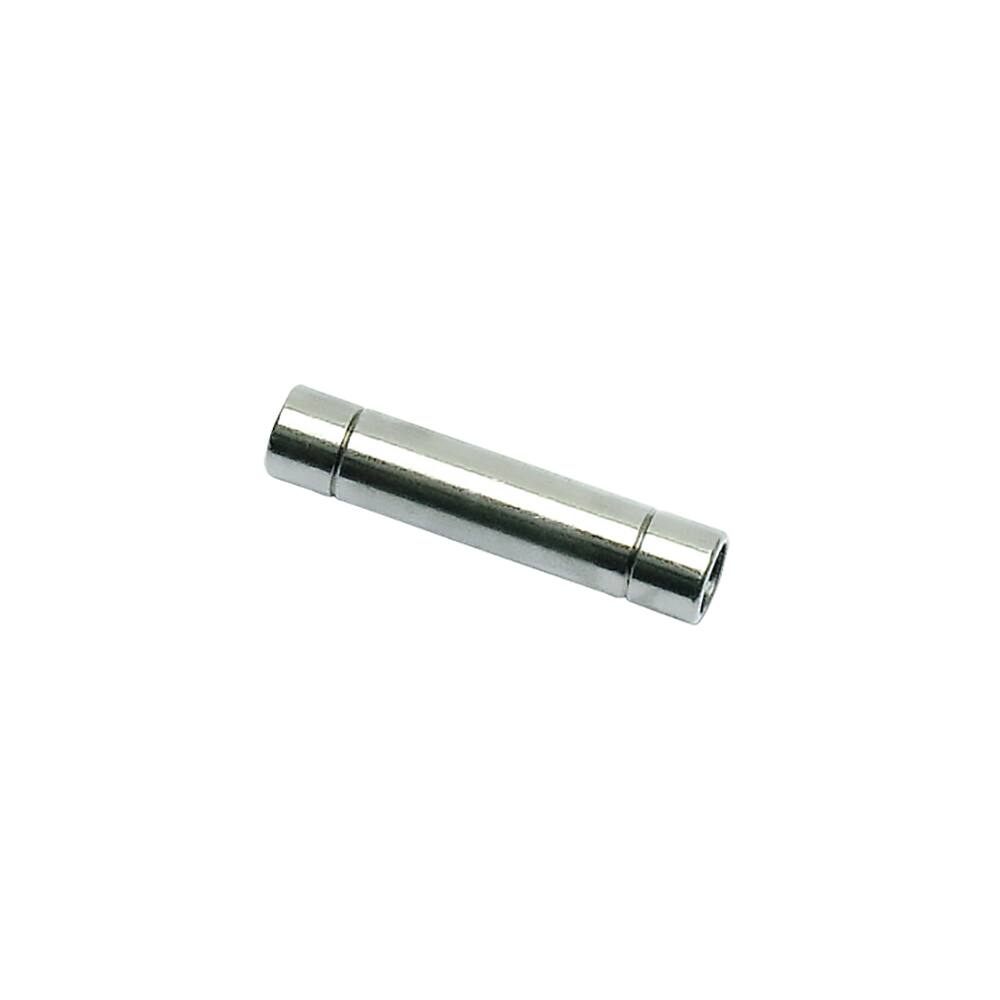

Parker Legris LF3600 12mm Male Stem Connector
Overview
The Parker Legris LF3600 12mm Male Stem Connector is a push-to-connect fitting designed for process control applications in compressed air systems and low-pressure fluid distribution.
This double male stem connector simplifies tube-to-tube connections in pneumatic networks, eliminating the need for traditional threaded fittings. The straight configuration and 12mm outer diameter tubing interface make installation straightforward, whilst the push-to-connect design reduces assembly time and labour costs. Operating across a temperature range of −25 °C to 150 °C and rated to 30 bar maximum pressure, this fitting handles demanding process control environments reliably.
Constructed from FDA-compliant chemical nickel-plated brass, the connector resists corrosion and maintains integrity in sterile and food-contact applications where material migration must be controlled. The vacuum rating of 755 mm-Hg ensures dependable performance in evacuation circuits. Each box contains 10 units, allowing for efficient inventory management.
Ideal for healthcare facilities, life sciences laboratories, food processing plants, and industrial automation systems requiring certified, food-grade pneumatic components.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.015 kg |
| For Fluid Type | Water, Lubricants (Grease), Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Connection 1 Size | 12 mm (O.D.) |
| Shape | Straight |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Application | Fluid Control, Transportation, Industrial, In Plant Pneumatic, General Industrial, Medical, Pneumatic, Process Control |
| Vacuum Pressure Rating | 755 mm-Hg |
| Coating | FDA Chemical Nickel-plated |
| Specifications Met | REACH, FDA 21 CFR (Food), PED, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), RoHS, EC RG: 1935/2004 |
| Connection 3 Type | n/a |
| Connection 2 Size | 12 mm |
| Configuration | Tube Stem to Tube Stem |
| Connection 2 Type | Tube |
