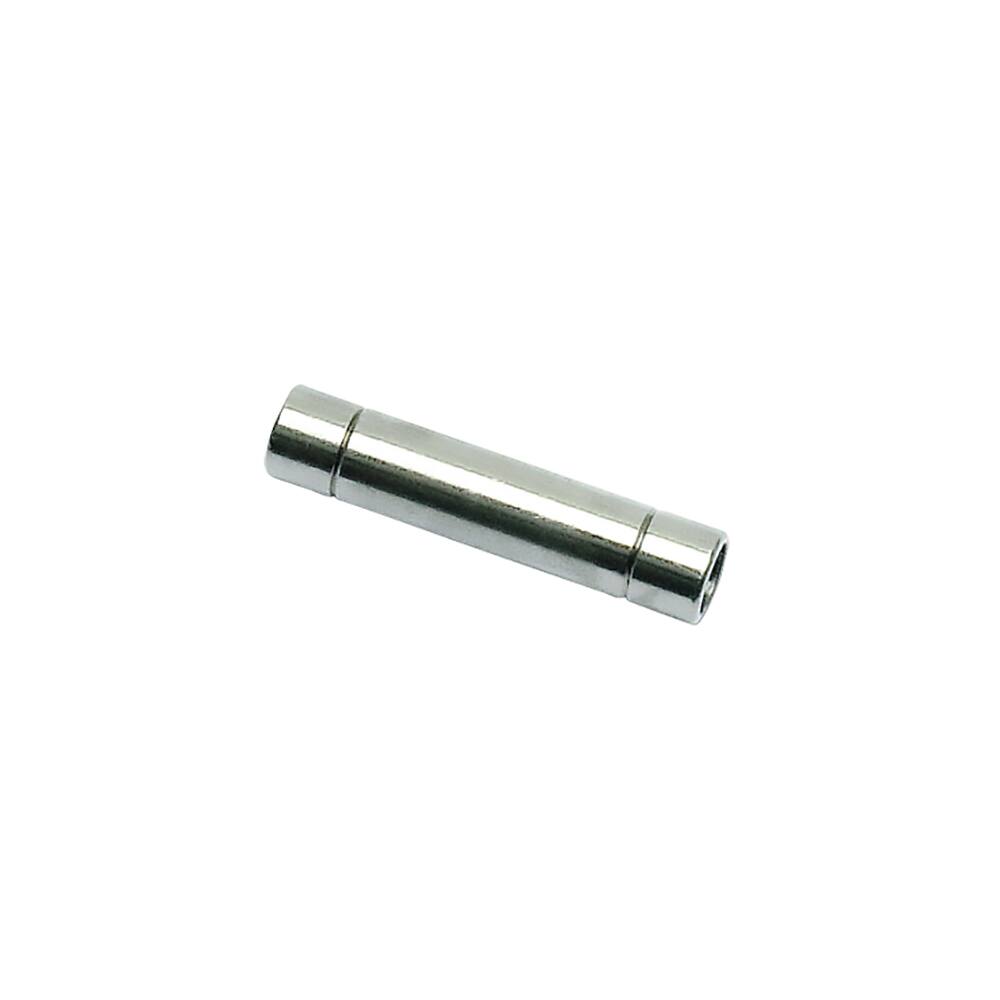

Parker Legris LF3600 8mm Male Stem Connector
Overview
The Parker Legris LF3600 8mm Male Stem Connector is a push-to-connect fitting designed for pneumatic applications requiring reliable, tool-free assembly in compressed air systems.
This straight connector joins two 8mm tubes seamlessly, making it ideal for building modular pneumatic networks where quick reconfiguration is essential. The nickel-plated brass body delivers robust performance across a wide operating range from −25 °C to 150 °C, whilst maintaining a maximum working pressure of 30 bar and vacuum rating to 755 mm-Hg. Its push-to-connect design eliminates the need for threaded connections, reducing installation time and the risk of leaks caused by over-tightening. The FDA-compliant material specification ensures suitability for healthcare and life sciences environments where hygiene and chemical resistance matter.
Supplied in boxes of 10 units, this connector serves industrial automation, food and beverage processing, and instrument air distribution systems where speed and reliability are paramount.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.007 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Connection 1 Size | 8 mm (O.D.) |
| Shape | Straight |
| Specifications Met | EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), ATEX DI: 94/9/EC, RoHS, PED, REACH, FDA 21 CFR |
| Connection 3 Type | n/a |
| Application | Process Control, Medical, General Industrial, Transportation, Fluid Control, Industrial, In Plant Pneumatic, Pneumatic |
| Connection 2 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Configuration | Tube Stem to Tube Stem |
| Connection 2 Size | 8 mm |
