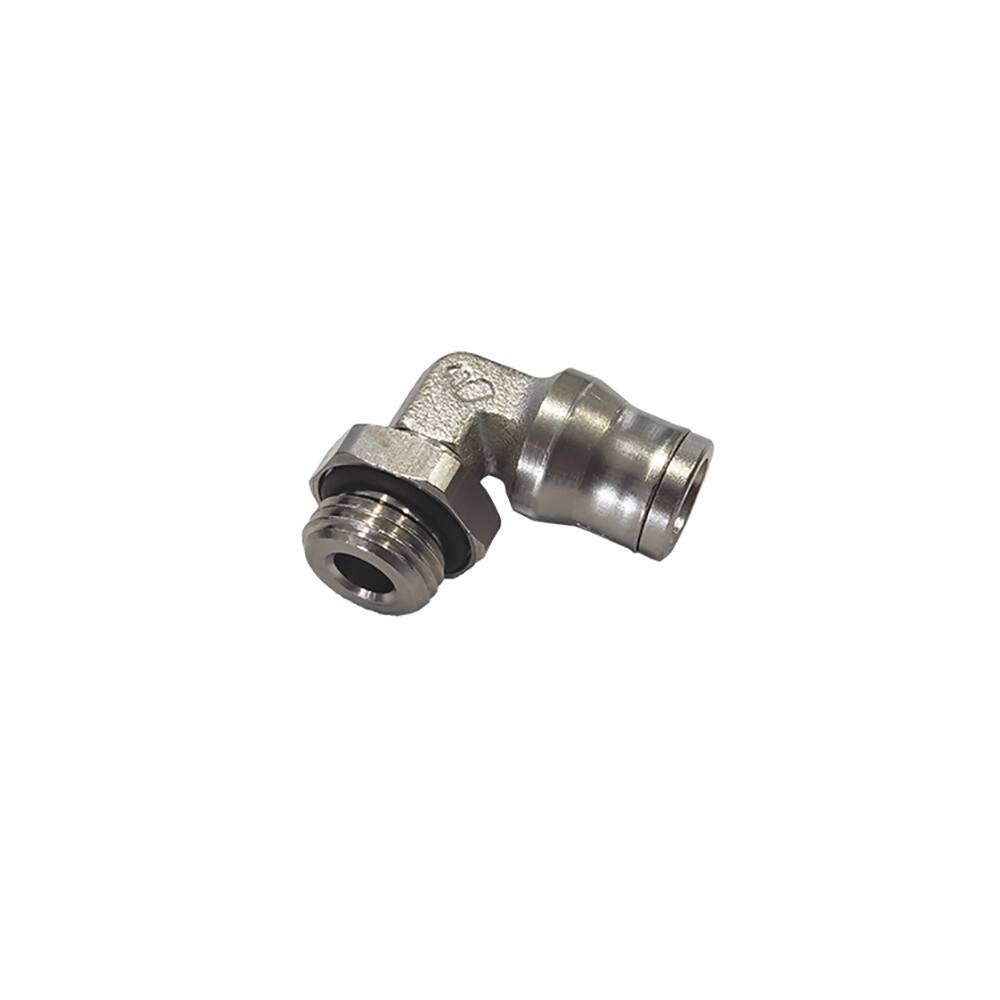

Parker Legris LF3600 4mm - 1/8'' Bspp Male Compact Elbow
Overview
The Parker Legris LF3600 is a 90° compact elbow connector designed for in-plant pneumatic and low-pressure fluid applications where space is at a premium. This push-to-connect fitting joins 4 mm tubing to a G 1/8 male BSPP port, making it ideal for instrument air lines, lubrication systems, and modular control circuits where reliable connections are essential. The nickel-plated brass body with FKM seals delivers robust performance across a wide operating range from −25 °C to 150 °C, whilst maintaining a maximum working pressure of 20 bar and vacuum rating of 755 mm-Hg. Its adjustable stud design allows for precise orientation and easy installation without tools, reducing assembly time and minimising leakage risks in demanding environments. Supplied in boxes of 10 and fully RoHS-compliant, this fitting is widely used across healthcare, life sciences, food processing, and general industrial automation sectors.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.014 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | G 1/8 |
| Connection 2 Type | Male BSPP |
| Shape | Elbow 90° |
| Specifications Met | UL 94 V-0 (Please Consult Us), REACH, PED, EC RG: 1935/2004, ATEX DI: 94/9/EC, FDA 21 CFR, RoHS |
| Connection 1 Type | Tube |
| Application | Fluid Control, Process Control, Medical, Pneumatic, General Industrial, Transportation, Industrial, In Plant Pneumatic |
| Connection 3 Size | n/a |
| Connection 3 Type | n/a |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
