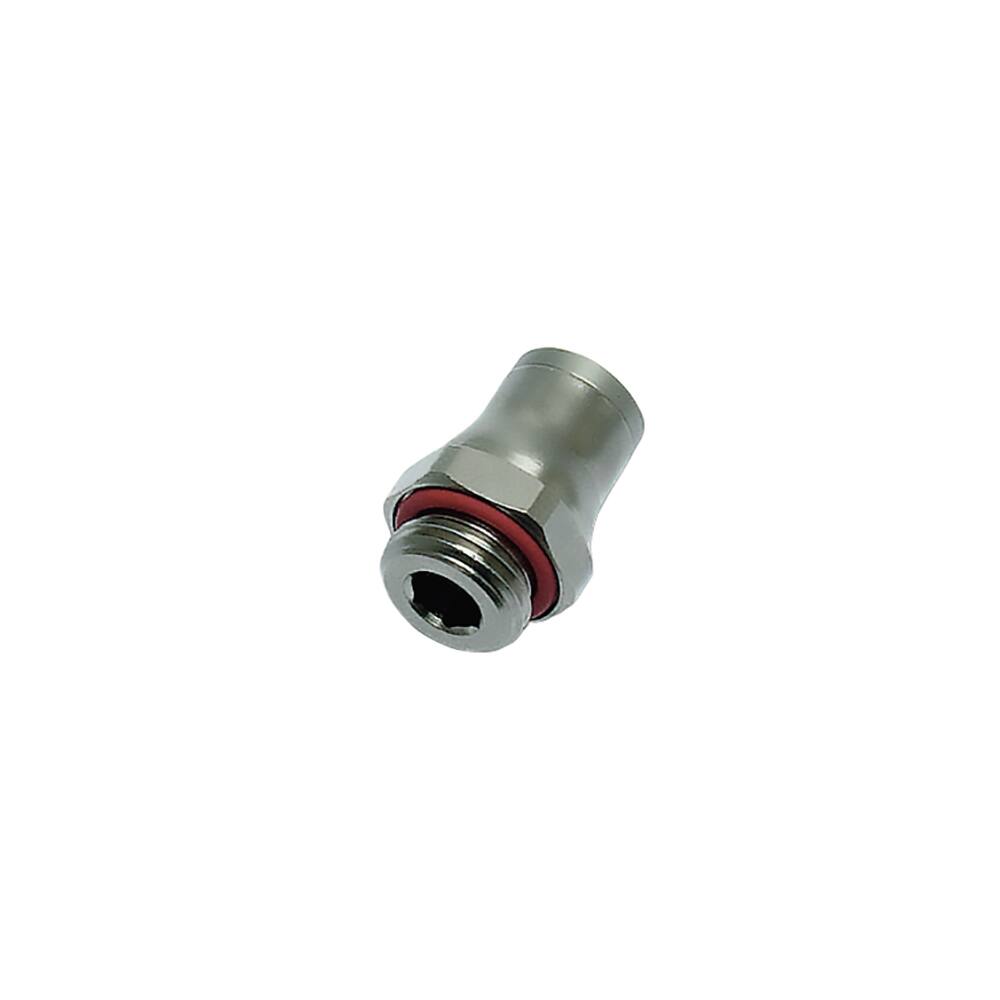

Parker Legris LF3600 4mm - 1/8'' Bspp Male Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect straight stud fitting designed to join 4 mm tubing to 1/8" BSPP male ports in low-pressure pneumatic and fluid distribution systems. This compact connector simplifies assembly and maintenance by eliminating the need for tools during connection and disconnection, making it ideal for applications where frequent servicing or reconfiguration is required. Constructed from FDA chemical nickel-plated brass with FKM seals, the fitting withstands operating pressures up to 30 bar and maintains reliable performance across a temperature range of –25 °C to 150 °C, accommodating both ambient and moderately heated environments. The nickel plating provides corrosion resistance and durability in demanding settings, whilst the FKM elastomer ensures compatibility with lubricants, grease, and other process fluids. Supplied in quantities of 10 per box and meeting RoHS compliance, this stud fitting serves food and beverage processing, transportation, and general industrial automation where clean, efficient connections are essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.009 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | G 1/8 |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Specifications Met | FDA 21 CFR, ATEX DI: 94/9/EC, REACH, PED, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), RoHS |
| Application | In Plant Pneumatic, Medical, Industrial, Fluid Control, General Industrial, Process Control, Pneumatic, Transportation |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
