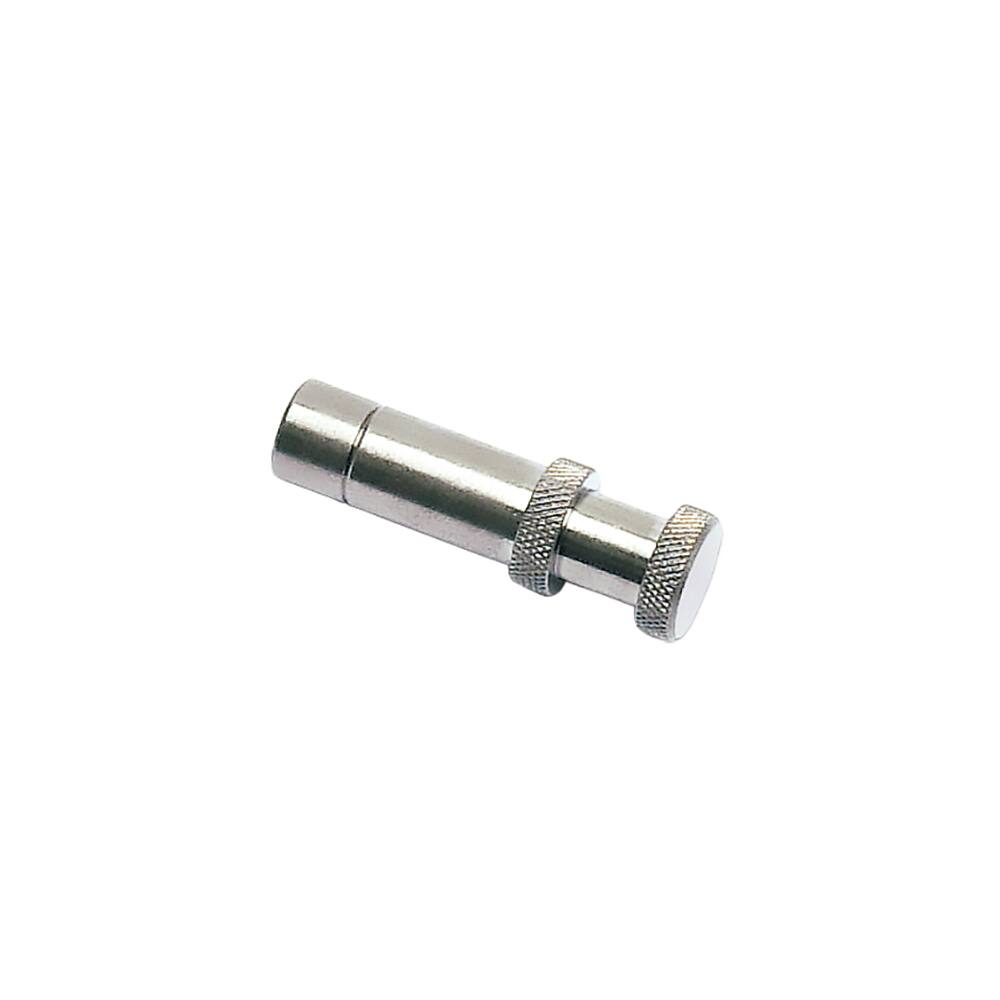

Parker Legris LF3600 4mm Blanking Plug
Overview
The Parker Legris LF3600 4mm Blanking Plug is a straight push-to-connect fitting designed to seal unused ports in low-pressure pneumatic and fluid systems during transportation applications.
This blanking plug provides a reliable, maintenance-free method for isolating circuit branches and preventing contamination at disconnected line ends. The tube stem accepts 4mm outer diameter tubing and operates safely within a working pressure range of 0–30 bar, making it suitable for systems handling water and other compatible fluids across a temperature span of –25 °C to +150 °C. Constructed from FDA chemical nickel-plated brass, the fitting offers corrosion resistance and durability in demanding environments whilst maintaining a lightweight profile.
The LF3600 series employs Parker's proven push-to-connect technology, eliminating the need for tools or specialised training during installation and reconfiguration. Supplied in boxes of 10 units, this blanking plug serves transportation, industrial automation, and process instrument air industries where quick, clean system modifications are essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.004 kg |
| For Fluid Type | Air (Compressed Air), Lubricants (Grease), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | n/a |
| Specifications Met | ATEX DI: 94/9/EC, FDA 21 CFR, REACH, PED, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), RoHS |
| Application | In Plant Pneumatic, Pneumatic, Medical, Industrial, General Industrial, Fluid Control, Process Control, Transportation |
| Connection 3 Type | n/a |
| Connection 2 Type | n/a |
| Configuration | Stube Stem to Plug |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Shape | Straight |
| Vacuum Pressure Rating | 755 mm-Hg |
