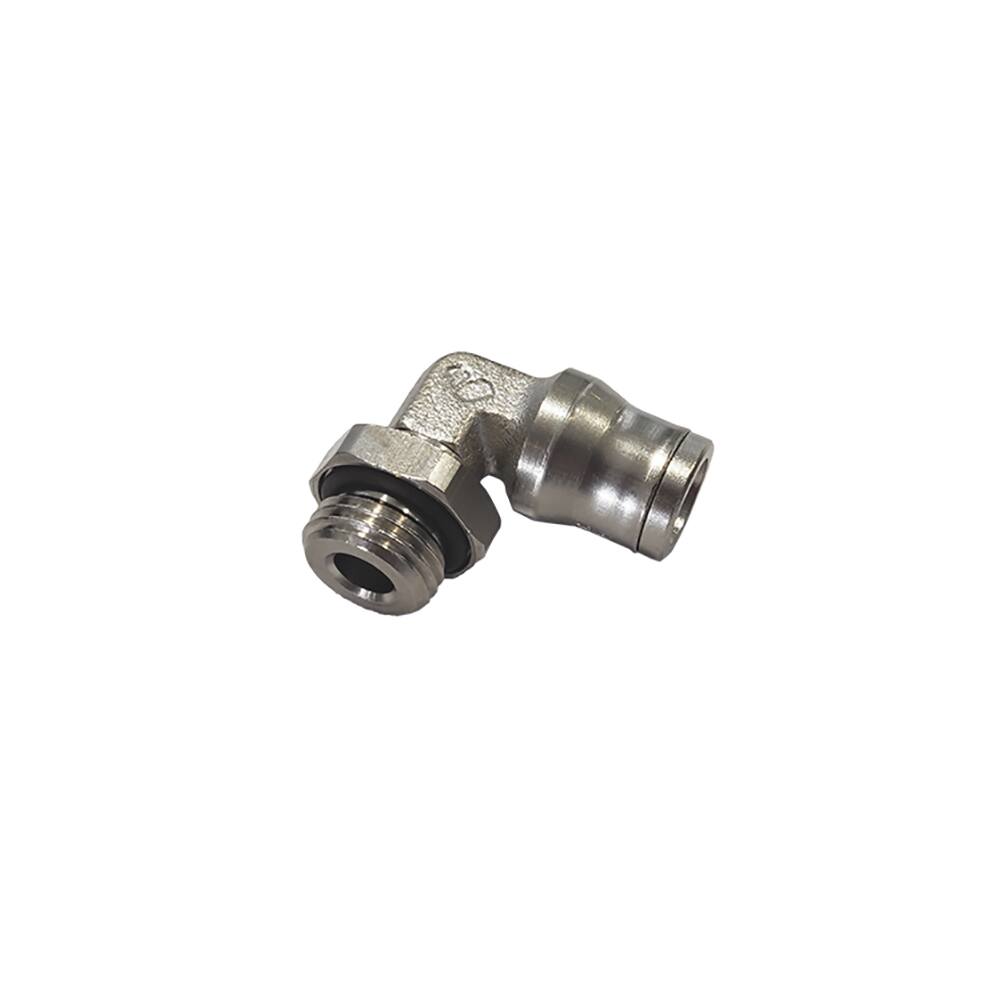

Parker Legris LF3600 6mm - 1/4'' Bspp Male Compact Elbow
Overview
The Parker Legris LF3600 is a compact 90° elbow connector designed for medical and low-pressure pneumatic applications where space and reliability are paramount.
This push-to-connect fitting offers straightforward tube-to-port configuration, making it ideal for instrument air systems, medical gas delivery, and precision pneumatic controls. The 6 mm tube connection mates directly to a G 1/4 male BSPP port, accommodating working pressures up to 20 bar whilst maintaining a vacuum rating of 755 mm-Hg. Constructed from FDA-compliant nickel-plated brass with an FKM seal, the fitting withstands operating temperatures between –25 °C and 150 °C, ensuring consistent performance across demanding environments. The adjustable stud design permits fine-tuning of alignment and angle, reducing installation time and system stress.
These connectors serve transportation, medical device manufacturing, food processing, and process control industries where hygienic standards and dependable fluid routing are essential.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.022 kg |
| For Fluid Type | Water, Lubricants (Grease), Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Male BSPP |
| Shape | Elbow 90° |
| Application | In Plant Pneumatic, Process Control, Fluid Control, Pneumatic, General Industrial, Transportation, Industrial, Medical |
| Specifications Met | UL 94 V-0 (Please Consult Us), REACH, FDA 21 CFR, RoHS, ATEX DI: 94/9/EC, PED, EC RG: 1935/2004 |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
