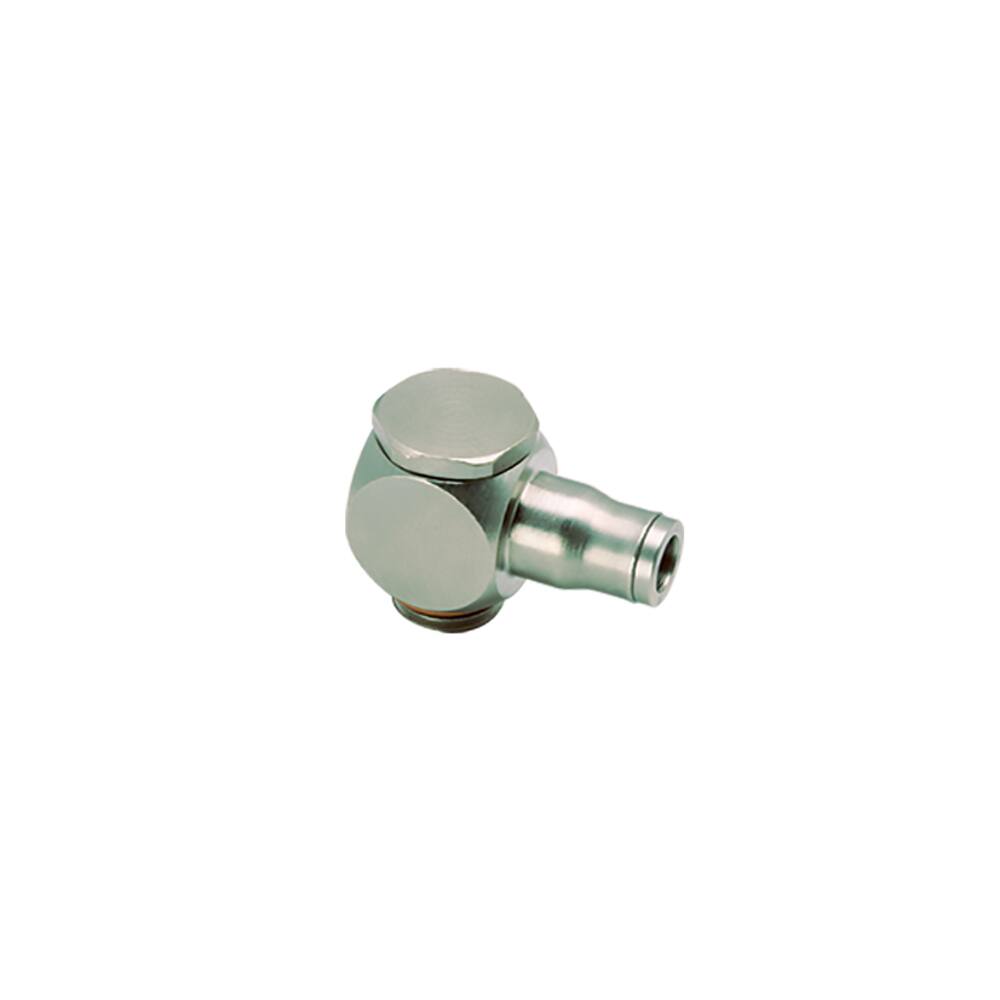

Parker Legris LF3600 6mm - 1/4'' Bspp Male Single Banjo
Overview
The Parker Legris LF3600 is a 6mm push-to-connect banjo fitting with a G 1/4 male BSPP port, designed for low-pressure lubricant distribution in general industrial applications. This straight stud fitting enables simple, tool-free connection of tubing to system ports, eliminating the need for traditional threaded assembly and reducing installation time on pneumatic and fluid handling systems.
The nickel-plated brass construction with FKM seals delivers reliable performance across a wide operating range from –25 °C to 150 °C, whilst the 30 bar maximum pressure rating suits most low-pressure industrial circuits. The vacuum rating of 755 mm-Hg ensures dependable operation in systems requiring partial vacuum conditions. Supplied in boxes of 10 units, this fitting meets PED requirements and carries FDA chemical nickel plating certification, making it suitable for applications where product purity is critical.
Widely used across healthcare and life sciences facilities as well as general manufacturing environments, the LF3600 banjo fitting serves industries requiring hygienic, efficient fluid and gas handling solutions.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.049 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Specifications Met | UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, RoHS, REACH, ATEX DI: 94/9/EC, FDA 21 CFR (Food), PED |
| Connection 3 Size | n/a |
| Application | Process Control, Fluid Control, Transportation, Pneumatic, Medical, Industrial, In Plant Pneumatic, General Industrial |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Connection 3 Type | n/a |
