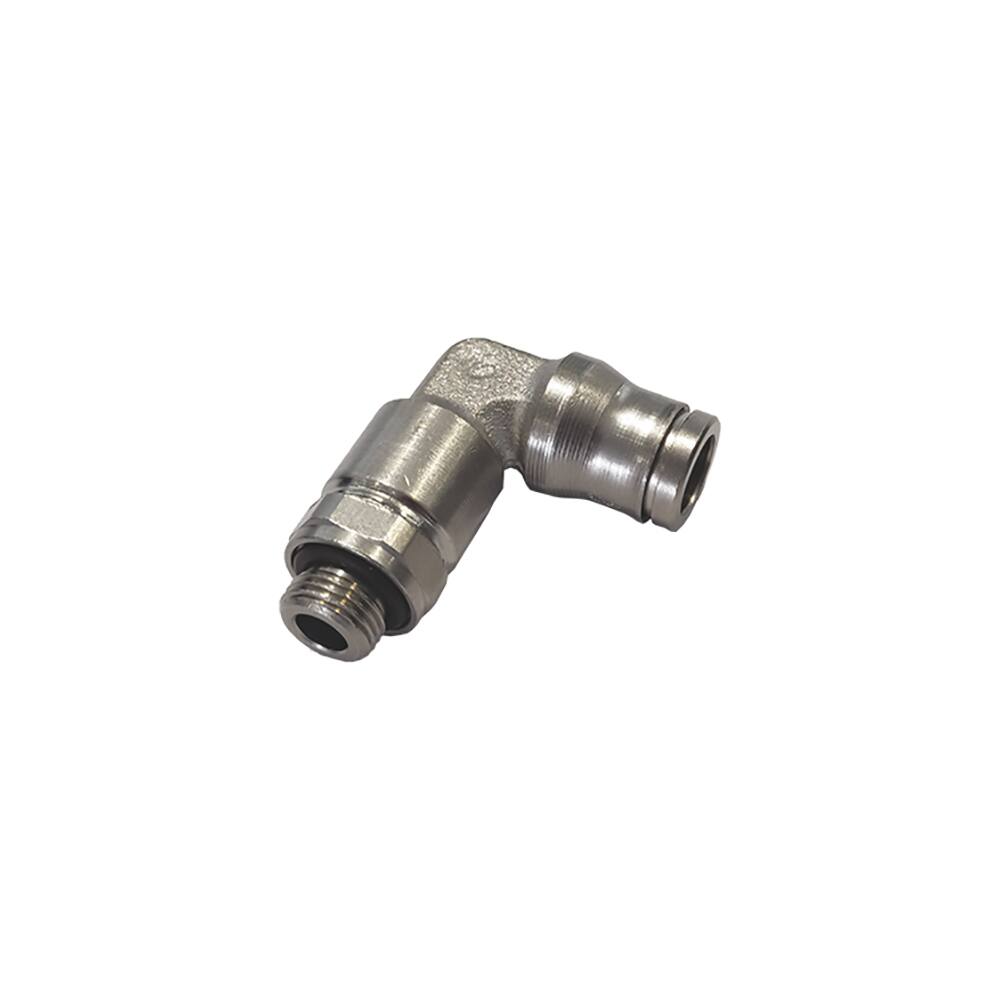

Parker Legris LF3600 6mm - 1/4'' Bspp Male Stud Extended Elbow
Overview
The Parker Legris LF3600 extended elbow is a 90° push-to-connect fitting designed for compressed air systems in automotive manufacturing and plant-wide pneumatic applications. This tube-to-port connector joins 6 mm O.D. tubing to a G 1/4 male BSPP port, making it ideal for routing air lines around machinery and equipment where space constraints or awkward angles demand flexible routing solutions. The fitting's FDA chemical nickel-plated brass body delivers robust durability across operating temperatures from −25 °C to 150 °C, while its FKM seals ensure reliable performance at pressures up to 30 bar. The extended stud design allows easy installation and adjustment, reducing assembly time in fast-paced production environments. Vacuum-rated to 755 mm-Hg, this connector suits instrument air, control circuits, and low-pressure fluid handling across industrial manufacturing, automotive assembly lines, and process automation facilities where dependable, maintenance-free connections are essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.028 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Male BSPP |
| Shape | Elbow 90° |
| Specifications Met | EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), RoHS, FDA 21 CFR, ATEX DI: 94/9/EC, PED, REACH |
| Connection 3 Size | n/a |
| Application | Welding Robots, Food Processing, Printing, Medical Equipment, Misting, In-Plant Automotive |
| Coating | FDA Chemical Nickel-plated |
| Connection 1 Type | Tube |
| Connection 3 Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
