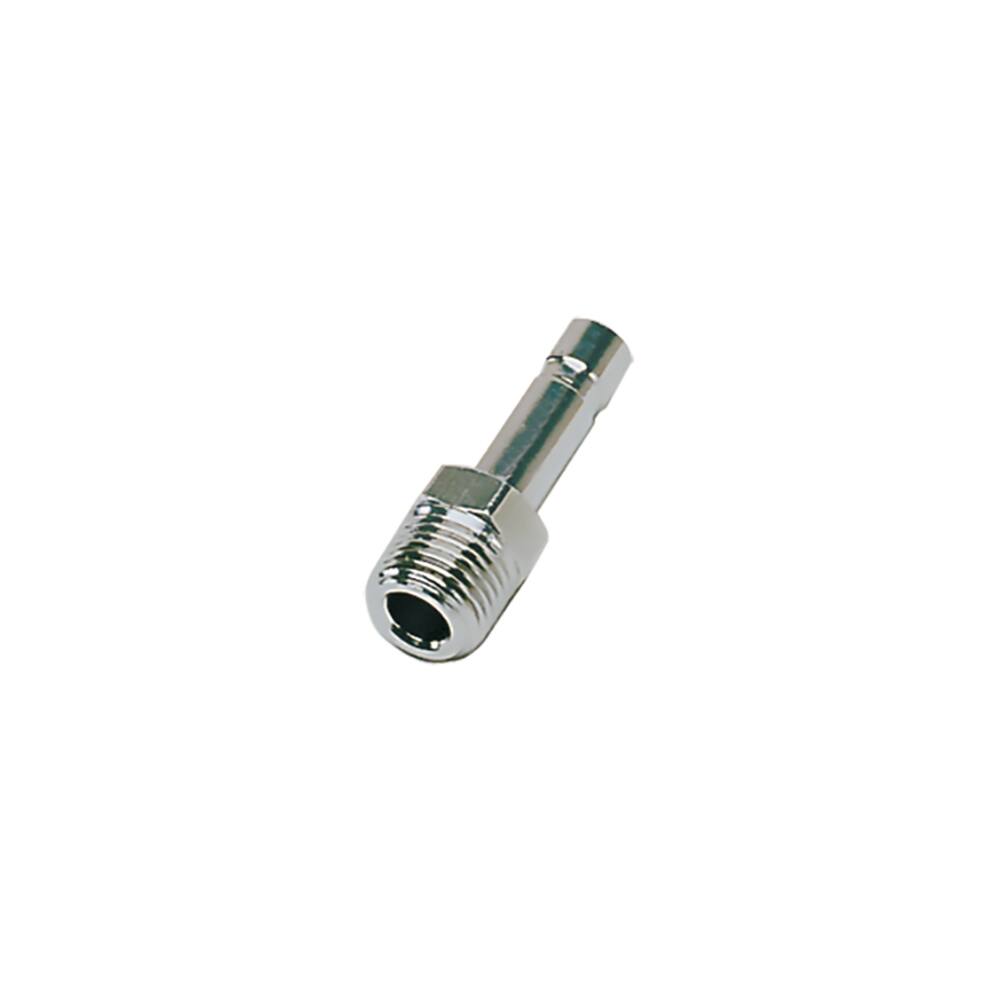

Parker Legris LF3600 6mm - 1/4'' Bspt Male Stud Standpipe
Overview
The Parker Legris LF3600 6mm to 1/4" BSPT male stud standpipe is a push-to-connect fitting designed for lubricant and grease distribution in low-pressure pneumatic systems. This straight stud fitting delivers reliable fluid delivery in confined spaces where compact connections are essential, offering intuitive tube-to-port integration that minimises installation time and reduces leak risk. The nickel-plated brass body provides excellent corrosion resistance whilst maintaining compatibility with a wide range of industrial fluids, and the fitting operates safely across a temperature range of −25 °C to +150 °C at pressures up to 30 bar. The 6mm outer diameter tube connection pairs seamlessly with the R 1/4 male BSPT thread, ensuring secure sealing in both pneumatic and low-pressure applications. Supplied in quantities of ten per box, this REACH-compliant fitting serves industrial processing, automation, food and beverage, and general instrumentation sectors.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.016 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | R 1/4 |
| Connection 2 Type | Male BSPT |
| Shape | Straight |
| Application | Transportation, Pneumatic, Fluid Control, General Industrial, Process Control, Medical, In Plant Pneumatic, Industrial |
| Coating | FDA Chemical Nickel-plated |
| Specifications Met | ATEX DI: 94/9/EC, RoHS, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, PED, FDA 21 CFR (Food), REACH |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
