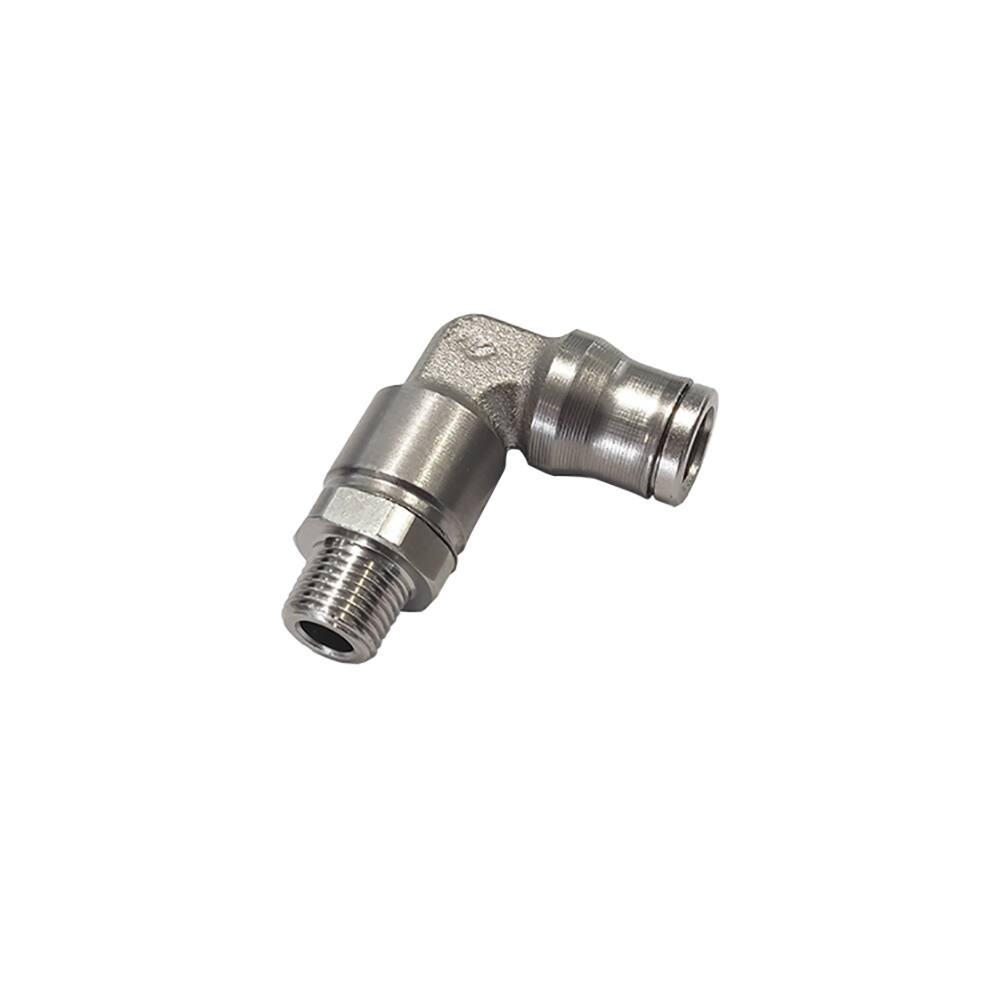

Parker Legris LF3600 6mm - 1/8'' Bspt Male Stud Extended Elbow
Overview
The Parker Legris LF3600 6mm – 1/8" BSPT Male Stud Extended Elbow is a push-to-connect fitting designed for general industrial pneumatic and low-pressure fluid applications.
This 90° elbow facilitates reliable connections between 6mm tubing and 1/8" BSPT male ports, making it ideal for space-constrained installations where directional changes are required. The extended adjustable stud design permits fine-tuning of tube insertion depth, whilst the FDA chemical nickel-plated brass body ensures corrosion resistance and durability in demanding environments. Rated for pressures up to 30 bar and temperatures ranging from −25 °C to 150 °C, the fitting accommodates water and compatible gases across healthcare, life sciences, and process automation sectors.
The FKM seal material provides dependable performance in varied operating conditions, and the compact form factor simplifies system layout and maintenance. Supplied in boxes of ten, these push-to-connect fittings eliminate the need for tools or compression rings, reducing assembly time and installation costs. This fitting serves healthcare facilities, food processing plants, industrial automation systems, and instrument air networks where quick, leak-free connections are paramount.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.024 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | R 1/8 |
| Connection 2 Type | Male BSPT |
| Shape | Elbow 90° |
| Specifications Met | UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, RoHS, REACH, ATEX DI: 94/9/EC, FDA 21 CFR (Food), PED |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Application | Process Control, Fluid Control, Transportation, Pneumatic, Medical, Industrial, In Plant Pneumatic, General Industrial |
| Coating | FDA Chemical Nickel-plated |
| Connection 1 Type | Tube |
