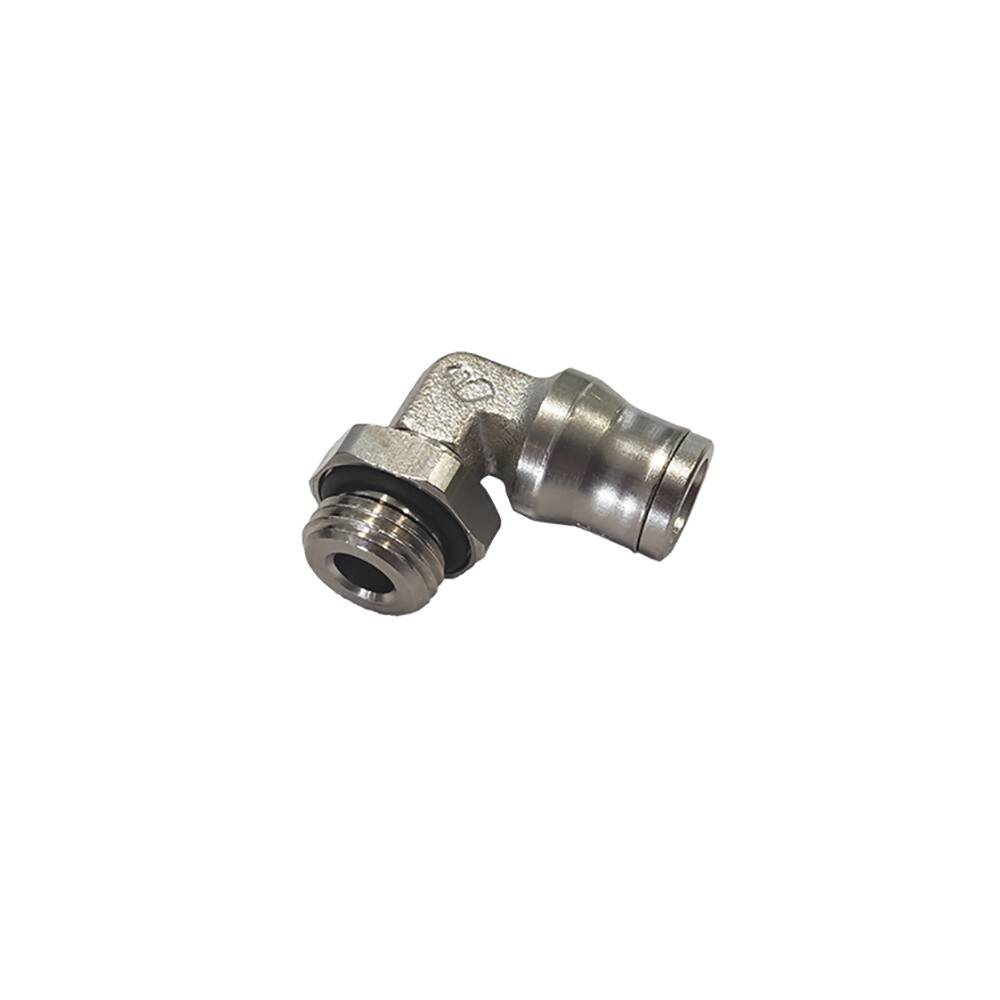

Parker Legris LF3600 8mm - 1/4'' Bspp Male Compact Elbow
Overview
The Parker Legris LF3600 is a compact 90° elbow fitting designed for low-pressure water and medical fluid applications requiring reliable tube-to-port connections.
This push-to-connect fitting bridges 8 mm tube (O.D.) to G 1/4 male BSPP ports, making it ideal for instrument air, process water, and medical gas systems where space is constrained. The brass body features FDA chemical nickel plating for corrosion resistance and compliance with food and pharmaceutical standards, whilst the FKM seal material ensures compatibility across operating temperatures from −25 °C to 150 °C. Rated to 20 bar maximum pressure with a vacuum capability of 755 mm-Hg, the fitting accommodates both positive and negative pressure environments without compromise.
The adjustable stud design allows fine-tuning of port alignment during installation, reducing strain on connected tubing and improving system longevity. Supplied in boxes of ten, this fitting serves medical device manufacturers, industrial processing plants, and hygienic distribution networks across Europe.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.027 kg |
| For Fluid Type | Air (Compressed Air), Lubricants (Grease), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Male BSPP |
| Shape | Elbow 90° |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Application | Industrial, Pneumatic, In Plant Pneumatic, Process Control, Fluid Control, General Industrial, Transportation, Medical |
| Specifications Met | FDA 21 CFR, ATEX DI: 94/9/EC, REACH, PED, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us) |
| Connection 3 Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Coating | FDA Chemical Nickel-plated |
