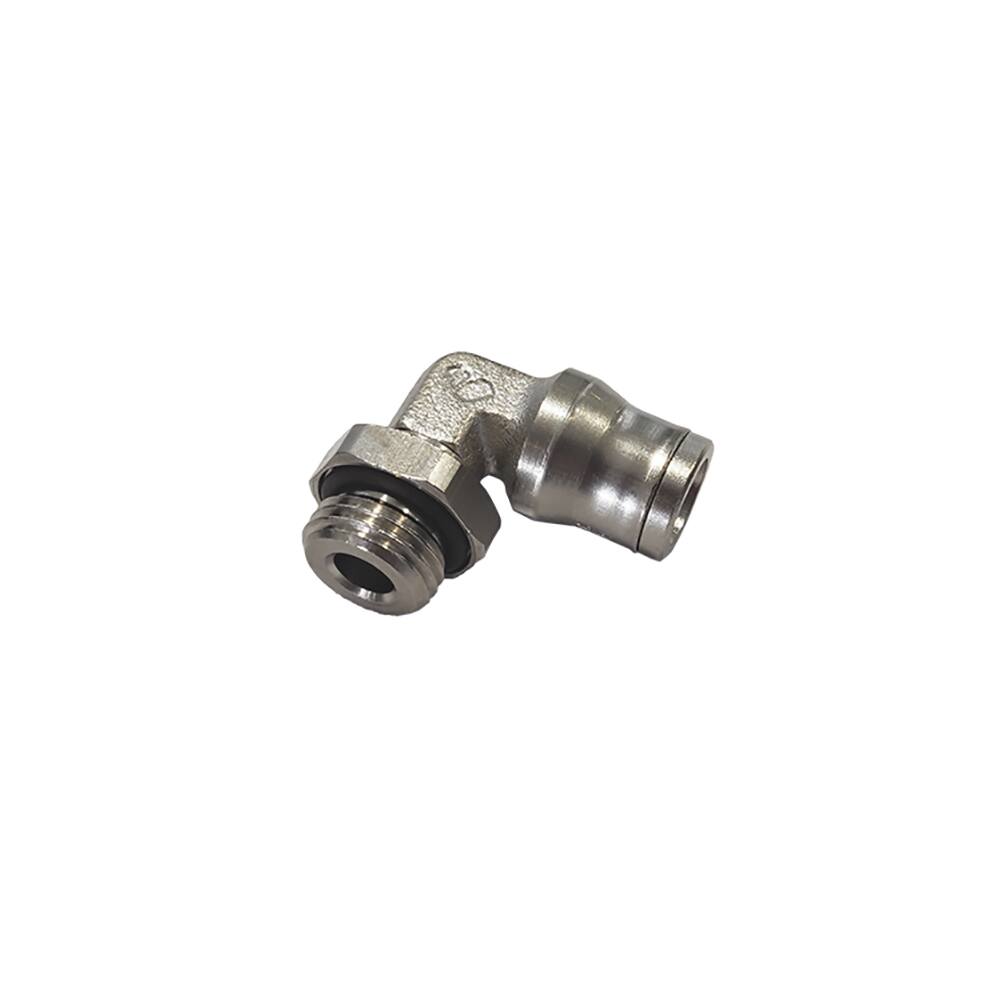

Parker Legris LF3600 12mm - 1/2'' Bspp Male Compact Elbow
Overview
The Parker Legris LF3600 is a 90° compact elbow connector designed to join 12 mm push-to-connect tubing to G 1/2 BSPP male ports in pneumatic and compressed air systems.
This adjustable stud fitting excels in process control applications where space is limited and reliable connections are essential. The push-to-connect technology eliminates the need for tools or fittings adjustments, reducing installation time and minimising leak points. Its FDA chemical nickel-plated brass construction resists corrosion whilst remaining compliant with RoHS directives, making it suitable for demanding environments.
Operating across a temperature range of −25 °C to 150 °C, the fitting maintains a maximum working pressure of 20 bar with an FKM seal for consistent performance. The compact elbow geometry optimises flow paths in tight installations common to automated production lines and instrumentation networks.
Supplied in convenient boxes of five units, this fitting serves food and beverage processing, industrial automation, and general process control applications where durability and precision matter.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.065 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | G 1/2 |
| Connection 2 Type | Male BSPP |
| Shape | Elbow 90° |
| Coating | FDA Chemical Nickel-plated |
| Application | In Plant Pneumatic, Medical, General Industrial, Transportation, Industrial, Pneumatic, Fluid Control, Process Control |
| Specifications Met | PED, REACH, FDA 21 CFR, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, ATEX DI: 94/9/EC, RoHS |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
