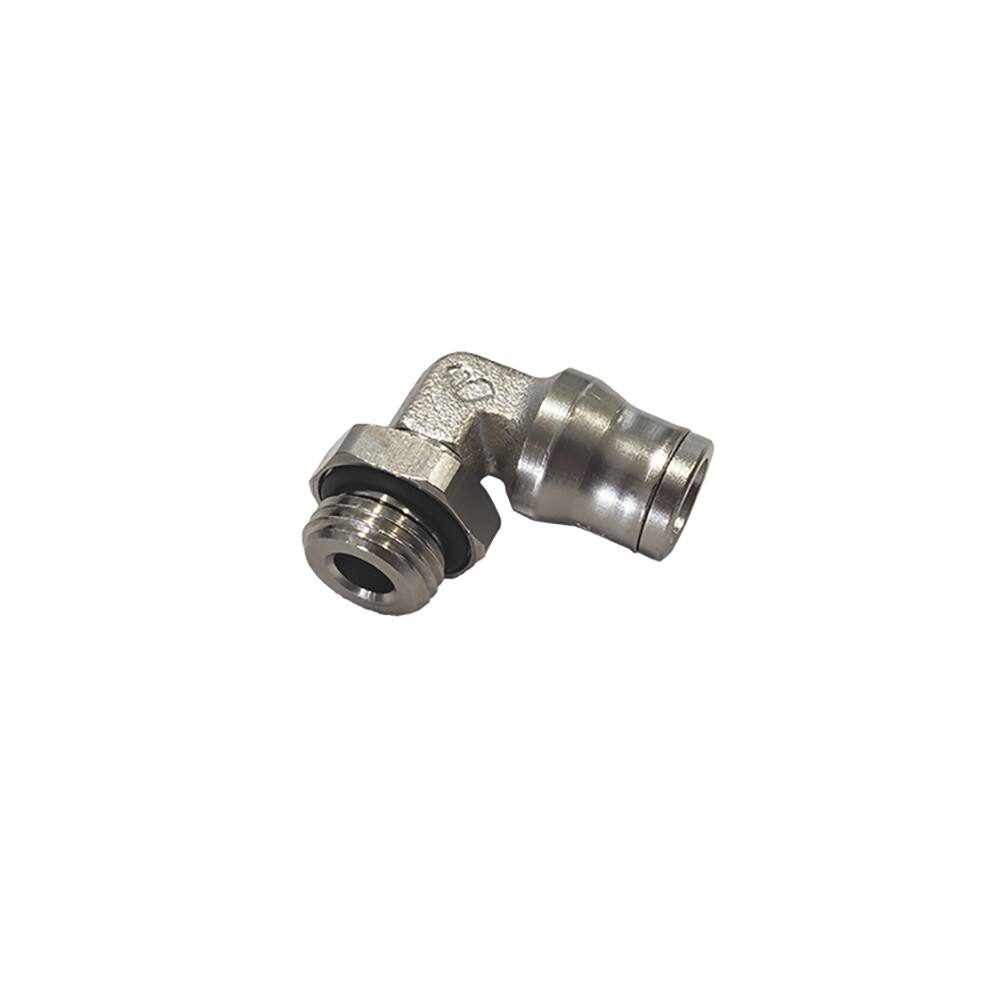

Parker Legris LF3600 12mm - 1/4'' Bspp Male Compact Elbow
Overview
The Parker Legris LF3600 12mm – 1/4" BSPP Male Compact Elbow is a push-to-connect fitting designed for pneumatic and low-pressure fluid applications requiring reliable directional changes in confined spaces.
This 90° elbow fitting simplifies installation in tight layouts where space is at a premium, eliminating the need for separate adapters or rigid pipework bends. The adjustable stud design accommodates 12mm outer diameter tubing whilst connecting to a 1/4" male BSPP port, making it ideal for reconfigurable pneumatic systems and instrument air networks that demand flexibility without sacrificing durability.
Manufactured from FDA chemical nickel-plated brass with FKM seals, the fitting withstands operating pressures up to 20 bar and temperatures ranging from –25°C to 150°C, suiting applications involving compressed air, inert gases, and food-grade lubricants. The nickel plating provides corrosion resistance whilst maintaining hygiene standards for sensitive environments. Supplied in packs of five, this compact elbow serves food and beverage processing, industrial automation, and pneumatic control systems where quick, secure connections are essential.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.05 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Male BSPP |
| Shape | Elbow 90° |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Application | Medical, Transportation, General Industrial, In Plant Pneumatic, Process Control, Industrial, Fluid Control, Pneumatic |
| Specifications Met | REACH, RoHS, UL 94 V-0 (Please Consult Us), PED, FDA 21 CFR, ATEX DI: 94/9/EC, EC RG: 1935/2004 |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Coating | FDA Chemical Nickel-plated |
