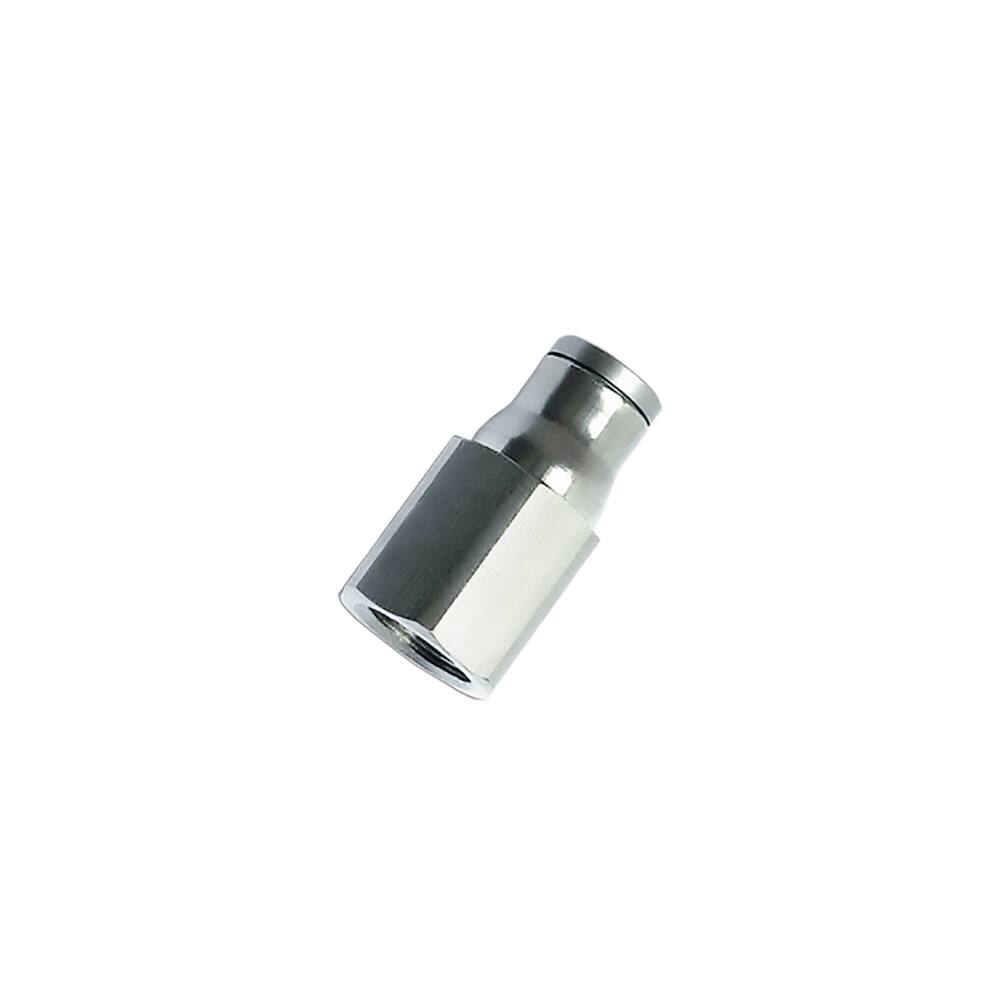

Parker Legris LF3600 8mm - 1/8'' Bspp Female Stud Fitting
Overview
The Parker Legris LF3600 8mm to 1/8" BSPP female stud fitting is a straight push-to-connect connector designed for in-plant pneumatic distribution and compressed air applications.
This nickel-plated brass fitting offers reliable, leak-free connections in general industrial environments. The push-to-connect design eliminates the need for tools, enabling rapid assembly and maintenance whilst the 8mm tube connection pairs seamlessly with standard pneumatic tubing. Rated to 30 bar maximum operating pressure and engineered for temperature ranges between –25 °C and 150 °C, this stud fitting handles typical workshop and production line air systems with confidence. The FKM seals provide chemical compatibility, whilst the FDA chemical nickel-plated brass body resists corrosion in varying humidity conditions and meets UL 94 V-0 flame retardancy specifications.
Supplied in convenient packs of ten, these fittings support industries including manufacturing, food and beverage processing, and automated production systems where dependable pneumatic connections are essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.022 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Swivel |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | G 1/8 |
| Connection 2 Type | Female BSPP |
| Shape | Straight |
| Application | General Industrial, Medical, Fluid Control, Transportation, Pneumatic, Process Control, Industrial, In Plant Pneumatic |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
| Specifications Met | ATEX DI: 94/9/EC, PED, REACH, FDA 21 CFR, RoHS, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us) |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
