R771,78Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 45 days
Maximum Operating Pressure
30 bar
Connection 2 Type
Tube (O.D.)
Connection 1 Type
Tube

Overview

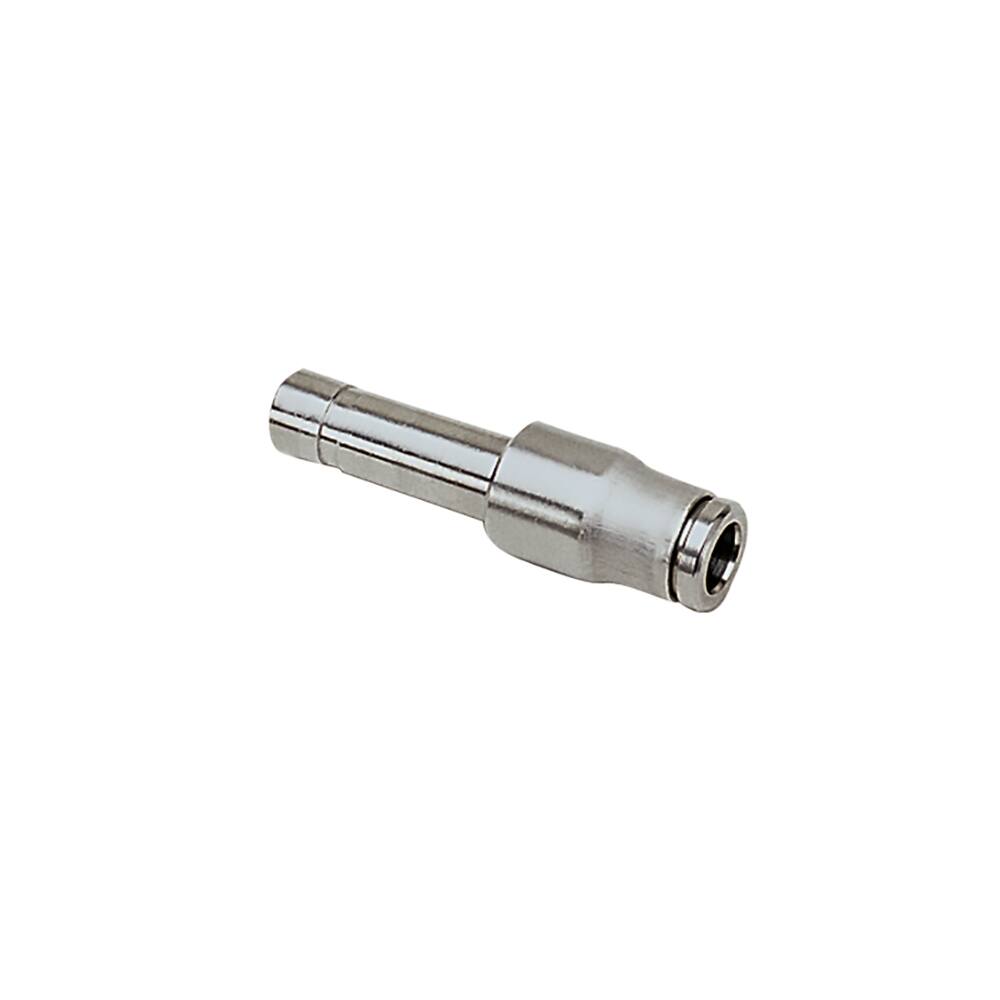

The Parker Legris LF3800 10mm – 12mm Push-In Reducer is a straight stainless steel fitting designed to connect pneumatic tubing of different diameters in low-pressure applications.

This reducer simplifies system assembly by eliminating the need for separate adapters, making it ideal for reconfiguring air distribution networks in process control and instrumentation systems. The push-to-connect design allows for quick, tool-free installation and removal, reducing downtime during maintenance or system modifications. Constructed from stainless steel AISI 316L with FKM seals, the fitting withstands a maximum operating pressure of 435 psi and operates reliably across a temperature range from −25 °C to 302 °F, whilst maintaining vacuum integrity at 1 bar.

The compact 10mm to 12mm bore transition accommodates variable tubing configurations without compromising system performance. Supplied in boxes of two units and compliant with REACH regulations, this fitting serves food and beverage processing, petrochemical handling, and general industrial automation environments where corrosion resistance and consistent performance are essential.

Source: www.parker.com ↗

Specifications

Connection Type Tube Stem to Tube
Maximum Operating Pressure 30 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Weight 0.029 kg
For Fluid Type Other Fluids: Please Consult Us, Water, Air
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube Stem to Tube
Connection 1 Size 10 mm Tube O.D.
Connection 2 Size 12 mm Tube O.D.
Connection 2 Type Tube (O.D.)
Shape Straight
Specifications Met FDA 21 CFR, UL 94 V-0 (Seal), EC 1935/2004, RoHS DI: 2011/65/EC, USDA NSF H1 (Grease), ATEX DI: 94/9/EC, ISO 14743 (Pneumatic Transmissions), PED DI: 97/23/EC, RoHS DI: 2002/95/EC, REACH DI: 1907/2006
Application Medical Equipment, Paper Industry, Chemical Transfer, Pharmaceutical, Food Processing, Petrochemicals
Vacuum Pressure Rating 755 mm-Hg, 1 bar
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.37
