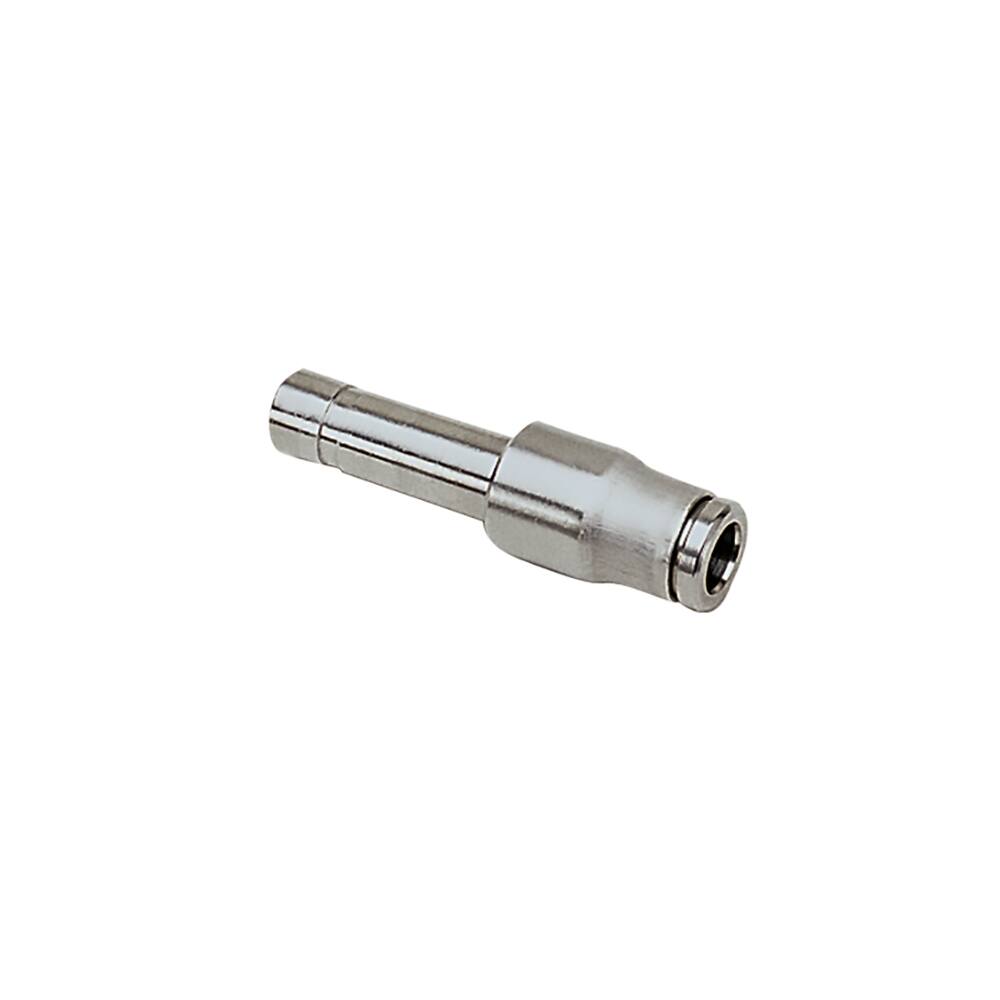

Parker Legris LF3800 4mm - 6mm Push In Reducer
Overview
The Parker Legris LF3800 4mm–6mm Push-In Reducer is a straight stainless steel connector designed for low-pressure fluid and pneumatic applications requiring reliable tube-to-tube transitions across different bore sizes.
This push-to-connect fitting simplifies system assembly by eliminating the need for tools or thread sealant, making it ideal for applications where quick disconnection and reconnection are necessary. Constructed from stainless steel AISI 316L with an FKM seal, the reducer withstands operating pressures up to 435 psi and temperatures ranging from –13 °F to 302 °F, ensuring durability in demanding environments. The compact design accommodates 4 mm and 6 mm tube outer diameters, providing flexibility in mixed-bore installations.
Compliant with RoHS Directive 2011/65/EC and rated for 1 bar vacuum, this fitting is well-suited to food and beverage processing, petrochemical facilities, and other industrial sectors where corrosion resistance and hygienic design are essential.
Specifications
| Connection Type | Tube Stem to Tube |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 10 to 27 mm |
| Weight | 0.009 kg |
| For Fluid Type | Air, Other Fluids: Please Consult Us, Water |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube Stem to Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | 6 mm Tube O.D. |
| Connection 2 Type | Tube (O.D.) |
| Shape | Straight |
| Application | Medical Equipment, Chemical Transfer, Paper Industry, Pharmaceutical, Food Processing, Petrochemicals |
| Specifications Met | REACH DI: 1907/2006, USDA NSF H1 (Grease), UL 94 V-0 (Seal), ISO 14743 (Pneumatic Transmissions), EC 1935/2004, PED DI: 97/23/EC, FDA 21 CFR, ATEX DI: 94/9/EC, RoHS DI: 2002/95/EC, RoHS DI: 2011/65/EC |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
| Connection 1 Type | Tube |
