Maximum Operating Pressure
20 bar
Connection 2 Type
BSPT, Male
Connection 1 Type
Tube

Overview

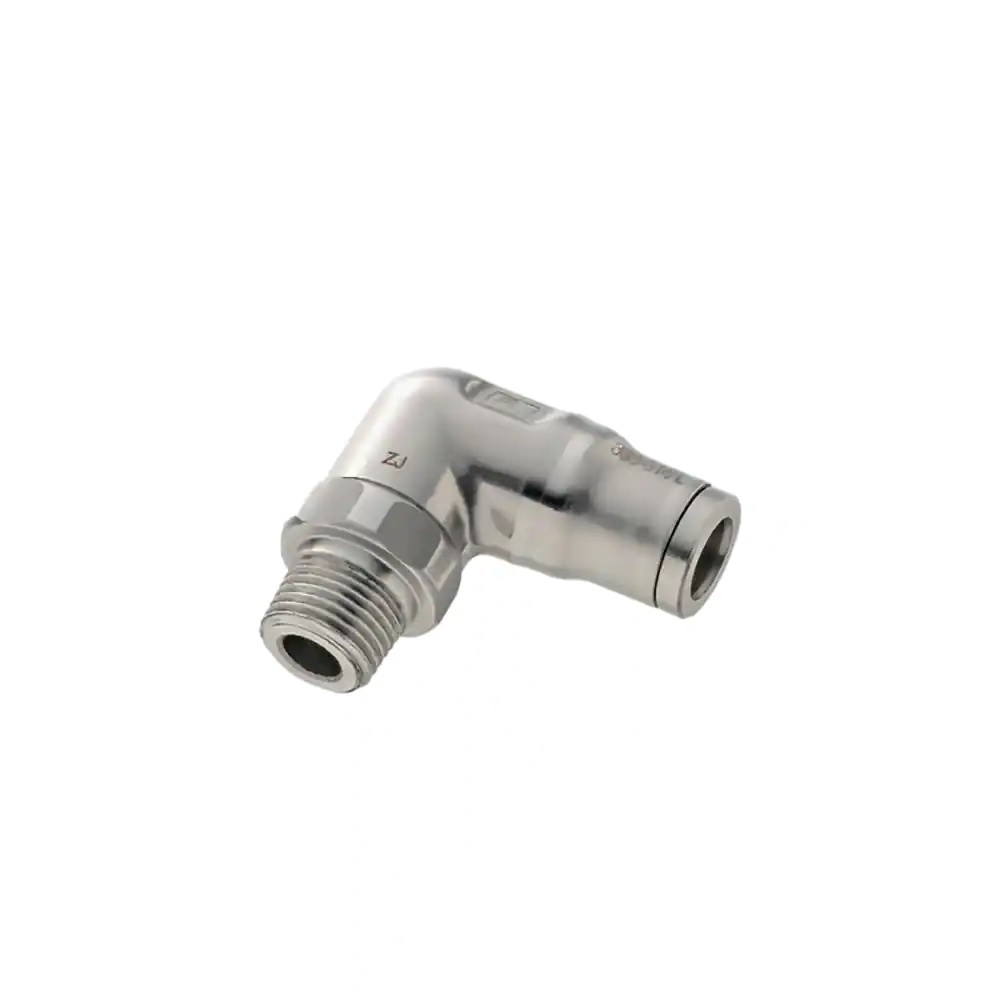

The Parker Legris LF3800 10mm to 3/8" BSPT male compact stud elbow is a 90° push-to-connect fitting designed for chemical transfer applications in low-pressure pneumatic systems.

This stainless steel 316L elbow offers reliable performance across demanding environments, making it ideal for applications requiring corrosion resistance and hygienic fluid handling. The FKM seal material ensures compatibility with a wide range of fluids, whilst the robust construction supports maximum operating pressures up to 290 psi and temperatures from –25 °C to 150 °C. With a 10mm tube connection on one end and a 3/8" BSPT male thread port on the other, this compact design integrates seamlessly into instrumentation and process air systems where space is limited. The 19mm hex size facilitates easy installation and maintenance.

Compliant with PED DI: 97/23/EC and rated to 755 mm-Hg vacuum, this fitting serves pharmaceutical, chemical processing, and precision manufacturing sectors where material integrity and performance consistency are paramount.

Source: www.parker.com ↗

Specifications

Connection Type Tube to Port
Maximum Operating Pressure 20 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 19 mm
Weight 0.067 kg
For Fluid Type Air, Water, Other Fluids: Please Consult Us
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube to Port
Connection 1 Size 10 mm Tube O.D.
Connection 2 Size R 3/8 inch Thread
Connection 2 Type BSPT, Male
Shape Elbow 90°
Application Food Processing, Petrochemicals, Paper Industry, Pharmaceutical, Medical Equipment, Chemical Transfer
Specifications Met FDA 21 CFR, USDA NSF H1 (Grease), UL 94 V-0 (Seal), REACH DI: 1907/2006, EC 1935/2004, RoHS DI: 2002/95/EC, ATEX DI: 94/9/EC, ISO 14743 (Pneumatic Transmissions), RoHS DI: 2011/65/EC, PED DI: 97/23/EC
Vacuum Pressure Rating 1 bar, 755 mm-Hg
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.36
