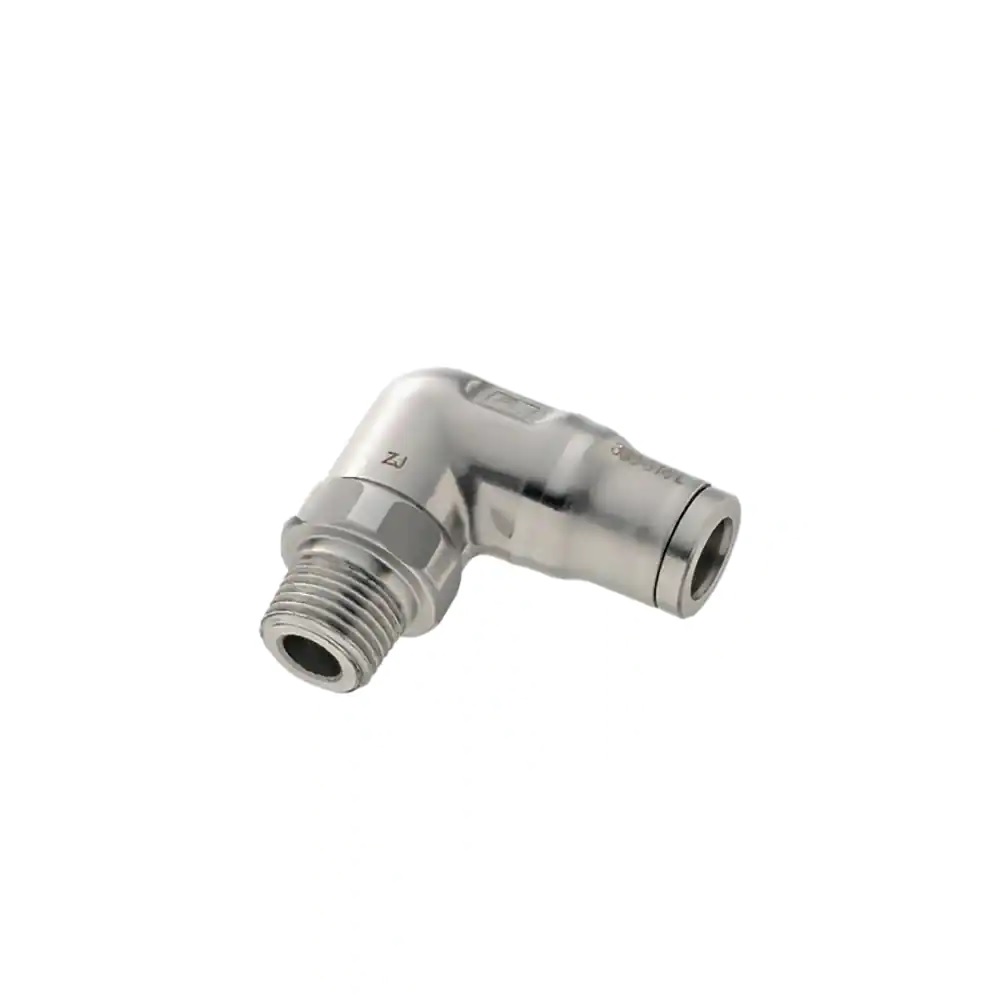

Parker Legris LF3800 6mm - 1/4"Bspt Male Compact Stud Elbow
Overview
The Parker Legris LF3800 compact stud elbow is a 90° push-to-connect fitting that joins 6 mm tubing to R 1/4" male BSPT ports in low-pressure pneumatic and fluid systems. This stainless steel 316L body elbow is ideal for space-constrained applications where direct connections are impractical, offering reliable performance across food and beverage processing environments and paper manufacturing facilities. Rated for 20 bar maximum operating pressure with a 1 bar vacuum rating, the fitting accommodates a broad temperature range from -13 °F to 302 °F, making it suitable for both heated and chilled system configurations. The FKM seal material ensures chemical compatibility across a range of fluids, whilst the compact design minimises installation footprint without compromising durability. Supplied in packs of two units with a 13 mm hex size for wrench engagement, this fitting serves critical roles in industrial automation, process control, and instrument air distribution across food processing, beverage production, and pulp and paper applications.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 20 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 13 mm |
| Weight | 0.032 kg |
| For Fluid Type | Water, Air, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Elbow 90° |
| Specifications Met | RoHS DI: 2002/95/EC, FDA 21 CFR, ATEX DI: 94/9/EC, PED DI: 97/23/EC, REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), UL 94 V-0 (Seal), EC 1935/2004, USDA NSF H1 (Grease), RoHS DI: 2011/65/EC |
| Application | Chemical Transfer, Food Processing, Medical Equipment, Pharmaceutical, Petrochemicals, Paper Industry |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
