R840,29Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · 9 available · ships from Johannesburg
Maximum Operating Pressure
20 bar
Connection 2 Type
Male, BSPT
Connection 1 Type
Tube

Overview

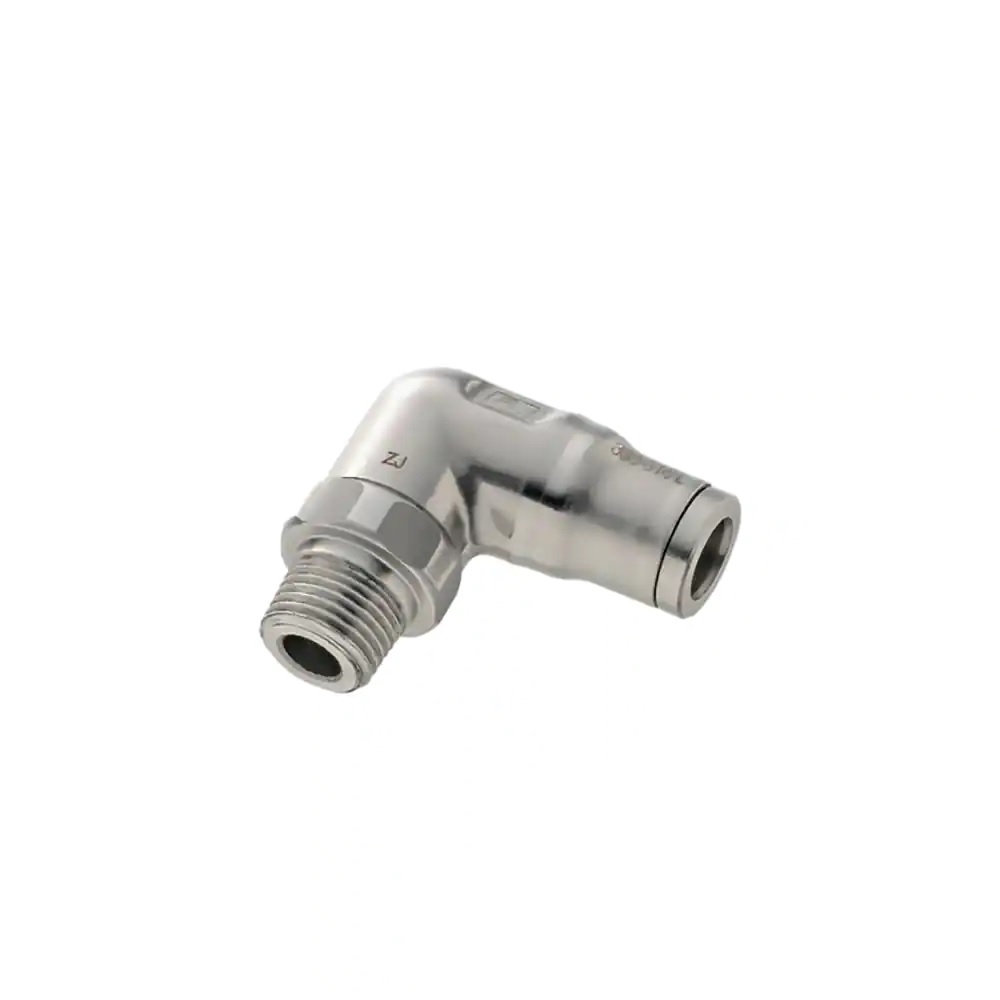

The Parker Legris LF3800 8mm to 1/8" BSPT male compact stud elbow is a push-to-connect fitting designed for pharmaceutical and chemical processing applications requiring reliable low-pressure fluid distribution.

This 90° elbow fitting simplifies installation in space-constrained pneumatic systems by combining tube and port connections in a single compact component. The stainless steel AISI 316L body with FKM seal delivers excellent corrosion resistance and chemical compatibility across operating temperatures from −25 °C to 150 °C, making it well-suited to demanding process environments. With a maximum working pressure of 290 psi and vacuum rating of 14.5 psi, it handles both positive and negative pressure applications safely.

The 8 mm tube connection accommodates standard tubing, whilst the R 1/8 male BSPT thread ensures secure integration into existing port configurations. The 15 mm hex size allows easy wrench engagement during installation and maintenance. Supplied as a pack of two units, this fitting meets UL 94 V-0 flame-resistance standards for the seal.

Ideal for water-based systems in instrument air, process control, and automated fluid handling across pharmaceutical manufacturing, chemical processing, and food production facilities.

Source: www.parker.com ↗

Specifications

Connection Type Tube to Port
Maximum Operating Pressure 20 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 15 mm
Weight 0.036 kg
For Fluid Type Air, Other Fluids: Please Consult Us, Water
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube to Port
Connection 1 Size 8 mm Tube O.D.
Connection 2 Size R 1/8 inch Thread
Connection 2 Type Male, BSPT
Shape Elbow 90°
Vacuum Pressure Rating 1 bar, 755 mm-Hg
Specifications Met REACH DI: 1907/2006, EC 1935/2004, RoHS DI: 2011/65/EC, USDA NSF H1 (Grease), RoHS DI: 2002/95/EC, ATEX DI: 94/9/EC, FDA 21 CFR, PED DI: 97/23/EC, ISO 14743 (Pneumatic Transmissions), UL 94 V-0 (Seal)
Connection 1 Type Tube
Application Chemical Transfer, Medical Equipment, Petrochemicals, Paper Industry, Food Processing, Pharmaceutical
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.36
