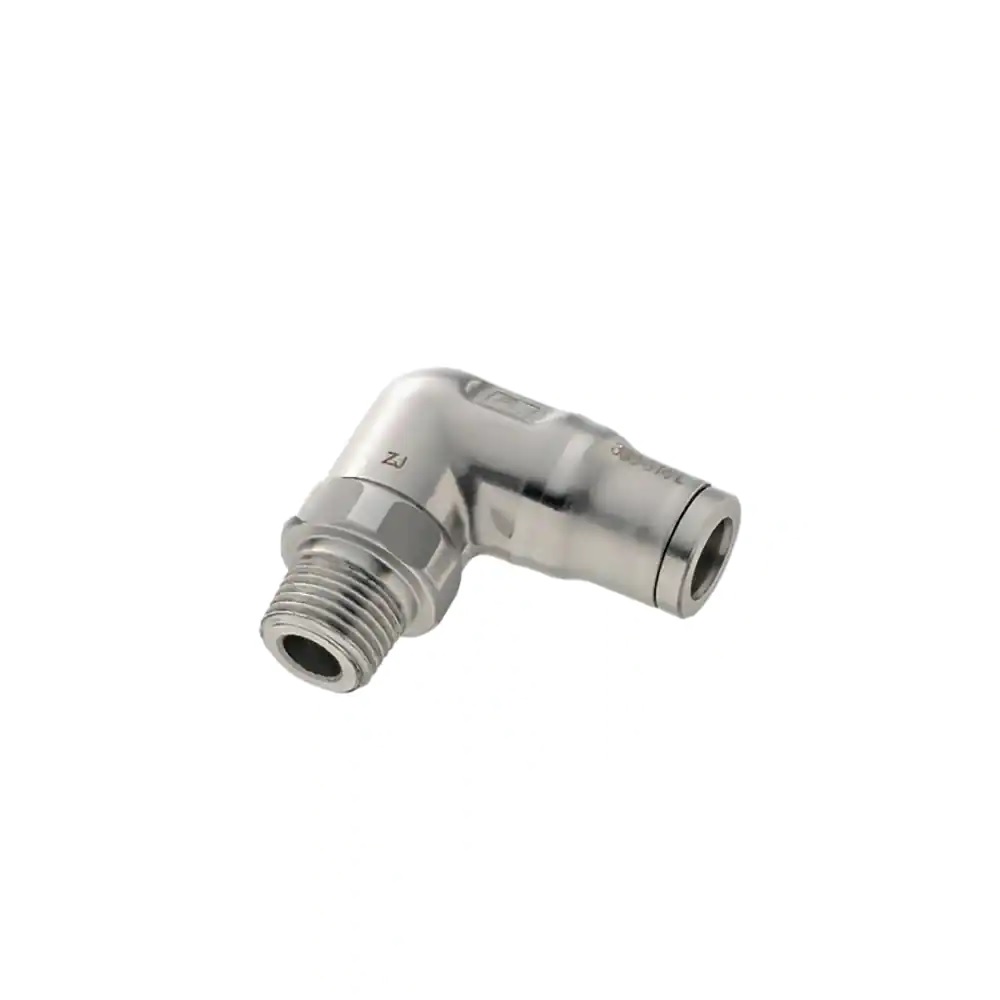

Parker Legris LF3800 4mm - 1/4"Bspt Male Compact Stud Elbow
Overview
The Parker Legris LF3800 compact stud elbow is a push-to-connect fitting engineered for pharmaceutical and low-pressure pneumatic applications requiring corrosion resistance and reliability.
This 90° elbow connects 4 mm tubing to a 1/4" BSPT male port, making it ideal for instrument air systems, process gas distribution, and fluid transfer where space is constrained. The body is manufactured from stainless steel AISI 316L, which resists corrosion in demanding environments and meets ISO 14743 standards for pneumatic transmissions. Rated to 290 psi maximum operating pressure with a vacuum rating of 1 bar, the fitting performs across a wide temperature range from −25 °C to 302 °F. The 13 mm hex size permits straightforward installation and maintenance using standard tooling, whilst the FKM seal material ensures reliable, leak-free operation across diverse fluid types.
Ideal for pharmaceutical production lines, laboratory instrumentation, and medical device manufacturing where material compatibility and durability are paramount.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 20 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 13 mm |
| Weight | 0.018 kg |
| For Fluid Type | Air, Water, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Elbow 90° |
| Application | Petrochemicals, Medical Equipment, Food Processing, Paper Industry, Chemical Transfer, Pharmaceutical |
| Specifications Met | UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, EC 1935/2004, REACH DI: 1907/2006, FDA 21 CFR, RoHS DI: 2002/95/EC, PED DI: 97/23/EC, USDA NSF H1 (Grease), ATEX DI: 94/9/EC, ISO 14743 (Pneumatic Transmissions) |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
| Connection 1 Type | Tube |
