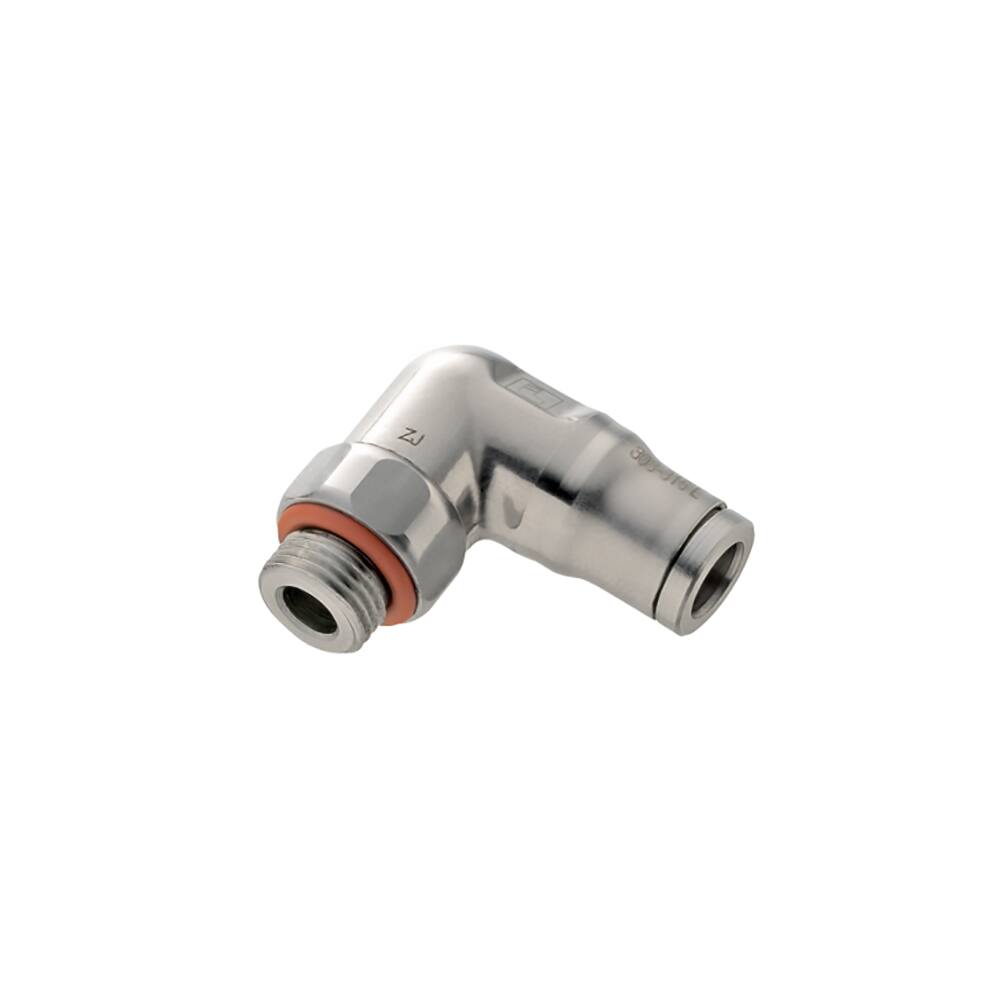

Parker Legris LF3800 12mm - 1/4"Bspp Male Compact Stud Elbow
Overview
The Parker Legris LF3800 12mm to 1/4" BSPP male compact stud elbow is a 90-degree push-to-connect fitting designed for medical equipment and low-pressure pneumatic applications requiring reliable fluid handling.
This stainless steel 316L fitting delivers robust performance across demanding environments, offering corrosion resistance and durability where hygiene and material integrity matter. The compact elbow configuration optimises space-constrained installations whilst maintaining secure tube-to-port connections using simple push-fit technology. With a maximum operating pressure of 20 bar and temperature range from −13°C to 150°C, it accommodates both ambient and elevated-temperature system requirements. The FKM seals ensure consistent performance whilst the 22 mm hex size facilitates straightforward installation and maintenance.
Compliant with ISO 14743 pneumatic transmission standards, this fitting serves the medical device, analytical instrumentation, and process control sectors where precision fluid routing and material compatibility are paramount.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 20 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 22 mm |
| Weight | 0.077 kg |
| For Fluid Type | Air, Other Fluids: Please Consult Us, Water |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | G 1/4 inch Thread |
| Connection 2 Type | Male, BSPP |
| Shape | Elbow 90° |
| Specifications Met | ATEX DI: 94/9/EC, PED DI: 97/23/EC, USDA NSF H1 (Grease), RoHS DI: 2002/95/EC, RoHS DI: 2011/65/EC, EC 1935/2004, UL 94 V-0 (Seal), FDA 21 CFR, REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions) |
| Connection 1 Type | Tube |
| Application | Petrochemicals, Food Processing, Pharmaceutical, Paper Industry, Chemical Transfer, Medical Equipment |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
