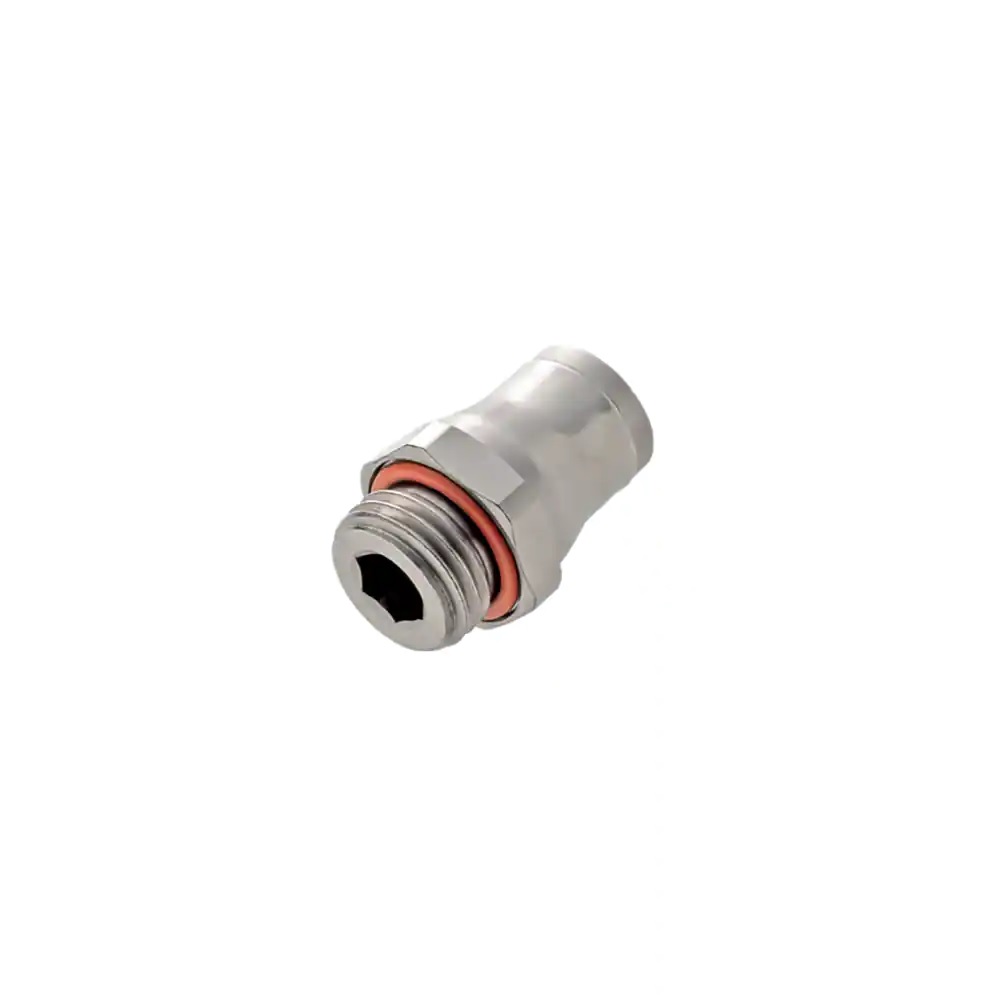

Parker Legris LF3800 12mm - 3/8" Bspp Male Stud
Overview
The Parker Legris LF3800 is a stainless steel push-to-connect male stud fitting designed for medical equipment and pneumatic systems requiring corrosion resistance and reliability.
This 12 mm to 3/8" BSPP straight stud fitting excels in low-pressure applications where quick, tool-free connections are essential. The push-to-connect technology eliminates the need for wrenches or thread sealant, reducing assembly time and maintenance downtime. With a maximum operating pressure of 30 bar and temperature range from −25 °C to 302 °F, the fitting performs consistently across diverse environments.
Manufactured from stainless steel AISI 316L with an FKM seal, this fitting resists corrosion and contamination, making it ideal for hygienic applications and demanding industrial settings. The 21 mm hex size accommodates standard tooling where occasional disconnection or service is required. RoHS-compliant construction ensures it meets modern environmental standards.
Widely specified in food and beverage processing, medical device manufacturing, and instrument air systems, this fitting provides dependable performance where durability and cleanability matter.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 21 mm |
| Weight | 0.034 kg |
| For Fluid Type | Water, Air, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | G 3/8 inch Thread |
| Connection 2 Type | BSPP, Male |
| Shape | Straight |
| Application | Petrochemicals, Food Processing, Chemical Transfer, Pharmaceutical, Paper Industry, Medical Equipment |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
| Specifications Met | UL 94 V-0 (Seal), EC 1935/2004, ATEX DI: 94/9/EC, PED DI: 97/23/EC, USDA NSF H1 (Grease), REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), RoHS DI: 2011/65/EC, FDA 21 CFR, RoHS DI: 2002/95/EC |
| Connection 1 Type | Tube |
