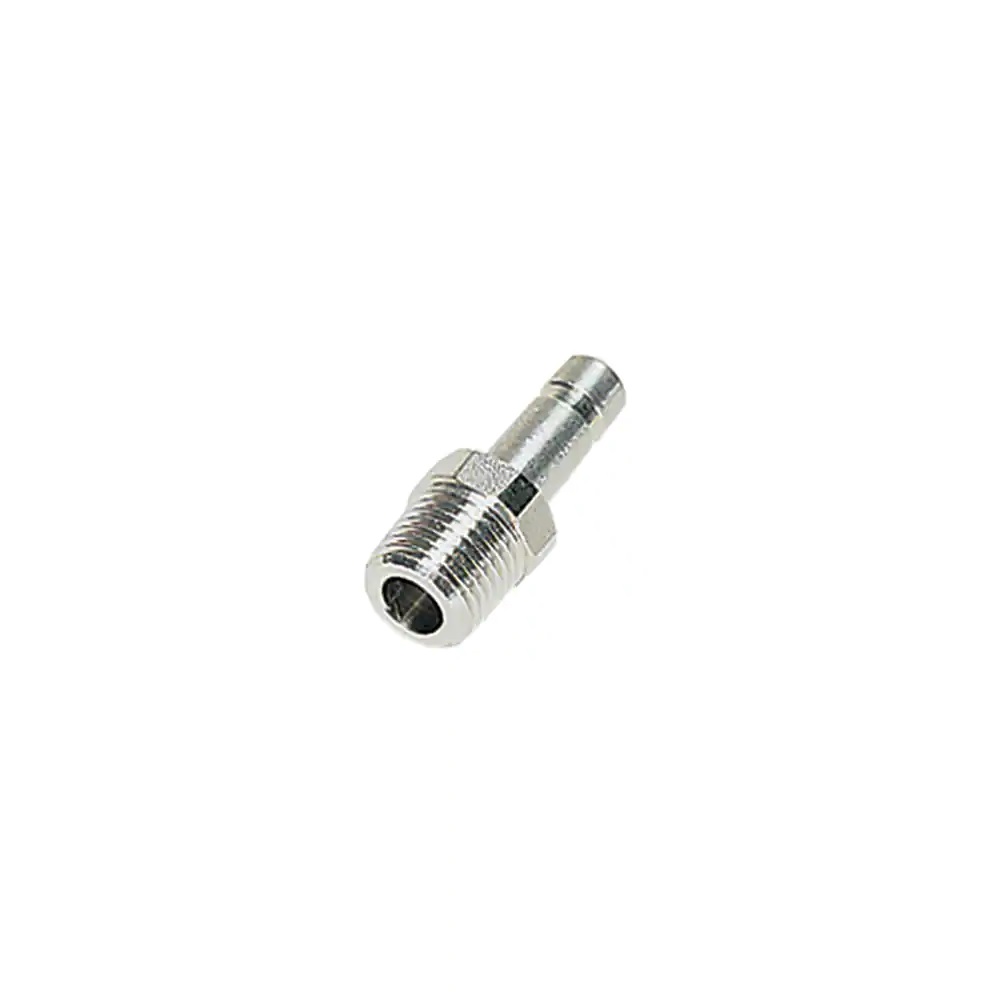

Parker Legris LF3800 12mm - 3/8" Bspt Male Stud Standpipe
Overview
The Parker Legris LF3800 12mm to 3/8" BSPT male stud standpipe is a push-to-connect fitting designed for chemical transfer and low-pressure pneumatic applications. This straight configuration coupling connects 12mm O.D. tubing to a 3/8" male BSPT port, making it ideal for instrument air, process air, and chemical handling systems where reliable, leak-free connections are essential. Constructed from stainless steel AISI 316L with FKM seals, the fitting withstands operating pressures up to 435 psi and maintains performance across a wide temperature range from -25°C to 302°F, whilst maintaining a vacuum rating of 14.5 psi for sealed-system applications. The push-to-connect design eliminates the need for tools or adapters, reducing installation time and operator error in field assembly. Each unit ships in boxes of two and carries ATEX DI certification for use in potentially explosive atmospheres. This fitting serves chemical processing plants, industrial automation facilities, and any operation requiring ATEX-compliant, corrosion-resistant connections in demanding pneumatic environments.
Specifications
| Connection Type | Tube Stem to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 22 mm |
| Weight | 0.022 kg |
| For Fluid Type | Water, Other Fluids: Please Consult Us, Air |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | R 3/8 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Straight |
| Application | Medical Equipment, Food Processing, Pharmaceutical, Petrochemicals, Paper Industry, Chemical Transfer |
| Specifications Met | EC 1935/2004, REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), FDA 21 CFR, PED DI: 97/23/EC, UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, RoHS DI: 2002/95/EC, USDA NSF H1 (Grease), ATEX DI: 94/9/EC |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
