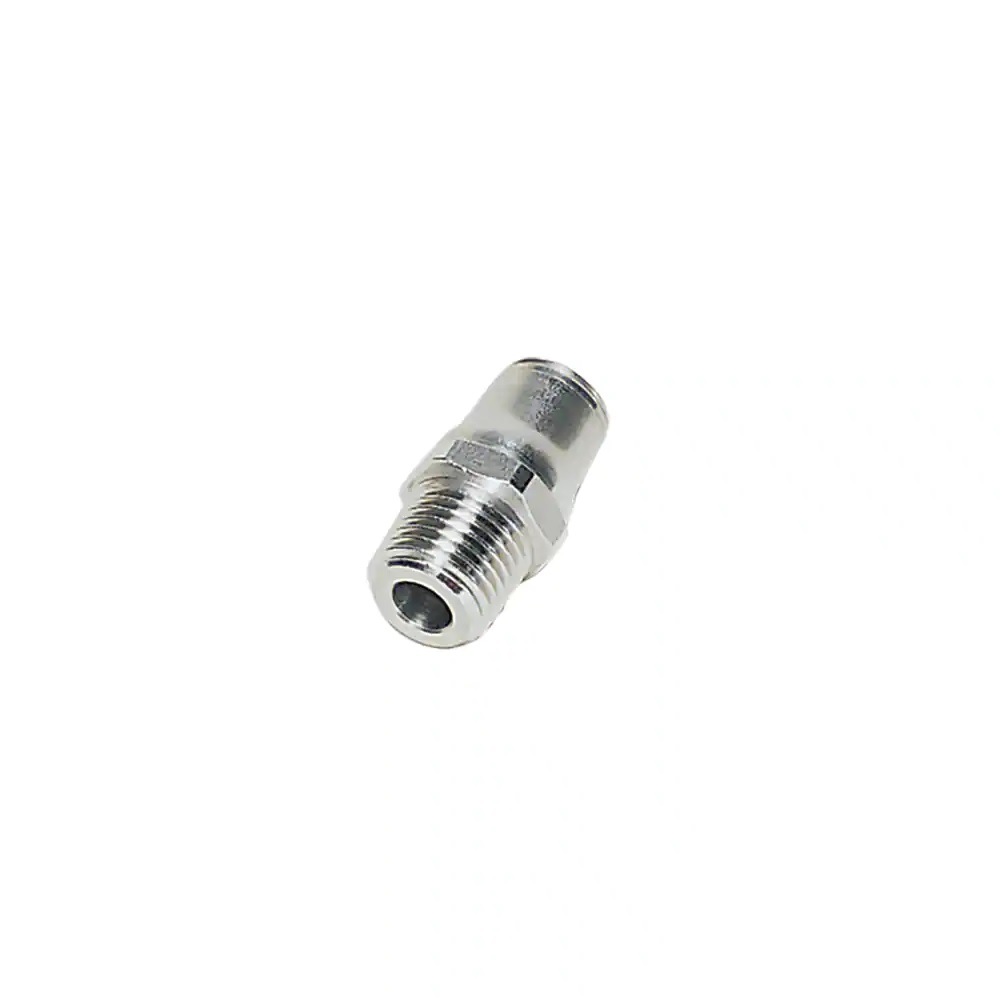

Parker Legris LF3800 12mm - 3/8"Bspt Male Stud
Overview
The Parker Legris LF3800 12mm to 3/8" BSPT male stud is a push-to-connect fitting engineered for water and pneumatic applications in demanding industrial environments.
This straight stud fitting offers reliable tube-to-port connections in low-pressure fluid systems, delivering a maximum operating pressure of 435 psi and operating temperature range from −13 °F to 302 °F. Constructed from stainless steel AISI 316L with an FKM seal, it provides excellent corrosion resistance and durability in petrochemical and medical settings where material integrity is critical. The 12mm tube connection mates with a R 3/8 BSPT port, whilst the 22mm hex size facilitates straightforward installation and maintenance. With a vacuum rating of 755 mm-Hg, this fitting accommodates both pressurised and evacuated circuits. Supplied as two units per box, it meets RoHS directive 2002/95/EC for hazardous substance compliance.
Ideal for process control, instrumentation, and medical gas distribution systems across industrial automation and process manufacturing sectors.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 22 mm |
| Weight | 0.038 kg |
| For Fluid Type | Air, Other Fluids: Please Consult Us, Water |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | R 3/8 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Straight |
| Application | Pharmaceutical, Medical Equipment, Food Processing, Chemical Transfer, Paper Industry, Petrochemicals |
| Specifications Met | ATEX DI: 94/9/EC, UL 94 V-0 (Seal), ISO 14743 (Pneumatic Transmissions), REACH DI: 1907/2006, USDA NSF H1 (Grease), FDA 21 CFR, PED DI: 97/23/EC, RoHS DI: 2011/65/EC, EC 1935/2004, RoHS DI: 2002/95/EC |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
| Connection 1 Type | Tube |
