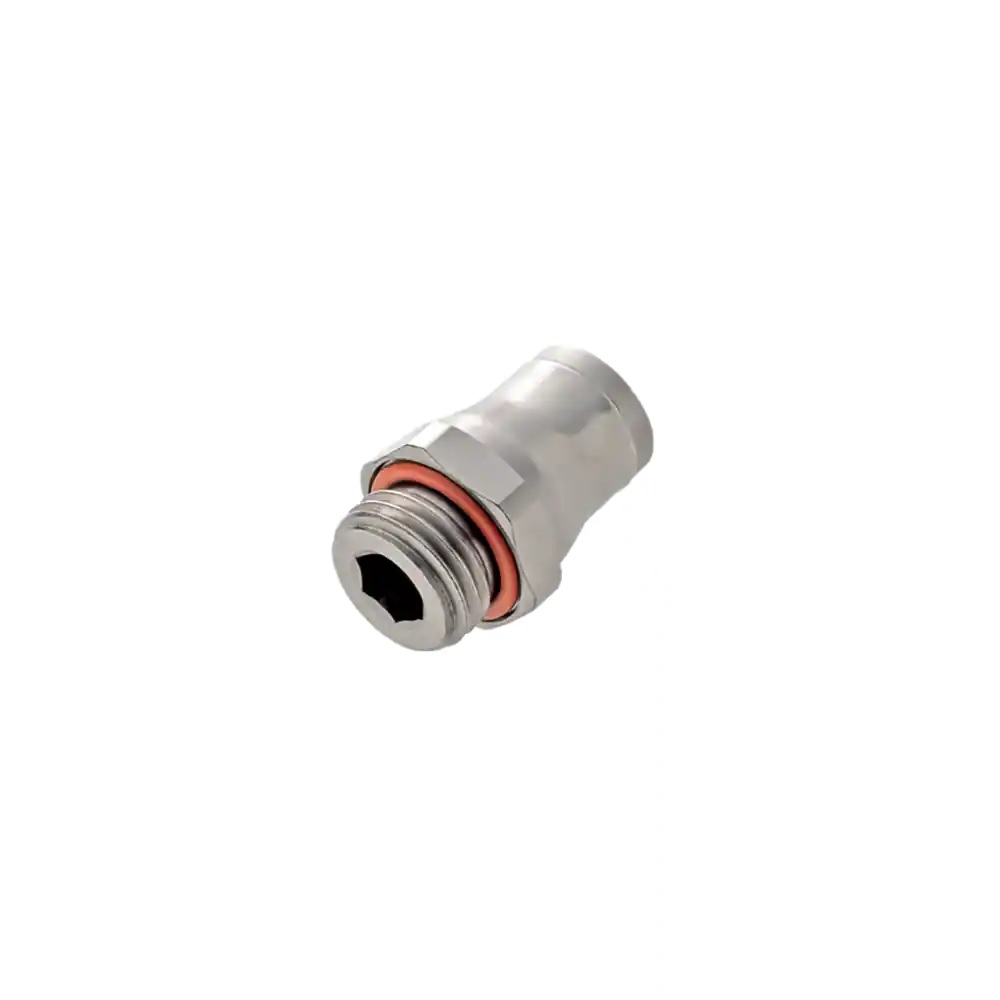

Parker Legris LF3800 4mm - 1/8"Bspp Male Stud
Overview
The Parker Legris LF3800 is a push-to-connect stud fitting designed for medical equipment and hygienic applications requiring reliable low-pressure fluid connections.
This straight connector joins 4 mm tubing to a 1/8" BSPP male port, making it ideal for instrument air, process gases, and controlled fluid transfer in systems operating up to 30 bar. The body is machined from stainless steel AISI 316L, which resists corrosion and meets stringent food and beverage hygiene standards, whilst the FKM seal provides reliable performance across temperatures ranging from –13 °F to 150 °C. The push-to-connect design eliminates the need for tools during assembly, reducing installation time on production lines and medical devices. With a 13 mm hex size for wrench backup and a vacuum rating of 755 mm-Hg, this fitting performs consistently in both positive and negative pressure environments. Supplied in boxes of two, the LF3800 stud fitting serves the medical device, food and beverage processing, and pharmaceutical manufacturing sectors where durability and sanitary design are paramount.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 13 mm |
| Weight | 0.009 kg |
| For Fluid Type | Air, Water, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | G 1/8 inch Thread |
| Connection 2 Type | Male, BSPP |
| Shape | Straight |
| Application | Food Processing, Pharmaceutical, Petrochemicals, Chemical Transfer, Paper Industry, Medical Equipment |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
| Specifications Met | REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), EC 1935/2004, FDA 21 CFR, RoHS DI: 2002/95/EC, UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, USDA NSF H1 (Grease), ATEX DI: 94/9/EC, PED DI: 97/23/EC |
| Connection 1 Type | Tube |
