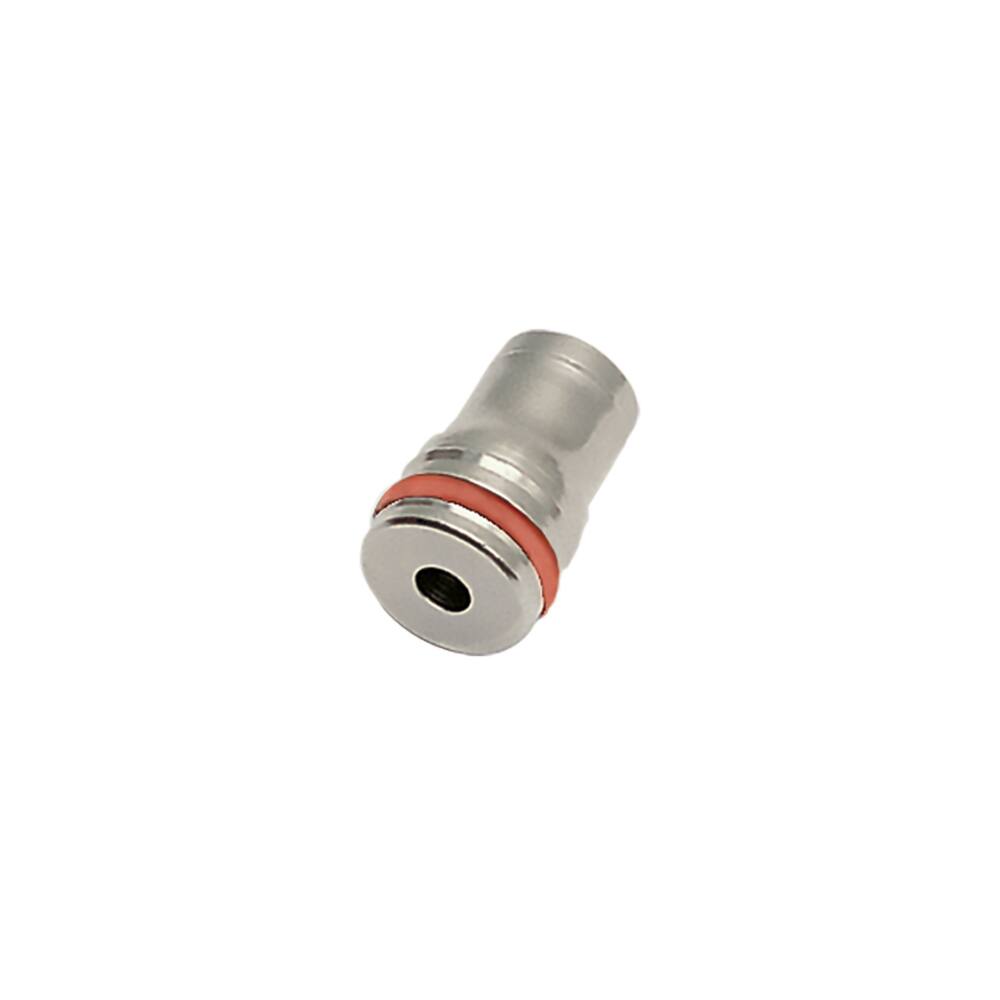

Parker Legris LF3800 4mm Catridge Insert
Overview
The Parker Legris LF3800 4mm Cartridge Insert is a stainless steel push-to-connect fitting designed for vacuum and low-pressure fluid applications.
This cartridge insert excels in systems requiring reliable, maintenance-free connections across a broad temperature range from −20 °C to 120 °C. It accommodates 4 mm O.D. tubing and operates safely at pressures up to 30 barg, making it ideal for instrument air, process control lines, and general pneumatic distribution networks. The body is manufactured from corrosion-resistant AISI 316L stainless steel with FKM seals, ensuring durability in demanding industrial environments whilst meeting EC Regulation 1935/2004 standards for food-contact applications.
The compact cartridge format simplifies installation and replacement within modular manifold blocks, reducing downtime and minimising leak points. Each box contains two units, offering convenient stock management. Suitable for food and beverage processing, pharmaceutical manufacturing, industrial automation, and laboratory instrumentation where hygiene and material compatibility are paramount.
Specifications
| Maximum Operating Pressure | 30 barg |
|---|---|
| Temperature Range | -20°C to +120°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Weight | 0.006 kg |
| For Fluid Type | Air (Compressed Air) for TL Cartridge., Industrial Fluids for LF Cartridges. See Corresponding Chapters. |
| Product Type | Metal Cartridges for Fluids and Gases |
| Quantity per Box | 2 |
| Connection 2 Tube Outside Diameter | 4 mm (O.D.) |
| Specifications Met | RoHS 2011/65/EC, ASTM B733-04: Self-catalytic Nickel Coating, ATEX DI: 94/9/EC, USDA NSF H1 (Grease), PED DI: 97/23/CE (TL), FDA 21 CFR, PED DI: 97/23/CE (LF 3600, LF 3800, LF 3900), EC RG: 1935/2004 (minimum flow 0.02 l/hr) |
| Application | Pneumatics, Automotive Process, Refrigeration, Packaging, Robotics, Semiconductor, Vacuum |
| Shape | Cartridge |
| Vacuum Pressure Rating | n/a |
